Clutch And Band Chart
Clutch And Band Chart

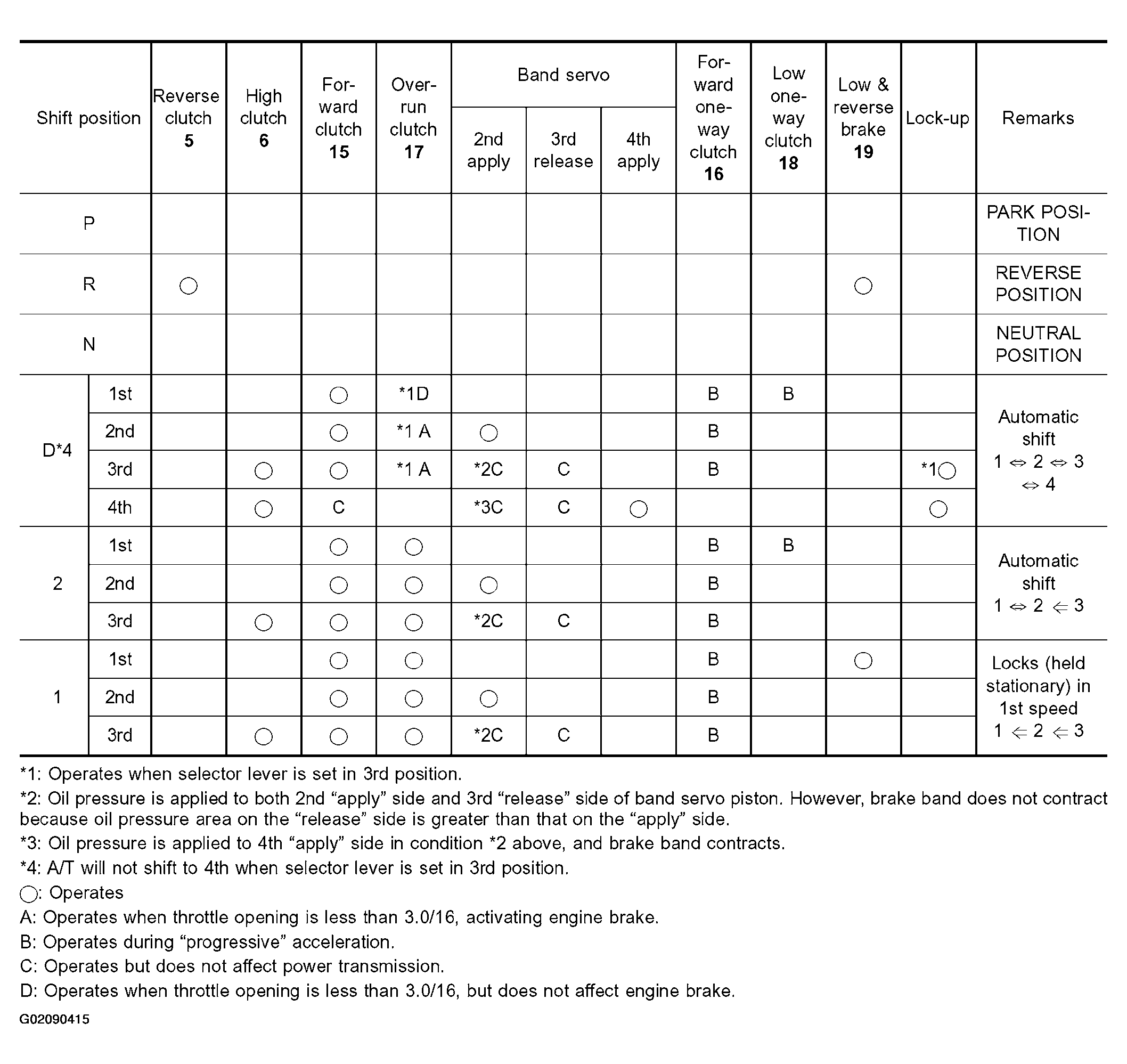

Fig 1: Identifying Clutch & Band Chart Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
