Data Monitor Mode (A/T)

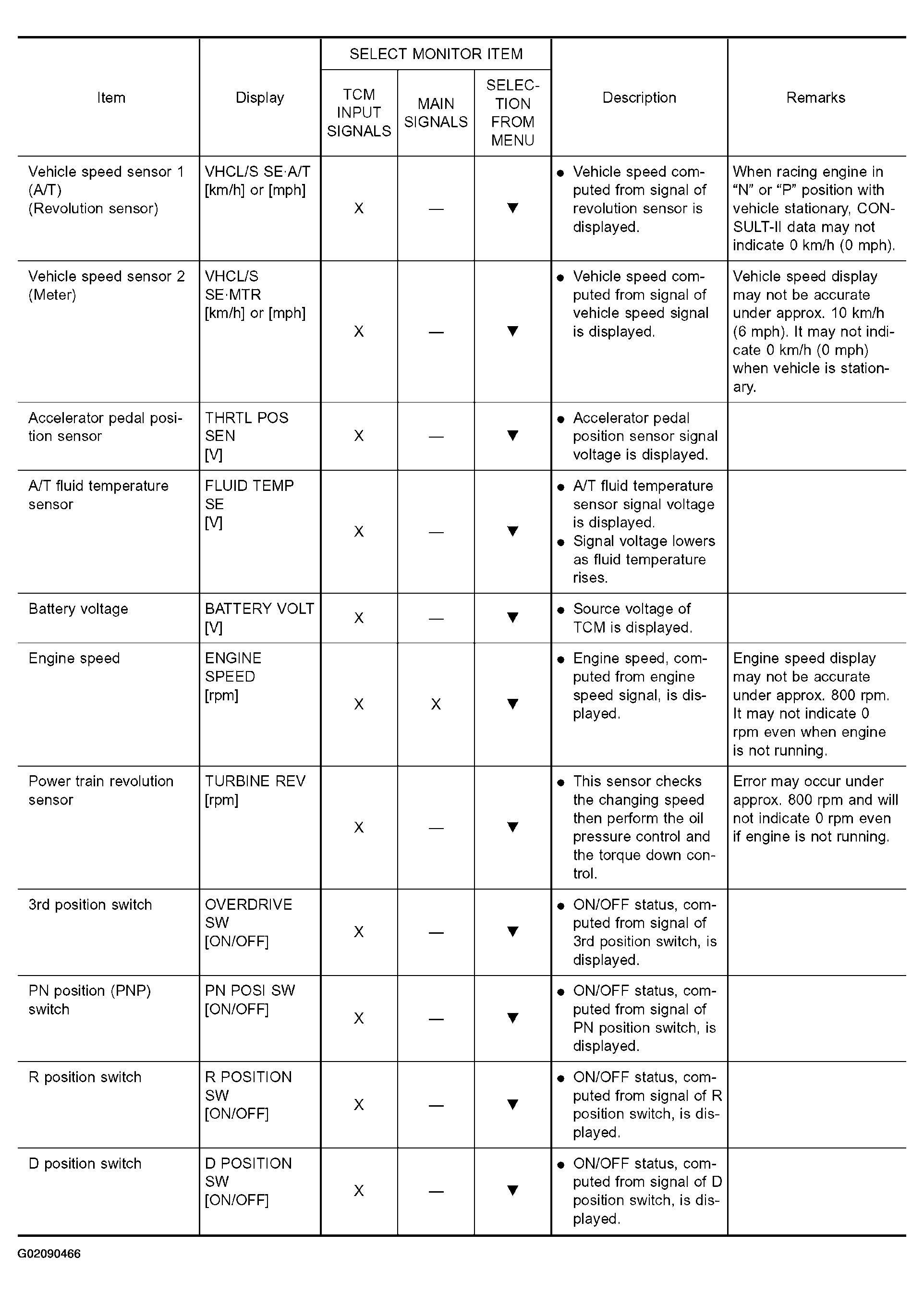

Fig 1: Identifying Self-Diagnostic Result Test Mode Table (3 of 6)
G02090466Courtesy of NISSAN MOTOR CO., U.S.A.

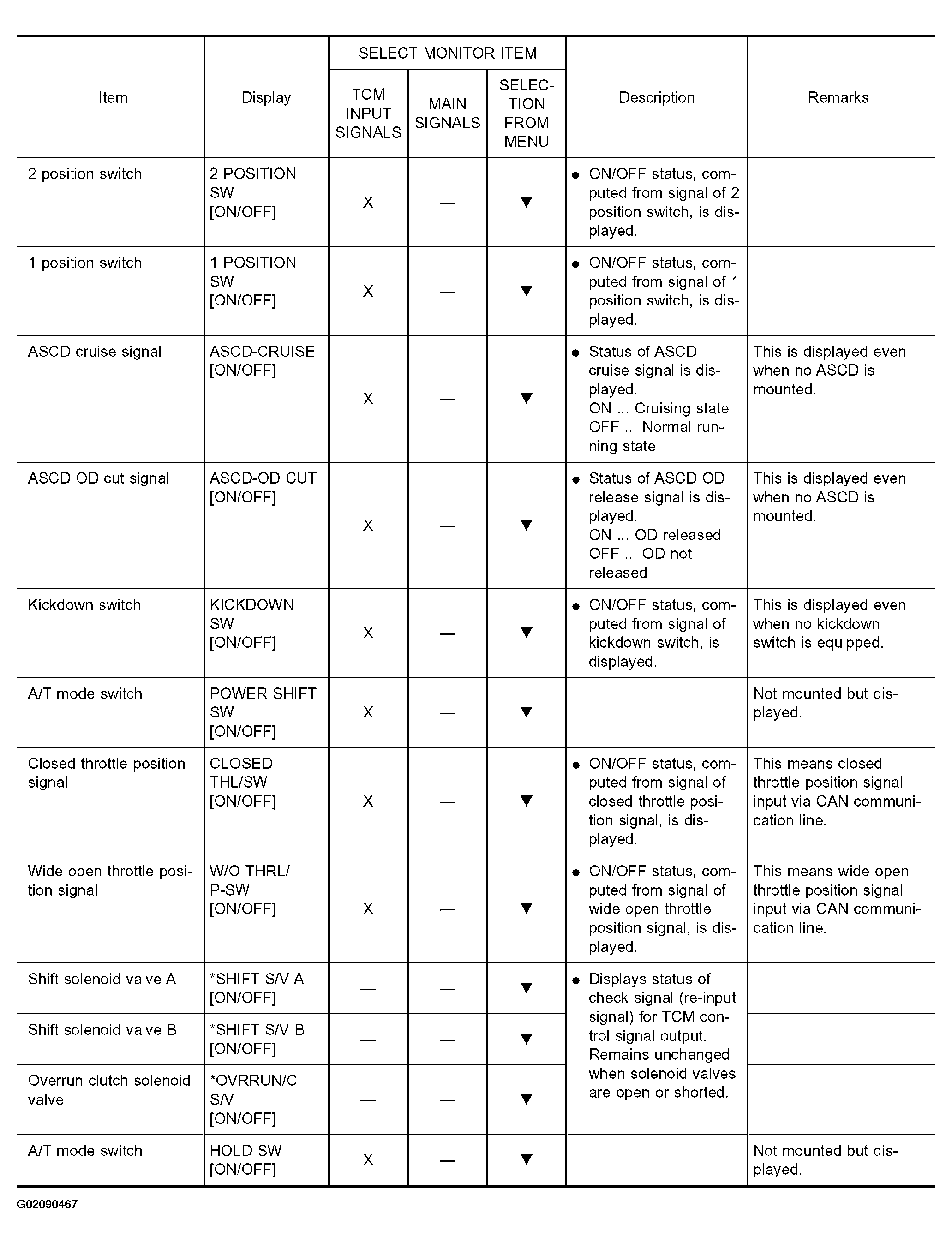

Fig 2: Identifying Self-Diagnostic Result Test Mode Table (4 of 6)
G02090467Courtesy of NISSAN MOTOR CO., U.S.A.

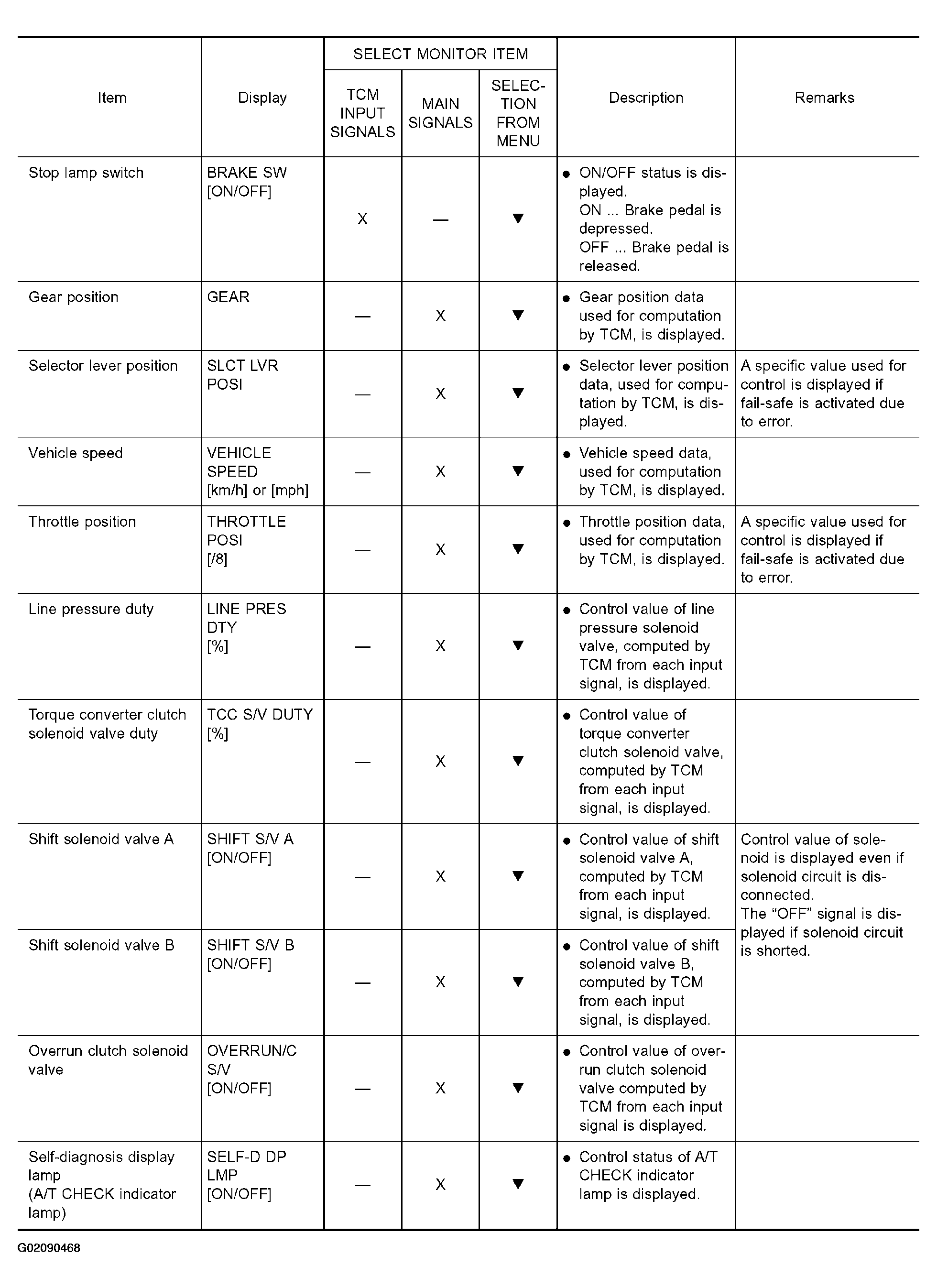

Fig 3: Identifying Self-Diagnostic Result Test Mode Table (5 of 6)
G02090468Courtesy of NISSAN MOTOR CO., U.S.A.

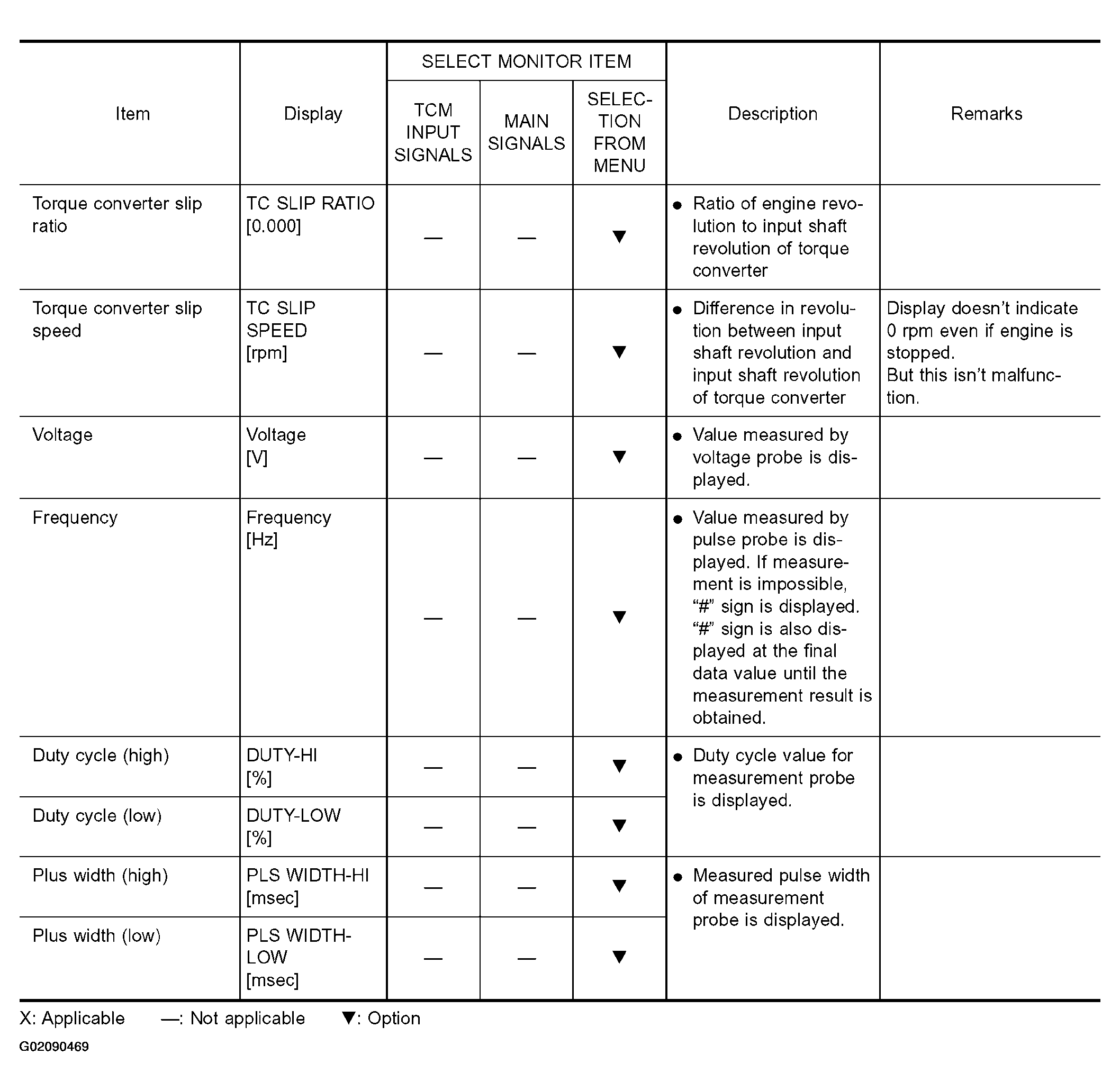

Fig 4: Identifying Self-Diagnostic Result Test Mode Table (6 of 6)
G02090469Courtesy of NISSAN MOTOR CO., U.S.A.
