CONSULT-II Setting Procedure

  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to Data link connector, which is located in left side dash panel.
    Fig 1: Identifying DTC Work Support Mode With Consult-II
    G02090470Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON.
  4. Touch "START (NISSAN BASED VHCL)".
    Fig 2: Displaying Start (Nissan Based VHCL) With Consult II Sheet
    G02090471Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "A/T". If "A/T" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .
    Fig 3: Displaying Consult-II Data Link Connector (DLC) Circuit Sheet
    G02090472Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DTC WORK SUPPORT".

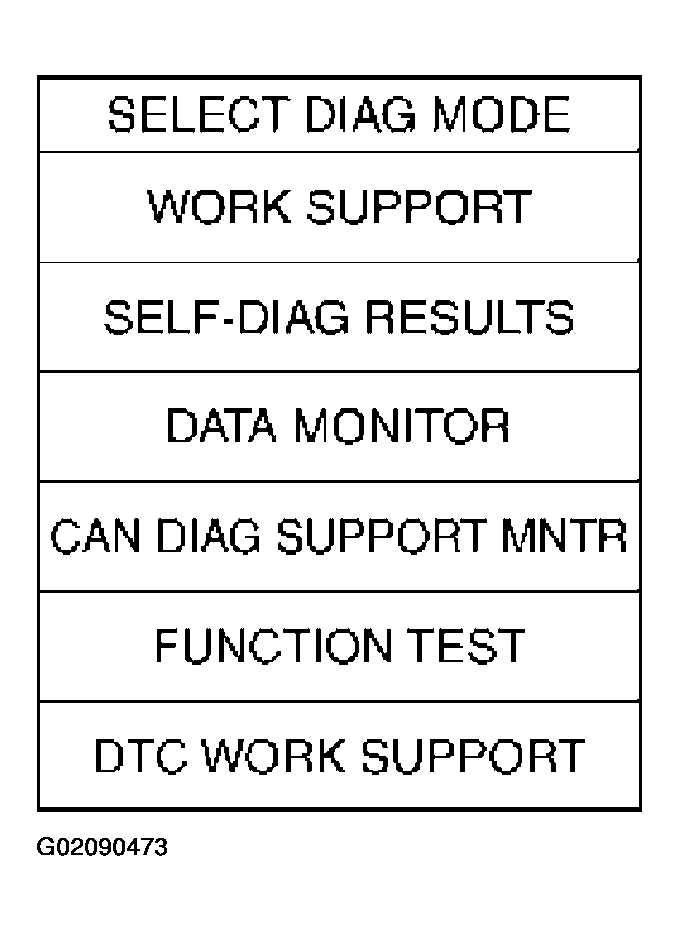

    Fig 4: Displaying Touch DTC Work Support Sheet
    G02090473Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch select item menu (1st, 2nd , etc.).
    Fig 5: Displaying Touch Select Item Menu (1st, 2nd , Etc.) Sheet
    G02090474Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Touch "START".
    Fig 6: Displaying Touch Start Sheet
    G02090475Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".
    Fig 7: Displaying Out Of Condition 1st GR FNTCN P0731 Sheet
    G02090476Courtesy of NISSAN MOTOR CO., U.S.A.
    • When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING".
      Fig 8: Displaying Testing 1st GR FNTCN P0731 Sheet
      G02090477Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".
    Fig 9: Displaying Stop Vehicle 1st GR FNTCN P0731 Sheet
    G02090478Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 10: Displaying NG Vehicle 1st GR FNTCN P0731 Sheet
    G02090479Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Perform test drive to check gear shift feeling in accordance with instructions displayed.

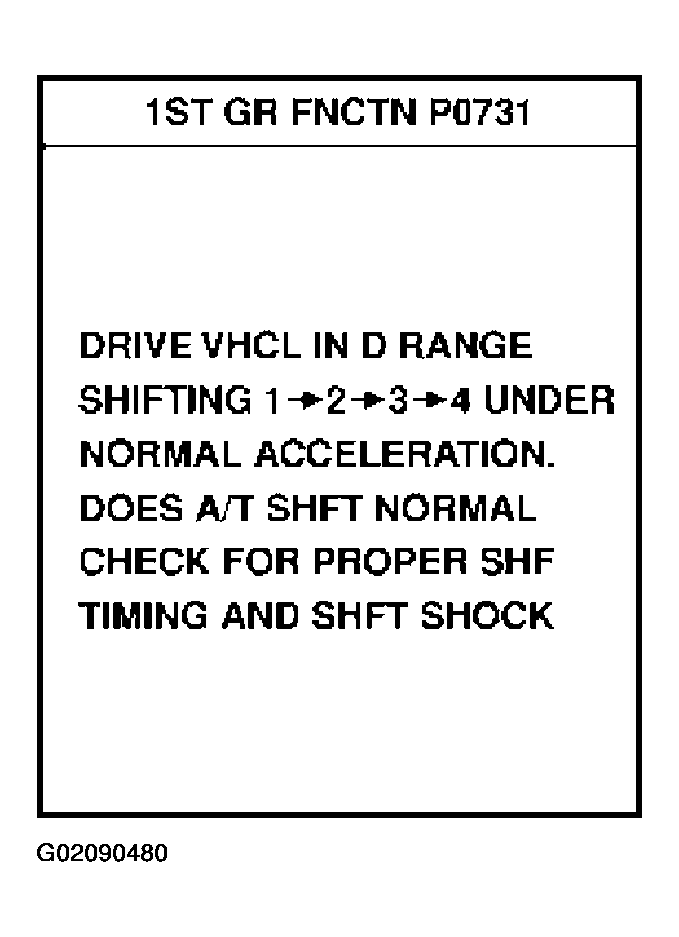

    Fig 11: Displaying 1st GR FNTCN P0731 Sheet
    G02090480Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Touch "YES" or "NO".

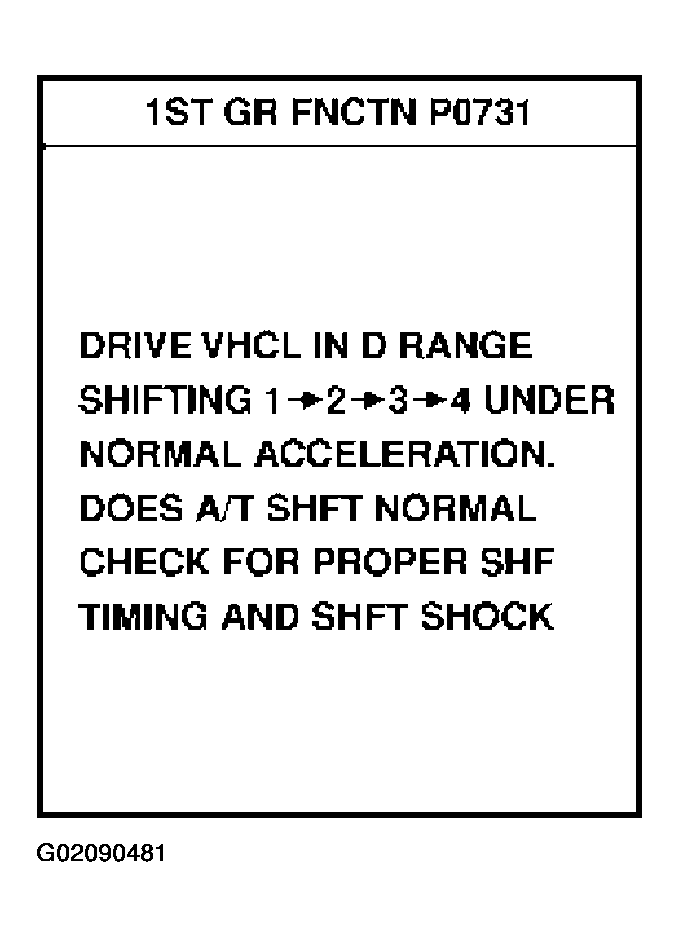

    Fig 12: Displaying 1st GR FNTCN P0731 Sheet
    G02090481Courtesy of NISSAN MOTOR CO., U.S.A.
  13. CONSULT-II procedure ended.

    If "NG" appears on the screen, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".

    Fig 13: Displaying OK 1st GR FNTCN P0731 Sheet
    G02090482Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 14: Displaying NG 1st GR FNTCN P0731 Sheet
    G02090483Courtesy of NISSAN MOTOR CO., U.S.A.
