Diagnostic Procedure

Inspection Start
Do you have CONSULT-II?
1. Yes or No
Yes: GO TO 2.

No: GO TO 6.
Check Park/Neutral Position (PNP) Switch Circuit (With Consult-II)
With CONSULT-II
1. Turn ignition switch to ON position.
  (Do not start engine.)
2. Select "TCM INPUT SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
3. Read out P, R, N, D, 2nd and 1st position switches moving selector lever to each position. Check the signal of the selector lever position is indicated properly.

  Fig 1: Display Data Monitor Sheet With Consult-II
  Courtesy of NISSAN MOTOR CO., U.S.A.
1. OK or NG
OK: GO TO 7.

NG: GO TO 3.
Detect Malfunctioning Item
Check the following item:
- Park/neutral position (PNP) switch
Check continuity between PNP switch harness connector F94 terminals 1 (G/OR) and 2 (B) and between terminals 3 (OR) and 4 (PU/W), 5 (P/B), 6 (Y/PU), 7 (BR), 8 (G/W), 9 (GY/R) while moving manual shaft through each position.

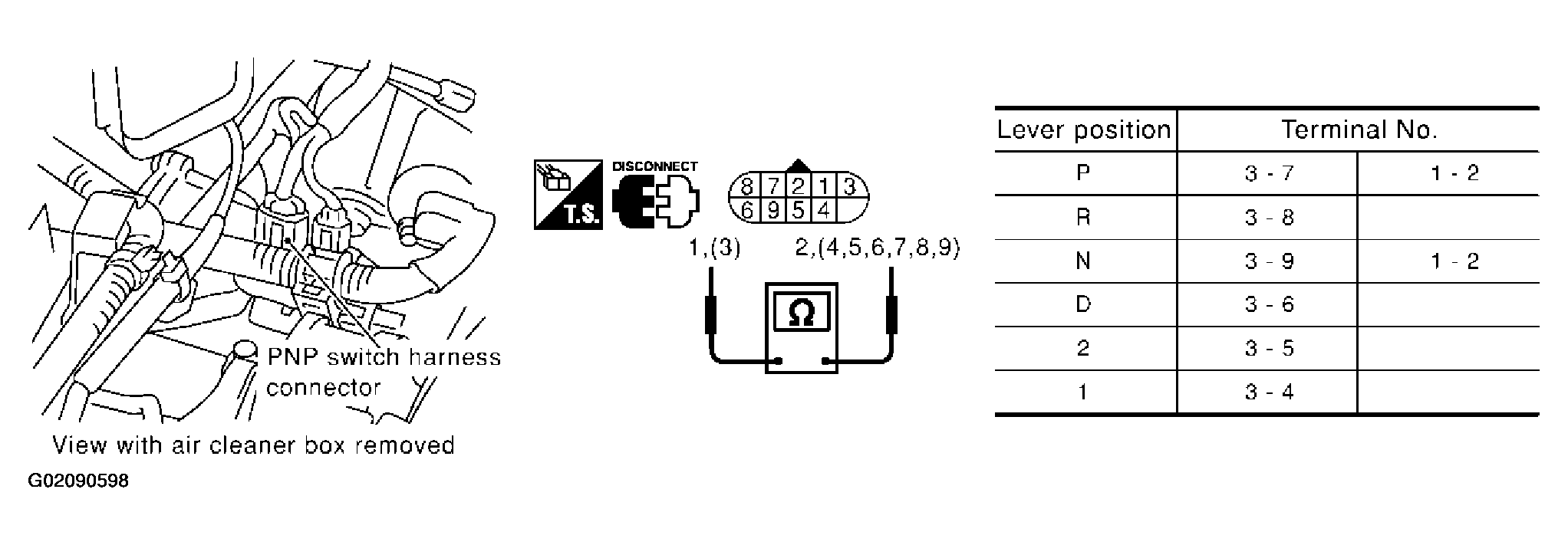

Fig 2: Identifying PNP Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
1. OK or NG
OK: GO TO 5.

NG: GO TO 4.
Check Manual Control Cable Adjustment
Check PNP switch again with manual control cable disconnected from manual shaft of A/T assembly. Refer to test group 2 (With CONSULT-II) or 6 (Without CONSULT- II).
1. OK or NG
OK: Adjust manual control cable. Refer to CONTROL CABLE ADJUSTMENT .

NG: Repair or replace PNP switch.
Detect Malfunctioning Item
Check the following items:
- Harness for short or open between ignition switch and park/neutral position (PNP) switch
- Harness for short or open between park/neutral position (PNP) switch and TCM
- Fuse
- Joint connector-3 M29
- Ignition switch
  Refer to POWER DISTRIBUTION .
1. OK or NG
OK: GO TO 7.

NG: Repair or replace damaged parts.
Check Park/Neutral Position (PNP) Switch Circuit (Without Consult-Ii)
Without CONSULT-II
1. Turn ignition switch to ON position. (Do not start engine.)
2. Check voltage between TCM harness connector F50 terminals 26 (PU/R), 27 (P/B), 34 (Y/PU), 35 (G/W), 36 (R/G) and ground while moving selector lever through each position.

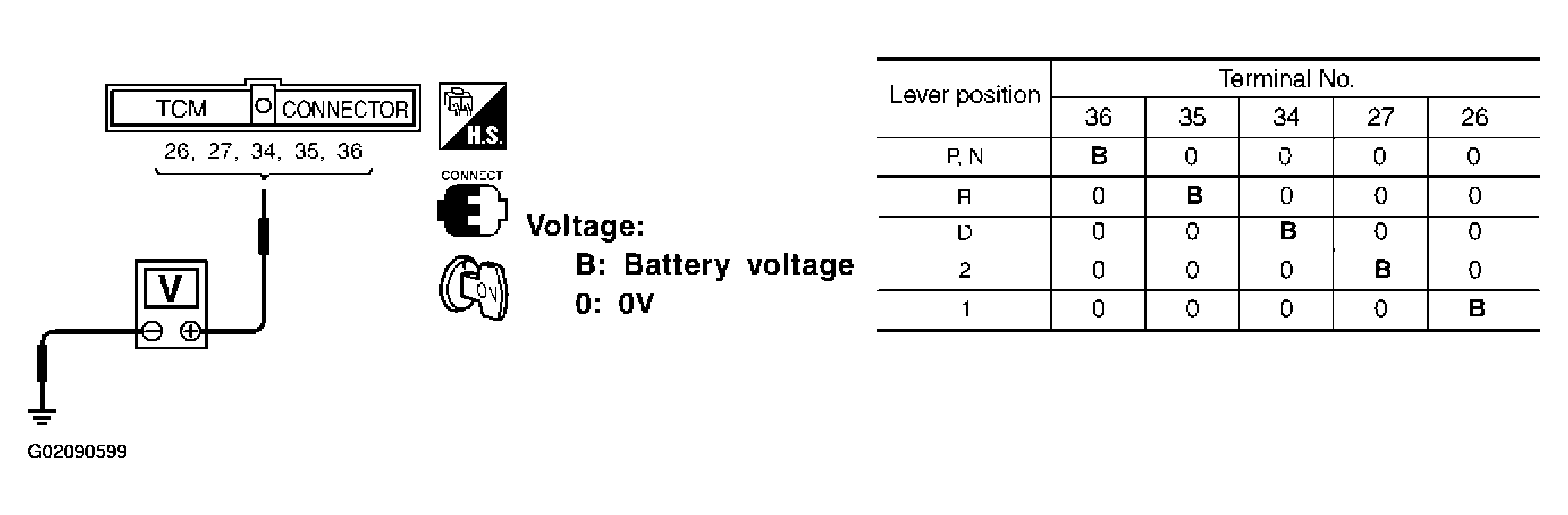

  Fig 3: Checking PARK/NEUTRAL Position Switch Circuit Voltage
  Courtesy of NISSAN MOTOR CO., U.S.A.
1. OK or NG
OK: GO TO 7.

NG: GO TO 3.
Check DTC
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE .
1. OK or NG
OK: Inspection End

NG: GO TO 8.
Check TCM Inspection
1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
1. OK or NG
OK: Inspection End

NG: Repair or replace damaged parts.
