Steering Column

Remove key interlock cable.

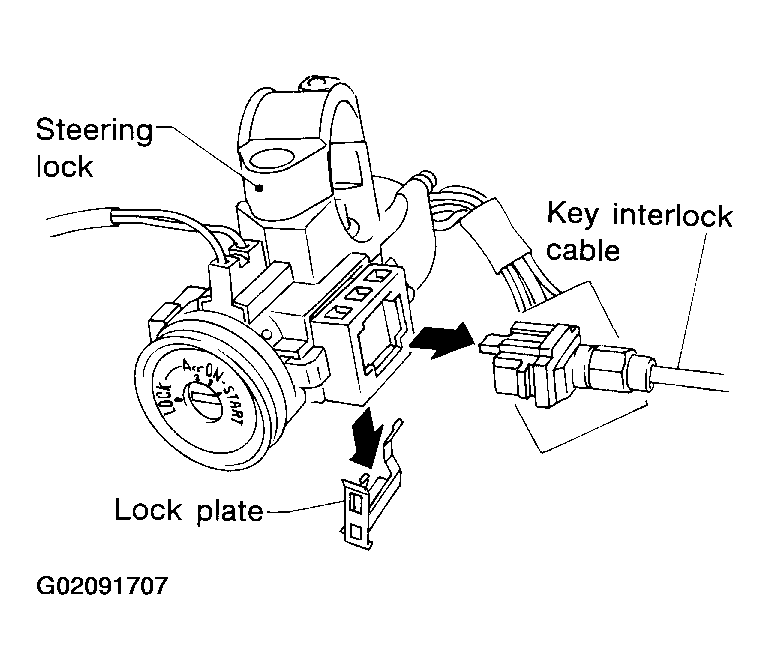

Fig 1: Removing Key Interlock Cable & Lock Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
When installing steering column, finger tighten all lower bracket and clamp retaining bolts; then tighten them securely. Do not apply undue stress to steering column.
When attaching coupling joint, be sure tightening bolt faces cutout portion.

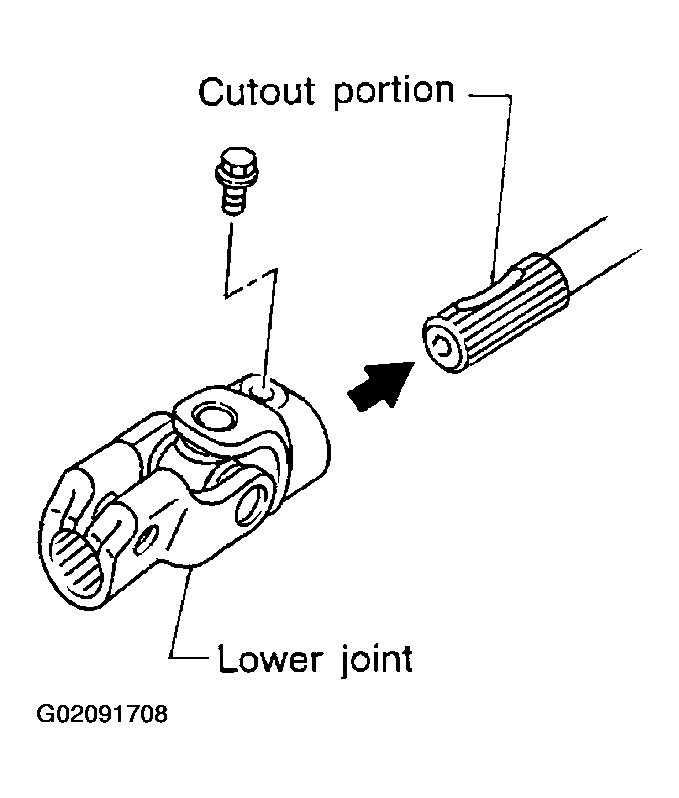

Fig 2: Attaching Coupling Joint & Steering Column
Courtesy of NISSAN MOTOR CO., U.S.A.
Align slit of lower joint with projection on dust cover. Insert joint until surface A contacts surface B.

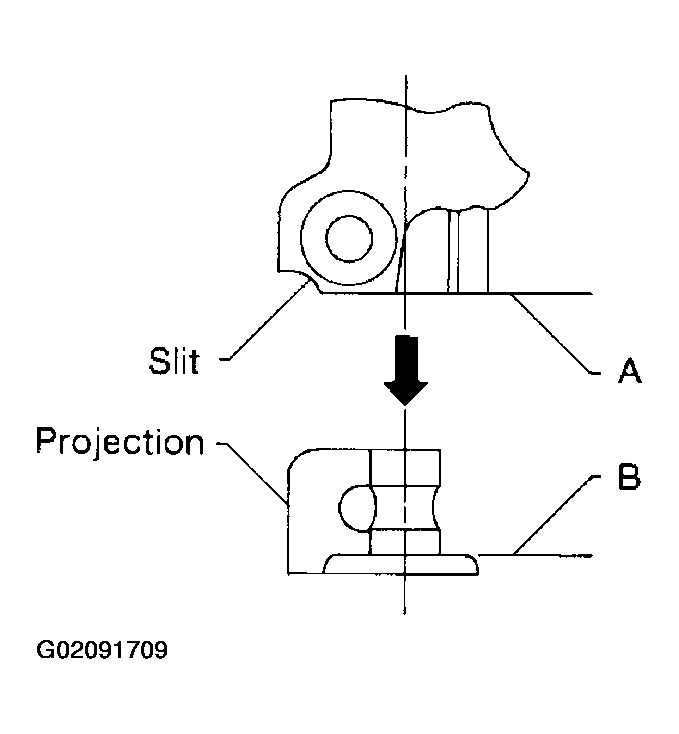

Fig 3: Aligning Slit Of Lower Joint & Projection On Dust Cover
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: After installation, turn steering wheel to make sure it moves smoothly. Ensure the number of turns are the same from the straight forward position to left and right locks. Be sure that the steering wheel is in a neutral position when driving straight ahead.
