Pre-Disassembly Inspection

Disassemble the power steering oil pump only if the following items are found.

• Oil leak from any point shown in Fig 1.

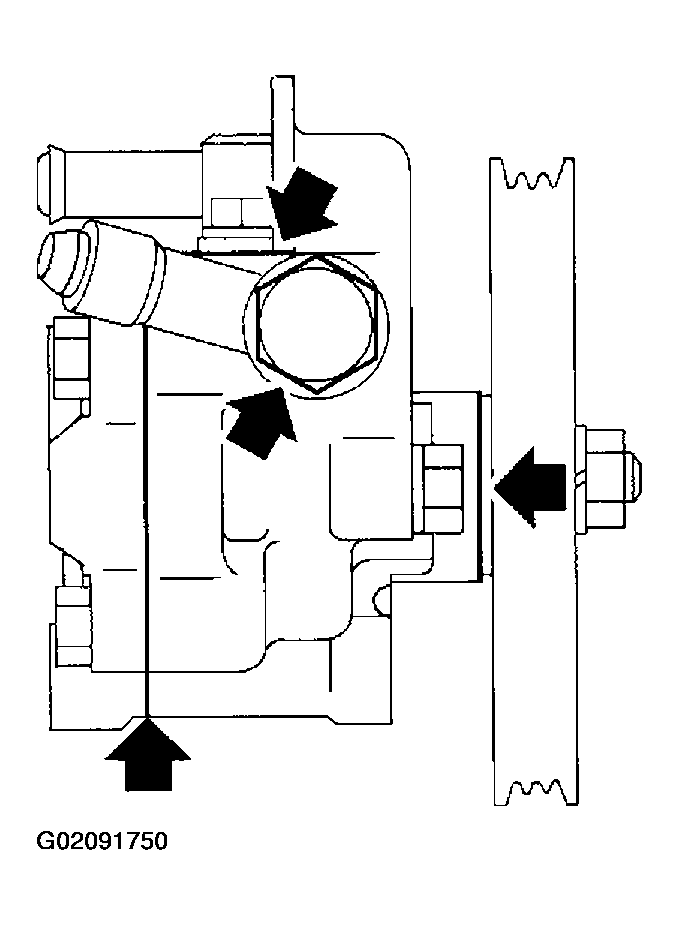

  Fig 1: Locating Oil Leakage Points

  Courtesy of NISSAN MOTOR CO., U.S.A.
• Deformed or damaged pulley
• Poor performance
