Removal And Installation

CAUTION: Replace anchor bolts if they are deformed or worn out.

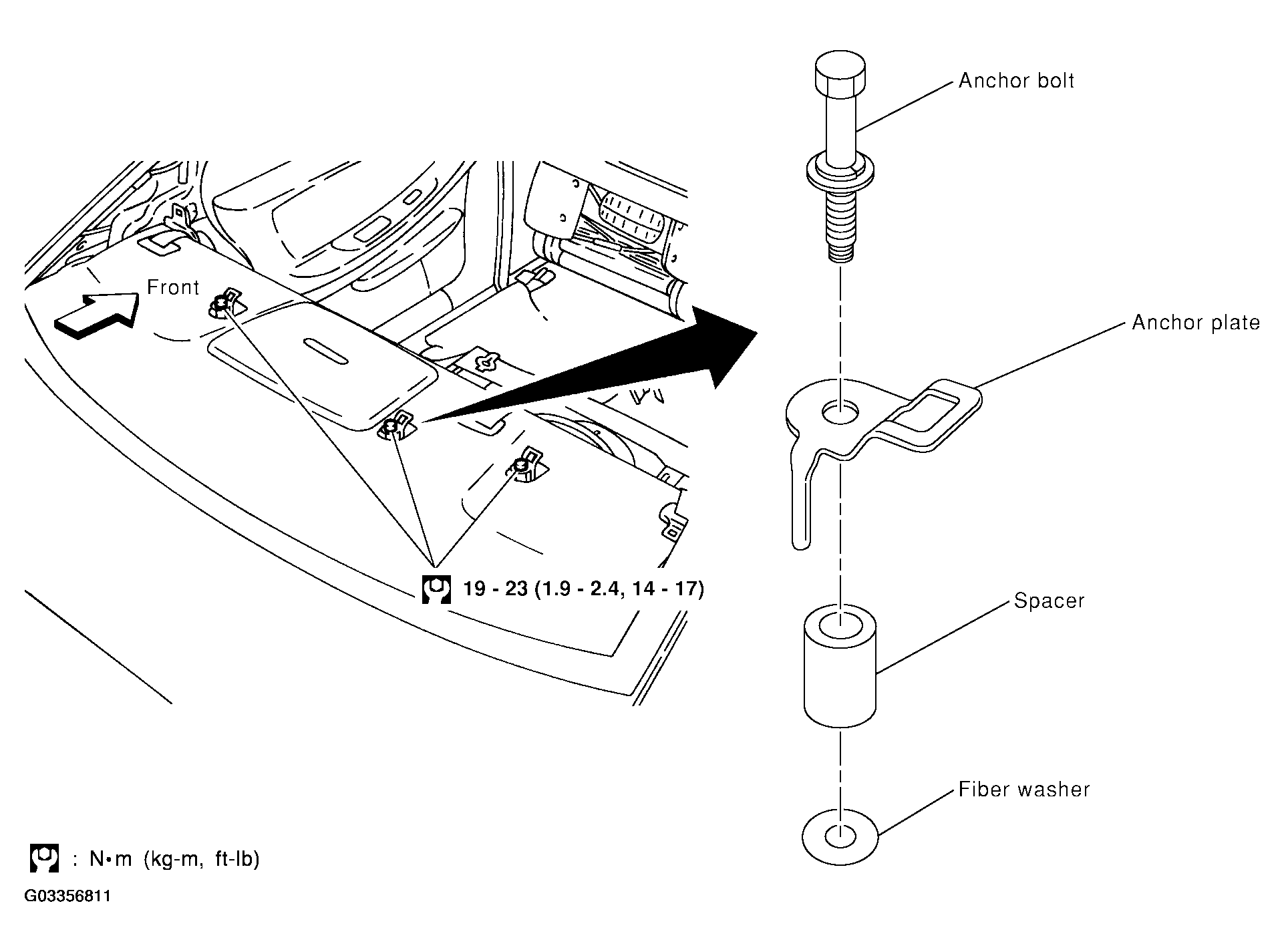

Fig 1: Replacing Anchor Bolts (If They Are Deformed Or Worn Out)

G03356811

Courtesy of NISSAN MOTOR CO., U.S.A.

Remove tether anchor plate cover. Refer to SIDE AND FLOOR TRIM in BODY & TRIM -- EXTERIOR & INTERIOR - I35 article for details.
Remove tether anchor plate.

NOTE:

To install, reverse the removal procedure sequence.
