CONSULT-II Inspection Procedure

WARNING: This page is about a different car, the 2004 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

Turn the ignition switch OFF".
Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.

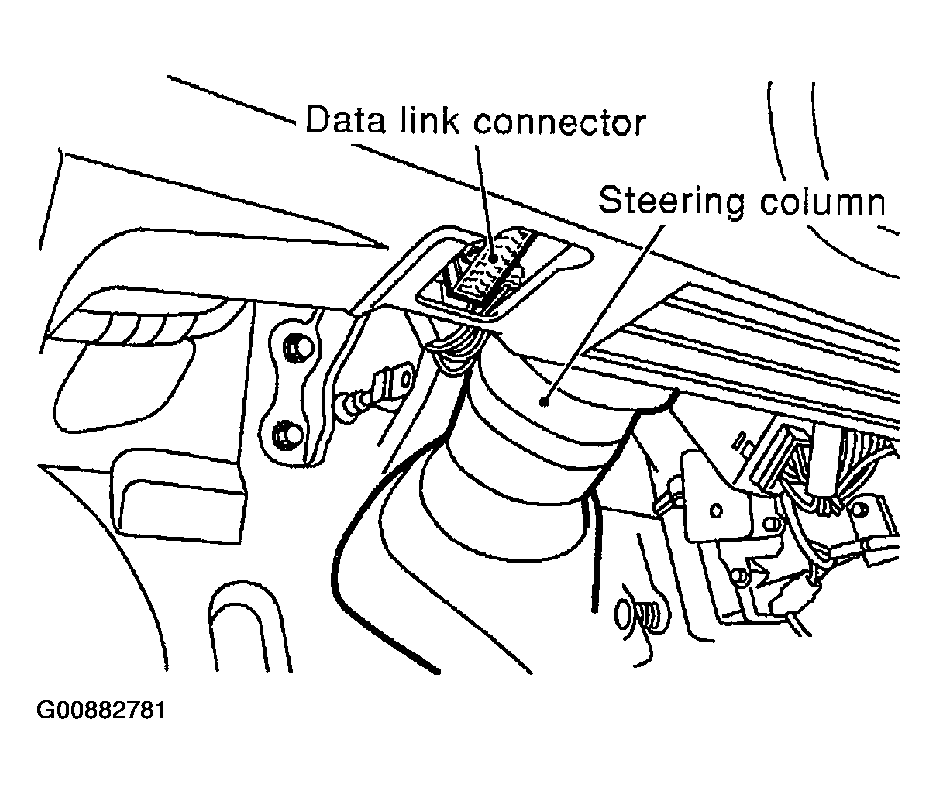

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch START (NISSAN BASED VHCL).

Fig 2: Identifying START (NISSAN BASED VHCL) Selection
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch SMART ENTRANCE.

Fig 3: Identifying SMART ENTRANCE Selection
Courtesy of NISSAN MOTOR CO., U.S.A.

If SMART ENTRANCE is not indicated, go to CONSULT II START PROCEDURE .
Perform each diagnostic item according to DIAGNOSTIC ITEMS APPLICATION .

Fig 4: Identifying SELECT TEST ITEM Screen

Courtesy of NISSAN MOTOR CO., U.S.A.
