Performance Test: Notes

WARNING: This page is about a different car, the 2004 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

Test Condition

Testing must be performed as follows:

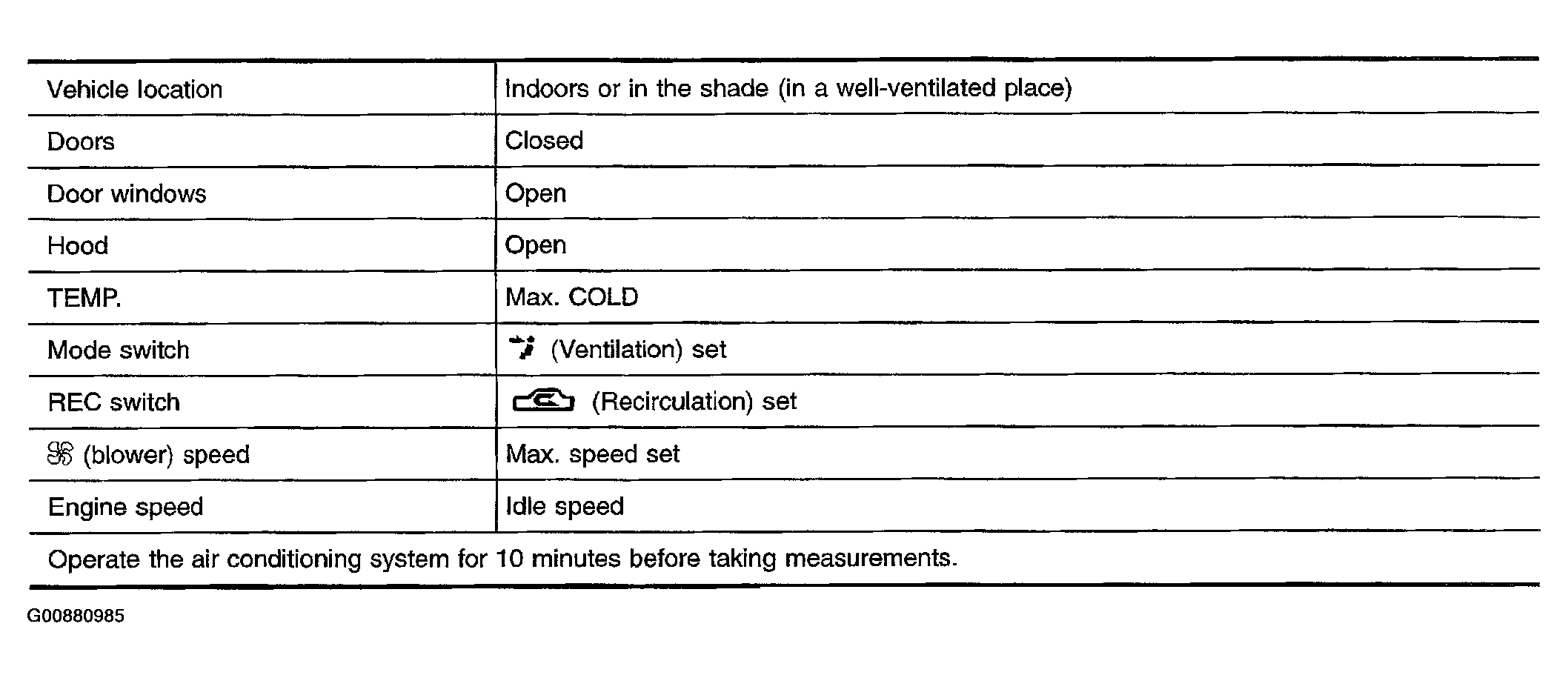

Fig 1: Test Condition Chart
G00880985Courtesy of NISSAN MOTOR CO., U.S.A.

Test Reading

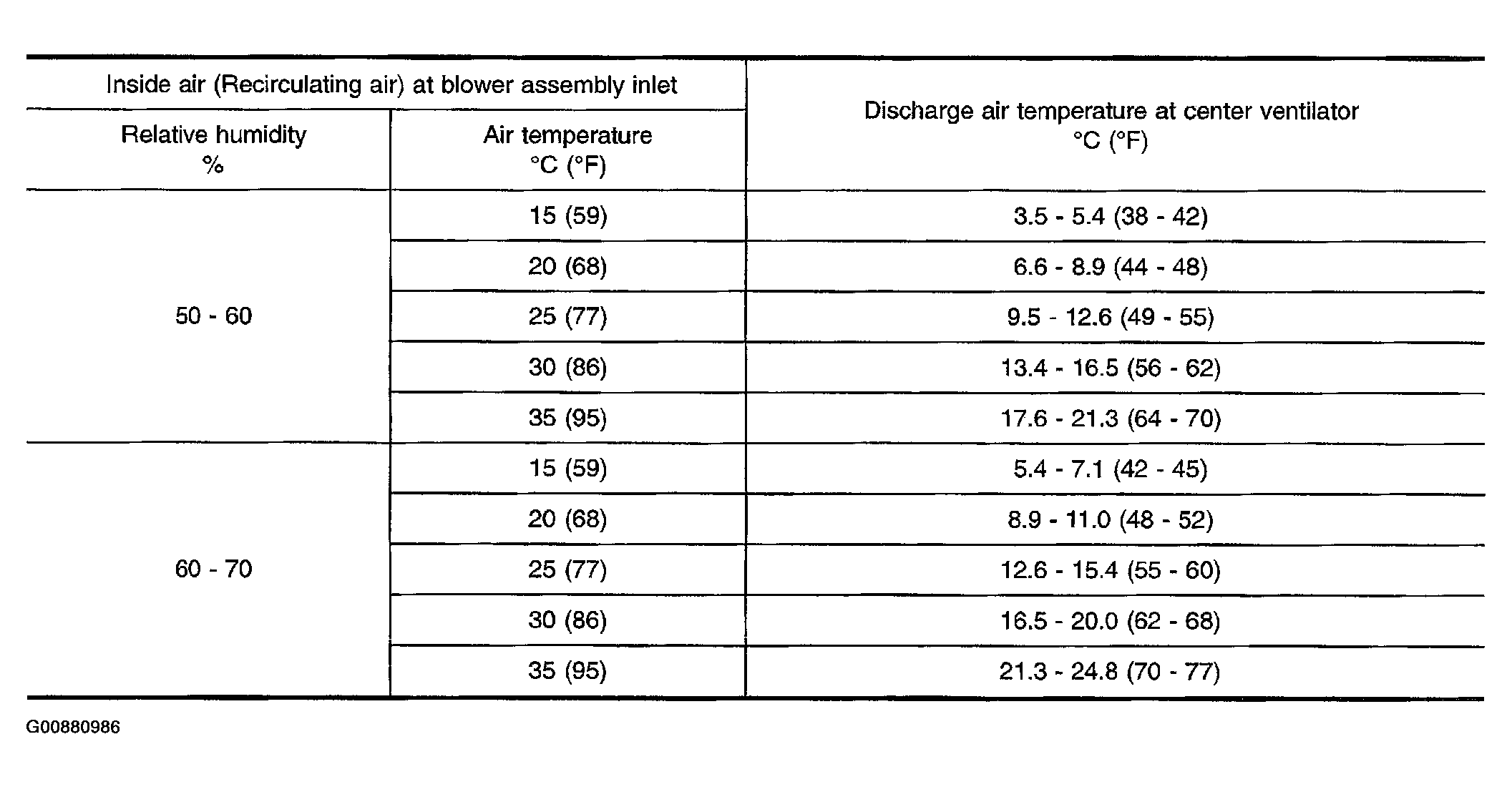

Recirculating-to-discharge Air Temperature Table

Fig 2: Performance Test Table
G00880986Courtesy of NISSAN MOTOR CO., U.S.A.
