Trouble Diagnoses With Battery/Starting/Charging System Tester

CAUTION: When working with batteries, always wear appropriate eye protection.

NOTE:

To ensure a complete and thorough diagnosis, the battery, starter and alternator test segments must be done as a set from start to finish.
If battery surface charge is detected while testing, the tester will prompt you to turn on the headlamps to remove the surface charge.
If necessary, the tester will prompt you to determine if the battery temperature is above or below 0°C (32°F). Choose the appropriate selection by pressing the up or down arrow button, then press "ENTER" to make the selection.

Turn off all loads on the vehicle electrical system. Clean or repair as necessary.
Visually inspect the battery, battery terminals and cable ends with ignition switch in "OFF" position.

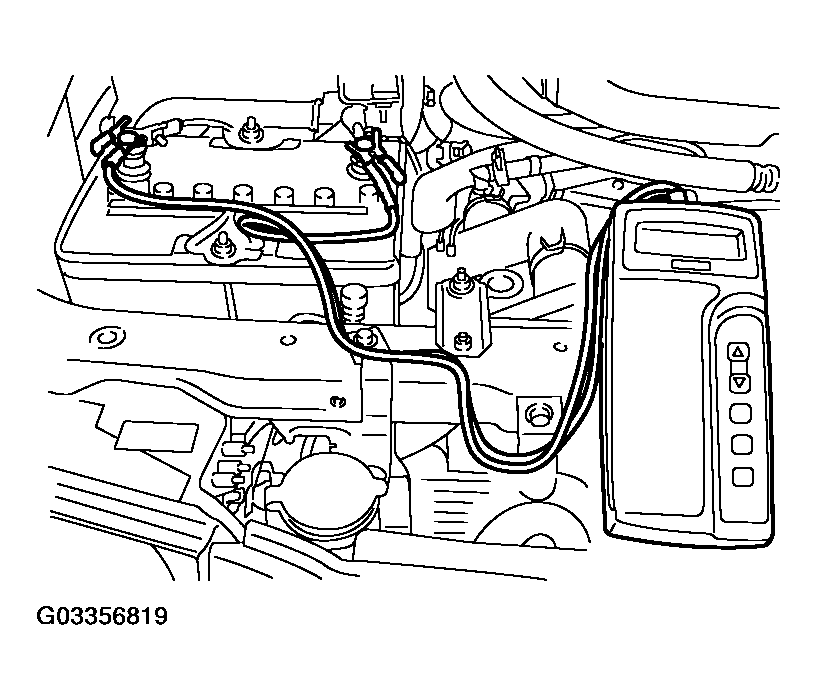

Fig 1: Connecting Tester To Battery Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: The contact surface between the battery terminals, cable ends and tester leads must be clean for a valid test. A poor connection will prevent testing and a "CHECK CONNECTION" message will appear during the test procedures. If this occurs, clean the battery post and terminals, reconnect them and restart the test.
Connect the red tester lead clamp to the positive battery terminal, and the black to the negative terminal.
The tester will turn on automatically. Using the arrow keys, select "IN VEHICLE" on the tester and then press the "ENTER" key.

Fig 2: Selecting Test In-Vehicle - Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Locate the battery type and rating stamped or written on the top case of the battery to be tested.
NOTE: The battery type and rating will have either of the following.

CCA : Cold Cranking Amps (490 CCA, 550 CCA, etc.)

JIS : Japanese Industrial Standard.

Battery is stamped with a number such as:

80D26L: 80 (rank of output), D (physical size-depth), 26 (width in cm). The last character L (post configuration) is not input into the tester.

The tester requires the rating for the battery be entered exactly as it is written or stamped on the battery. Do not attempt a CCA conversion for JIS stamped batteries. JIS must be input directly.

Fig 3: Select Input Test Using: CCA And JIS - Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Using the arrow and "ENTER" keys alternately, select the battery type and rating.
NOTE: The tester lists five choices; CCA, JIS, IEC, DIN, and EN. Only use CCA or JIS.

Fig 4: Good Battery - Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Press "ENTER" to begin the test. Diagnosis results are displayed on the tester. Refer to "DIAGNOSTIC RESULT ITEM CHART ".
Press "ENTER", then test output code is displayed. Record the test output code on the repair order.

Fig 5: Battery Code - Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Toggle back to the "DIAGNOSTIC SCREEN" for test results.

NOTE:

If necessary, the tester will ask the user to determine if the battery has just been charged. Choose the appropriate selection by pressing the up or down arrow button and then press the "ENTER" button to make the selection.
When testing a battery installed in a vehicle that has recently been driven, select "BEFORE CHANGE".
If the battery has just been slow charged due to a "CHARGE & RETEST" decision by the tester, and the tester asks the user "BEFORE CHARGE/AFTER CHARGE", select "AFTER CHARGE".

DIAGNOSTIC RESULT ITEM CHART

Diagnostic item	Service procedure
GOOD BATTERY	Battery is OK, go to "TROUBLE DIAGNOSES ", "STARTING SYSTEM ".
REPLACE BATTERY Replace battery.	Before replacing battery, clean the battery cable clamps and battery posts. Perform battery test again with Battery/Starting/Charging system tester. If second test result is "Replace Battery", then do so. Perform battery test again to confirm repair.
BAD CELL-REPLACE	Replace the battery. Perform battery test again with Battery/Starting/Charging system tester to confirm repair.
GOOD-RECHARGE	Perform the slow battery charging procedure. (Initial rate of charge is 10A for 12 hours.) Perform battery test again with Battery/Starting/Charging system tester.
CHARGE & RETEST	Perform the slow battery charging. (Initial rate of charge is 10A for 12 hours.) Perform battery test again with Battery/Starting/Charging system tester to confirm repair. NOTE: If the tester asks the user "BEFORE CHARGE/AFTER CHARGE", select "AFTER CHARGE".
