Removal And Installation: Removal

  1. Remove the center console.
  2. Disconnect the harness connector.
  3. Remove the mounting bolts, and remove the yaw rate/side G sensor.
CAUTION: Do not drop or strike the yaw rate/side G sensor, because it has little endurance against impact.

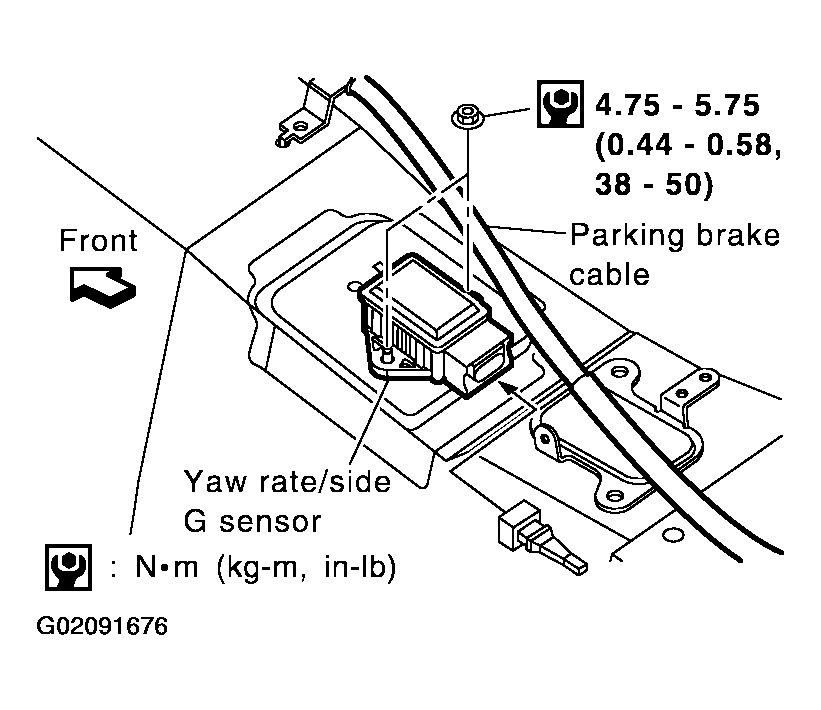

Fig 1: Locating Fasteners For Removal Of Yaw Rate/Side G Sensor
G02091676Courtesy of NISSAN MOTOR CO., U.S.A.
