Standards With CONSULT-II

CAUTION: The displayed item is the data calculated by the control unit, so it may indicate a normal value even if an output circuit (harness) is open or shorted.

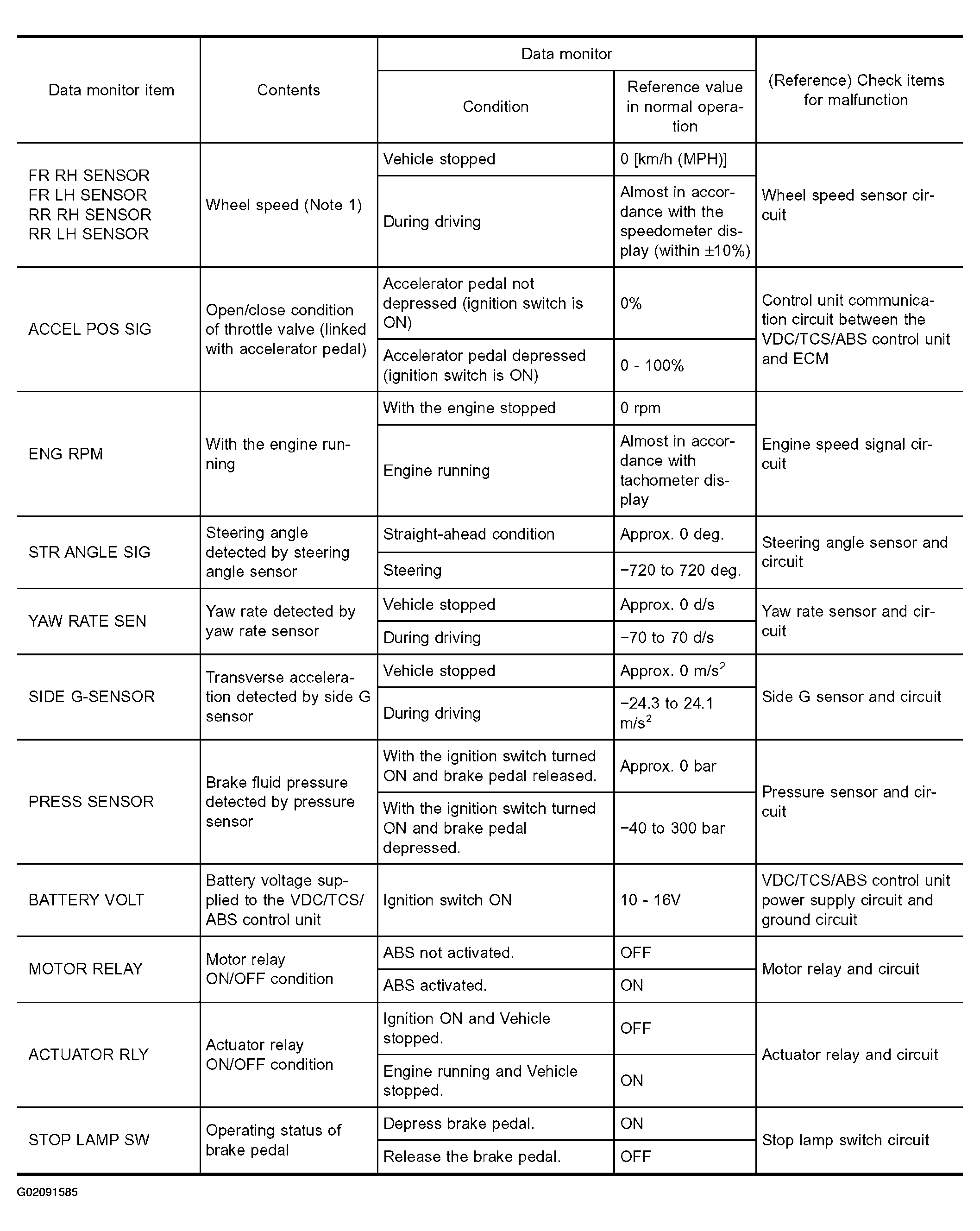

Fig 1: CONSULT-II Data Monitor Parameters (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

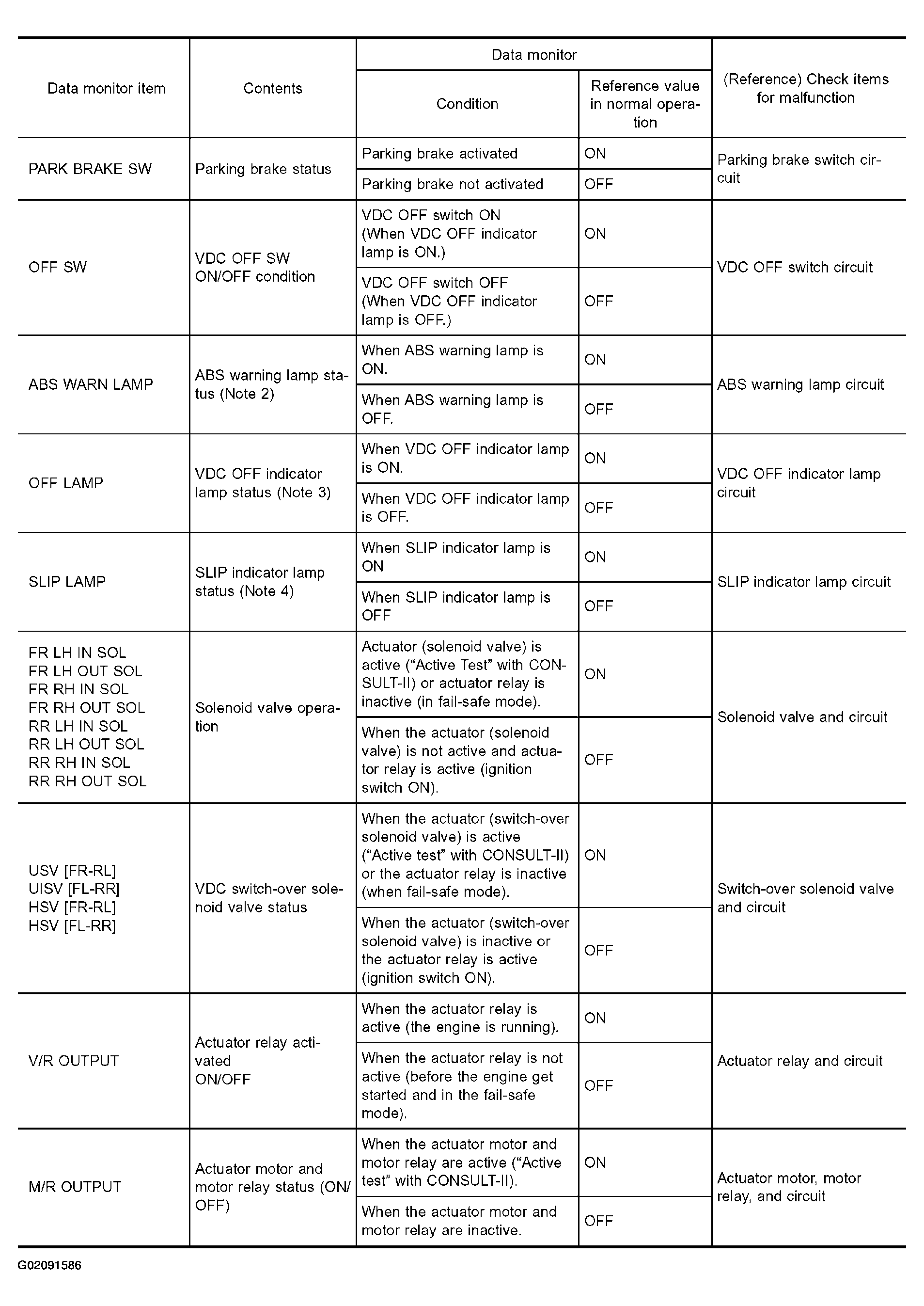

Fig 2: CONSULT-II Data Monitor Parameters (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

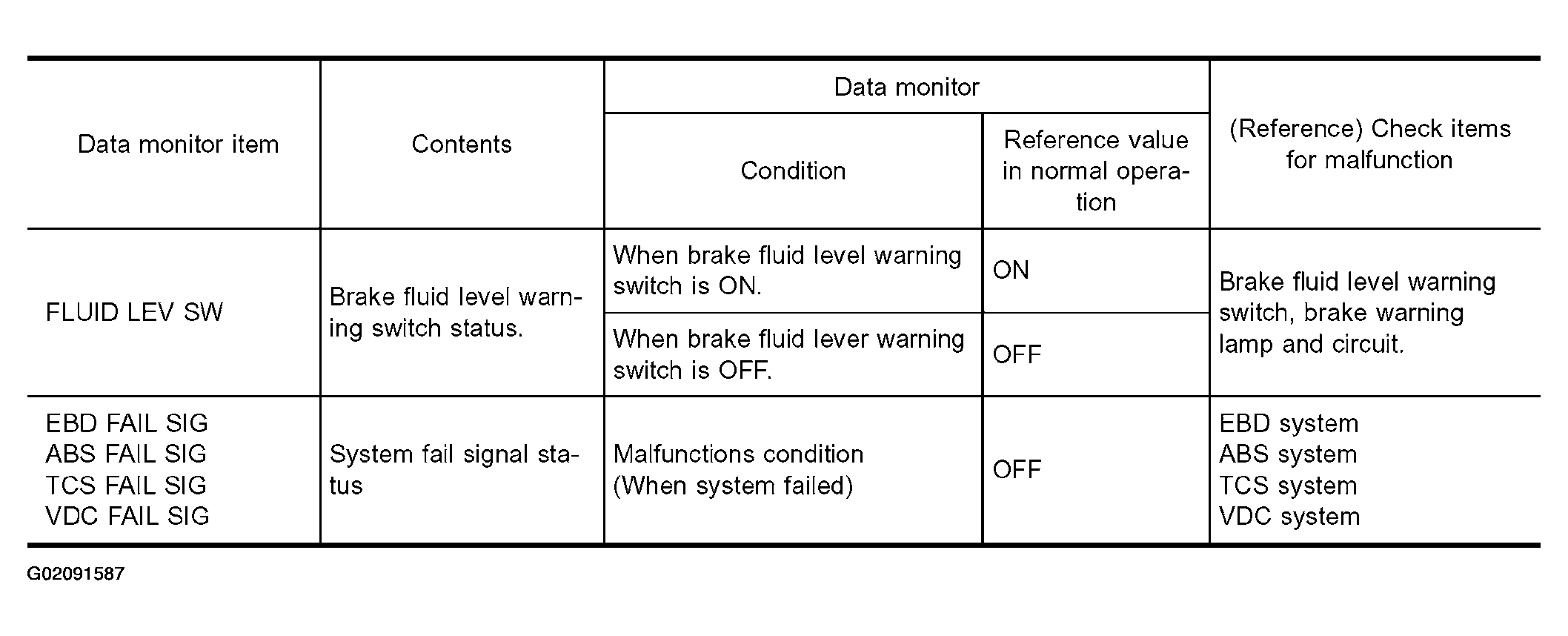

Fig 3: CONSULT-II Data Monitor Parameters (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Notes for Fig 1 through Fig 3 :

(Note 1): Check the pressure of the tire in normal condition.
(Note 2): ON/Off timing of the ABS warning lamp
1. ON: For approximately 0.5 seconds after the ignition switch is turned ON, or when a malfunction is detected.
2. Off: Approximately 0.5 seconds after the ignition switch is turned ON (when the system is in normal operation).
(Note 3): ON/Off timing of the VDC Off indicator lamp
1. ON: For approximately 0.5 seconds after the ignition switch is turned ON, or when a malfunction is detected VDC Off switch is ON.
2. Off: Approximately 0.5 seconds after the ignition switch is turned ON (when the system is in normal operation) or when VDC Off switch is Off.
(Note 4): SLIP indicator lamp ON/Off timing
1. ON: For approximately 0.5 seconds after the ignition switch is turned ON, or when a malfunction is detected.
2. Off: Approximately 0.5 seconds after the ignition switch is turned ON (when the system is in normal operation) and VDC/TCS function is not activated.
3. Flashing: VDC/TCS function is active during driving.
