Standards Using A Circuit Tester And Oscilloscope

CAUTION: Connect the connectors for the VDC/TCS/ABS control unit and actuator, and turn the ignition switch ON.

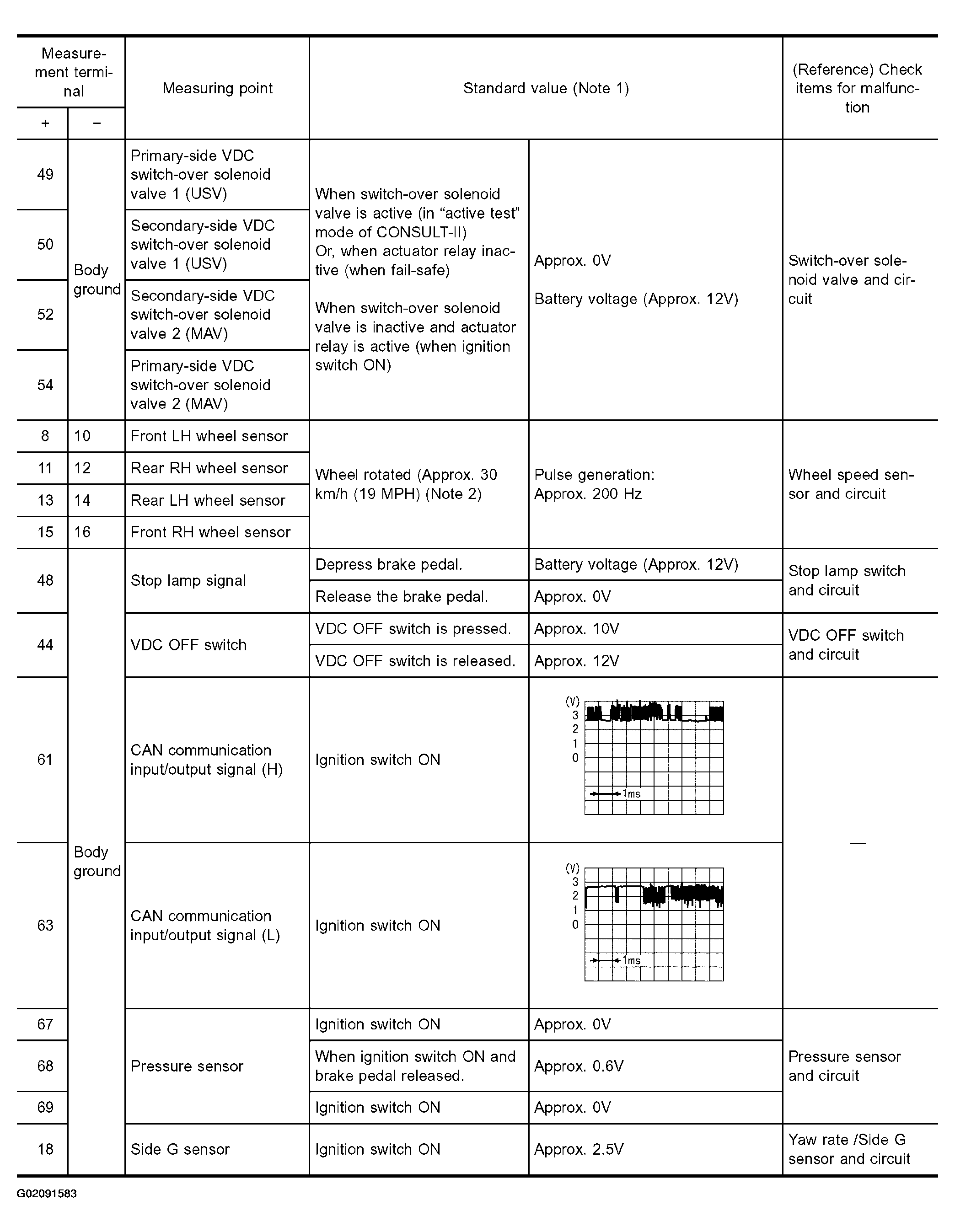

Fig 1: VDC Control Unit Terminal Specifications (1 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

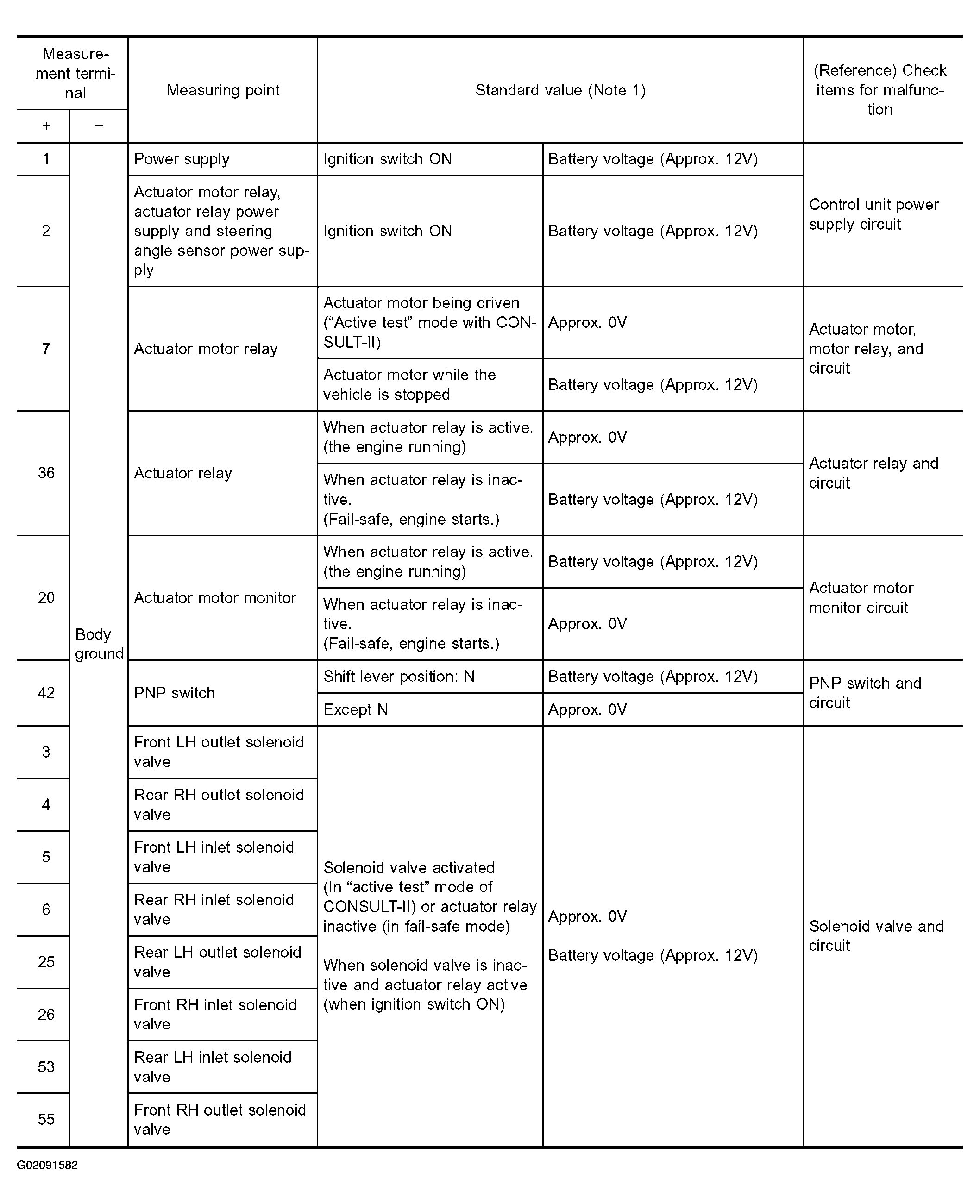

Fig 2: VDC Control Unit Terminal Specifications (2 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

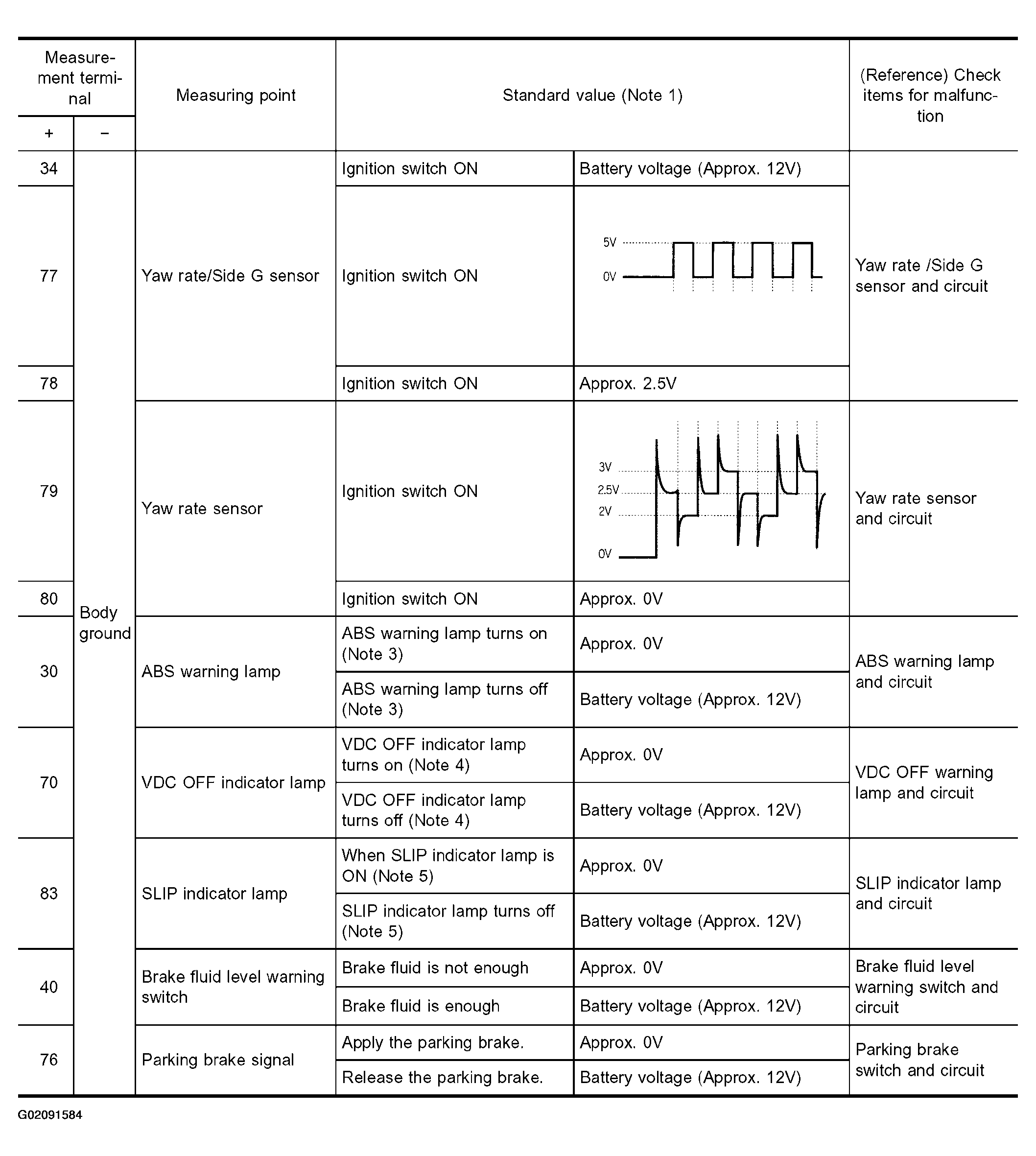

Fig 3: VDC Control Unit Terminal Specifications (3 of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Notes for Fig 1 through Fig 3 :

• (Note 1): When the standard value is checked using a circuit tester for voltage measurement, the connector terminals should not extend forcefully.
• (Note 2): Check the pressure of the tire in normal condition.
• (Note 3): ON/Off timing of the ABS warning lamp
  1. ON: When the ignition switch is turned ON (before engine start) or a malfunction is detected.
  2. Off: 2 seconds after the engine started (the system is in normal condition).
• (Note 4): VDC Off indicator lamp ON/Off timing
  1. ON: When the ignition switch is turned ON (before engine start) or a malfunction is detected, if the VDC Off switch is ON.
  2. Off: 2 seconds after the engine started (the system is in normal condition) and VDC Off switch is Off.
• (Note 5): ON/Off timing of the SLIP indicator lamp
  1. ON: When the ignition switch is turned ON (before engine start) or a malfunction is detected.
  2. Off: 2 seconds after the engine started (the system is in normal condition) and the VDC/TCS function is inactive.
  3. Flashing: VDC/TCS function is active during driving.
