Data Monitor: Procedure

  1. Turn the ignition switch Off.
  2. Connect the CONSULT-II connector to the vehicle-side data link connector.
  3. Turn the ignition switch ON.
  4. Touch START on the display.
  5. Touch ABS on the display.
    CAUTION: Just after the engine is started, or the ignition switch is turned ON, ABS may not be displayed on the system selection screen even if START is touched. In this case, start the self-diagnosis again from step 2.
  6. Touch DATA MONITOR.

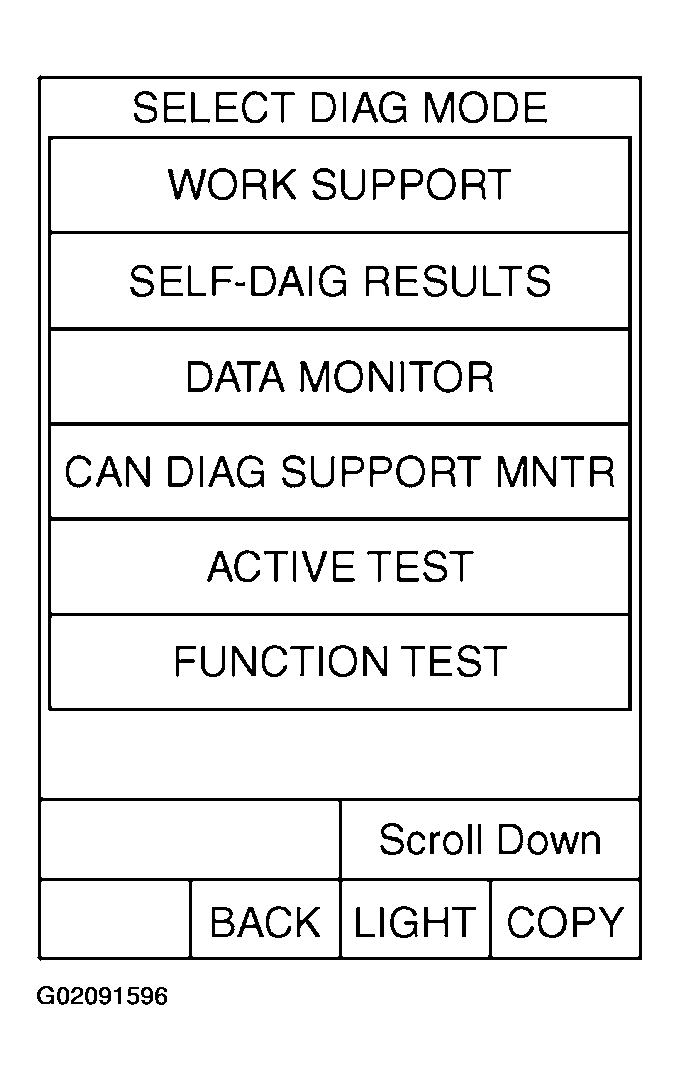

    Fig 1: Displaying SELECT DIAG MODE Screen
    G02091596Courtesy of NISSAN MOTOR CO., U.S.A.
  7. The data monitor item selection screen is displayed, and touch one of ECU INPUT SIGNALS, MAIN SIGNALS or SELECTION FROM MENU. Refer to Data Monitor Items to be Displayed.
  8. Touch START.
  9. Screen of data monitor is displayed.

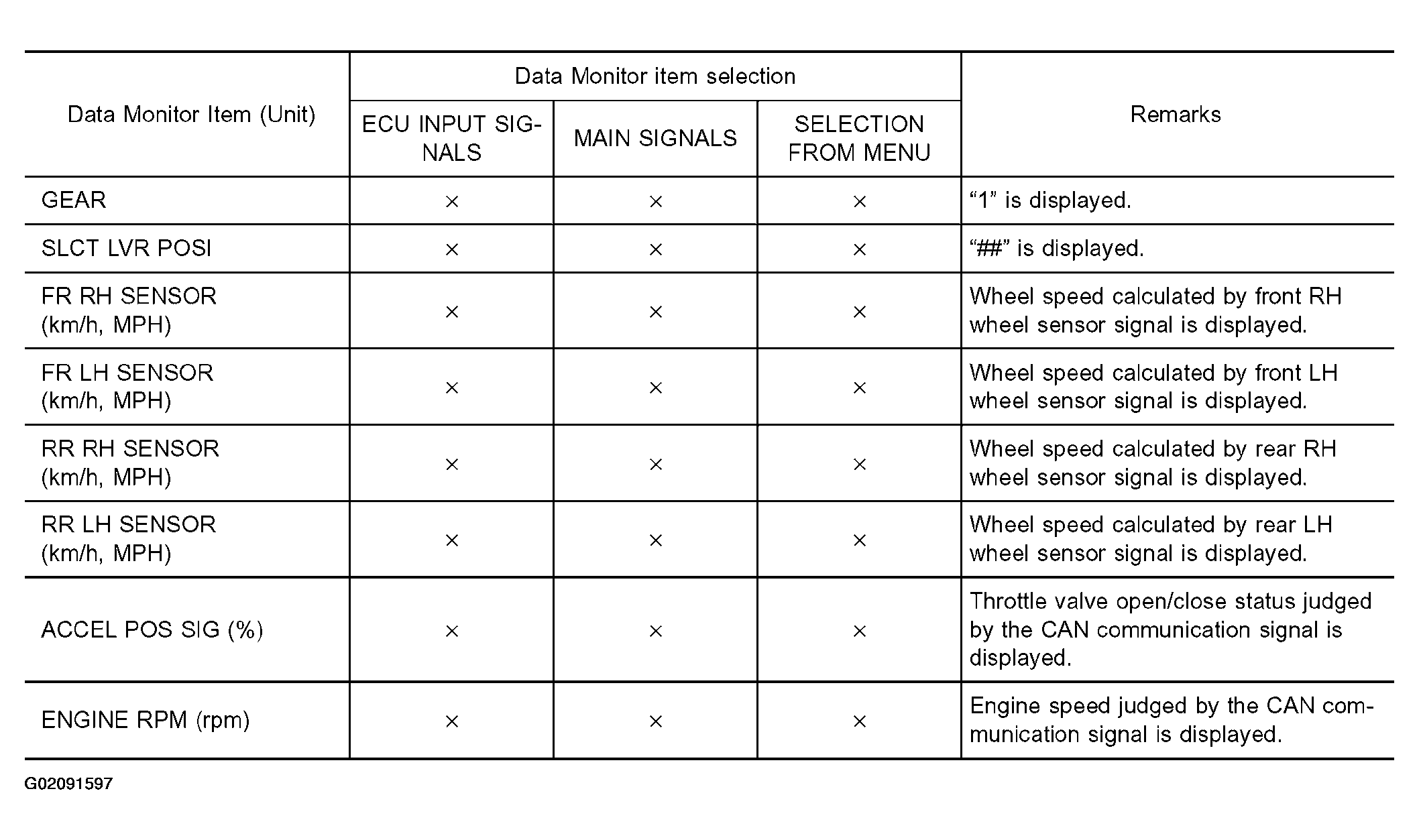

Fig 2: Data Monitor Items Chart (1 of 3)
G02091597Courtesy of NISSAN MOTOR CO., U.S.A.

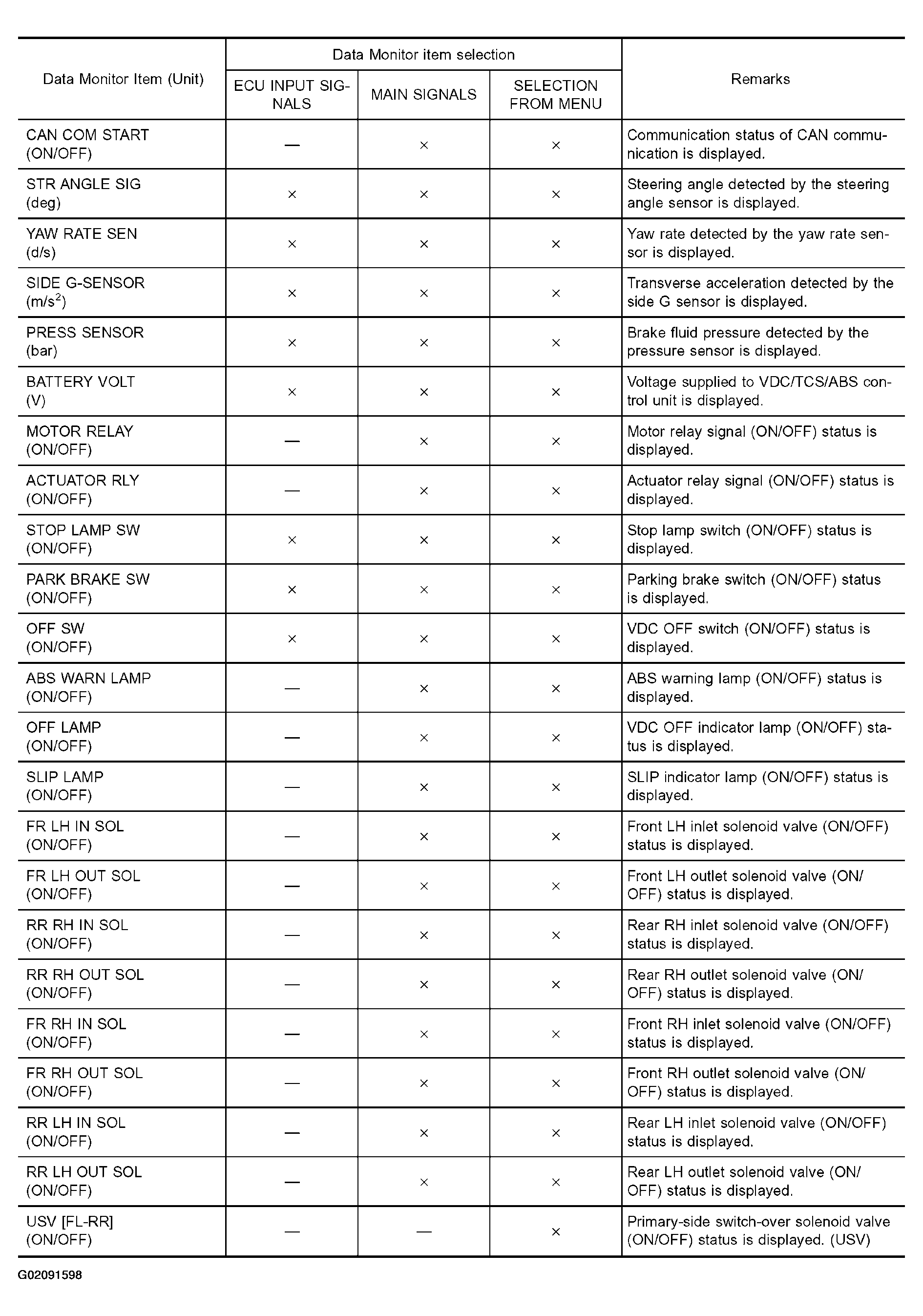

Fig 3: Data Monitor Items Chart (2 of 3)
G02091598Courtesy of NISSAN MOTOR CO., U.S.A.

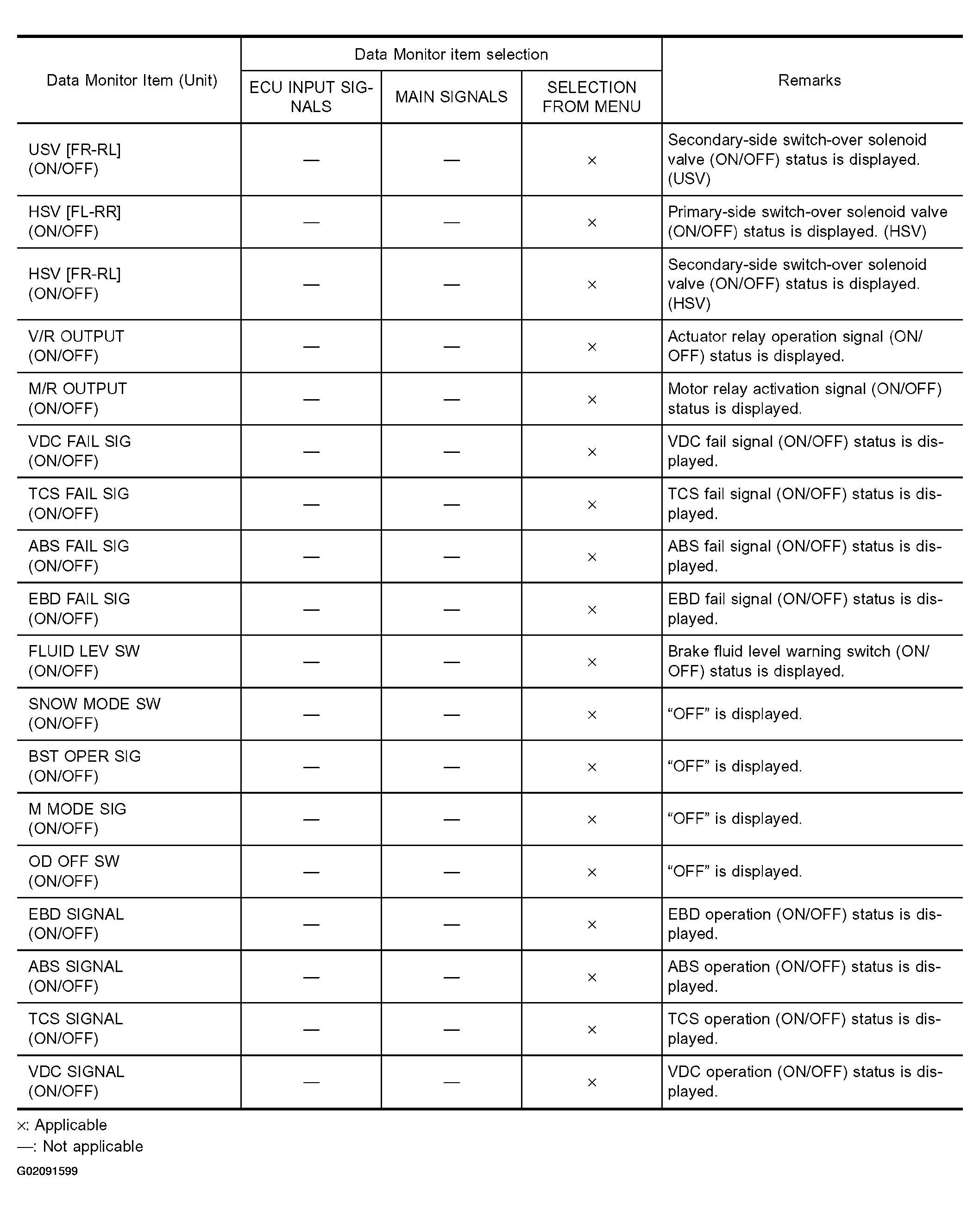

Fig 4: Data Monitor Items Chart (3 of 3)
G02091599Courtesy of NISSAN MOTOR CO., U.S.A.
