Active Test: Procedure

CAUTION:
  • Do not perform active test while driving the vehicle.
  • Make sure that completely bleed air from the brake system.
  • The active test cannot be performed with the ABS warning lamp on.
  1. Connect the CONSULT-II connector to the vehicle-side data link connector and start the engine.
  2. Touch START on the display.
  3. Touch ABS and ACTIVE TEST.

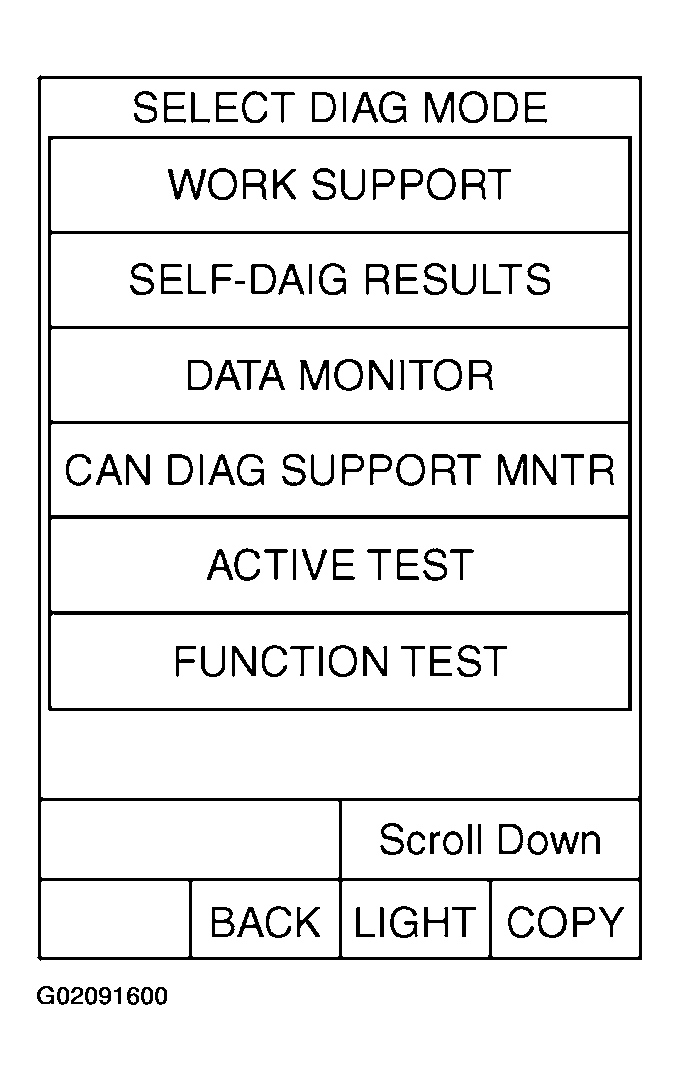

    Fig 1: Displaying SELECT DIAG MODE Screen
    G02091600Courtesy of NISSAN MOTOR CO., U.S.A.
  4. The test item selection screen is displayed.
  5. Touch necessary test item.

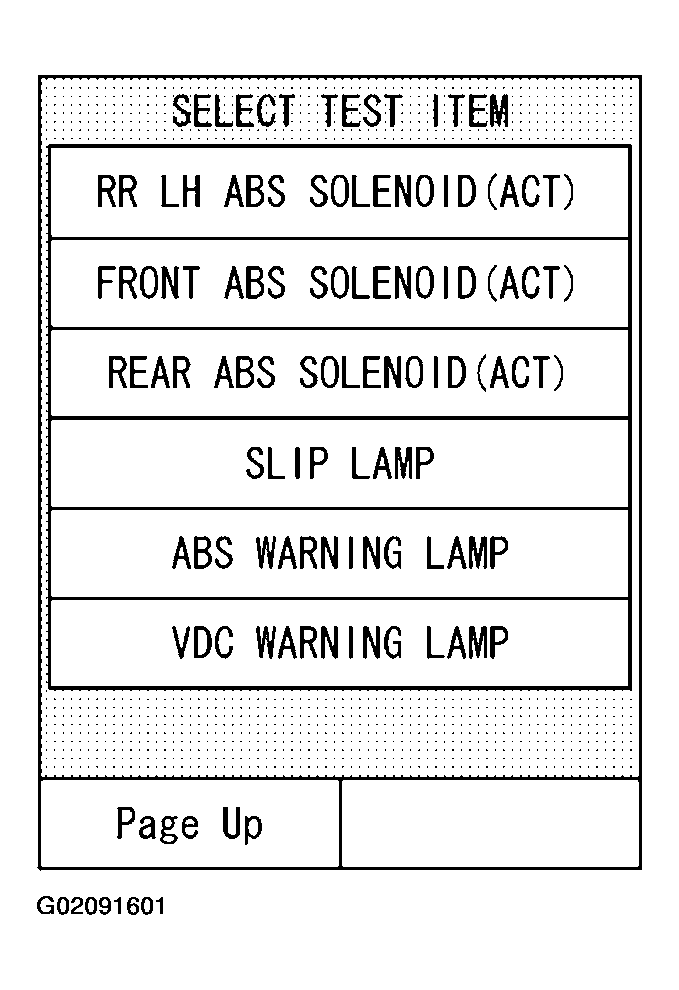

    Fig 2: Displaying SELECT TEST ITEM Screen
    G02091601Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch START with MAIN SIGNALS line inverted.
    Fig 3: Displaying SELECT MONITOR ITEM Screen
    G02091602Courtesy of NISSAN MOTOR CO., U.S.A.
  7. The active test screen is displayed.
    Fig 4: Displaying ACTIVE TEST Screen
    G02091603Courtesy of NISSAN MOTOR CO., U.S.A.
