Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
VDC
>>
General Information
>>
System Diagram
System Diagram

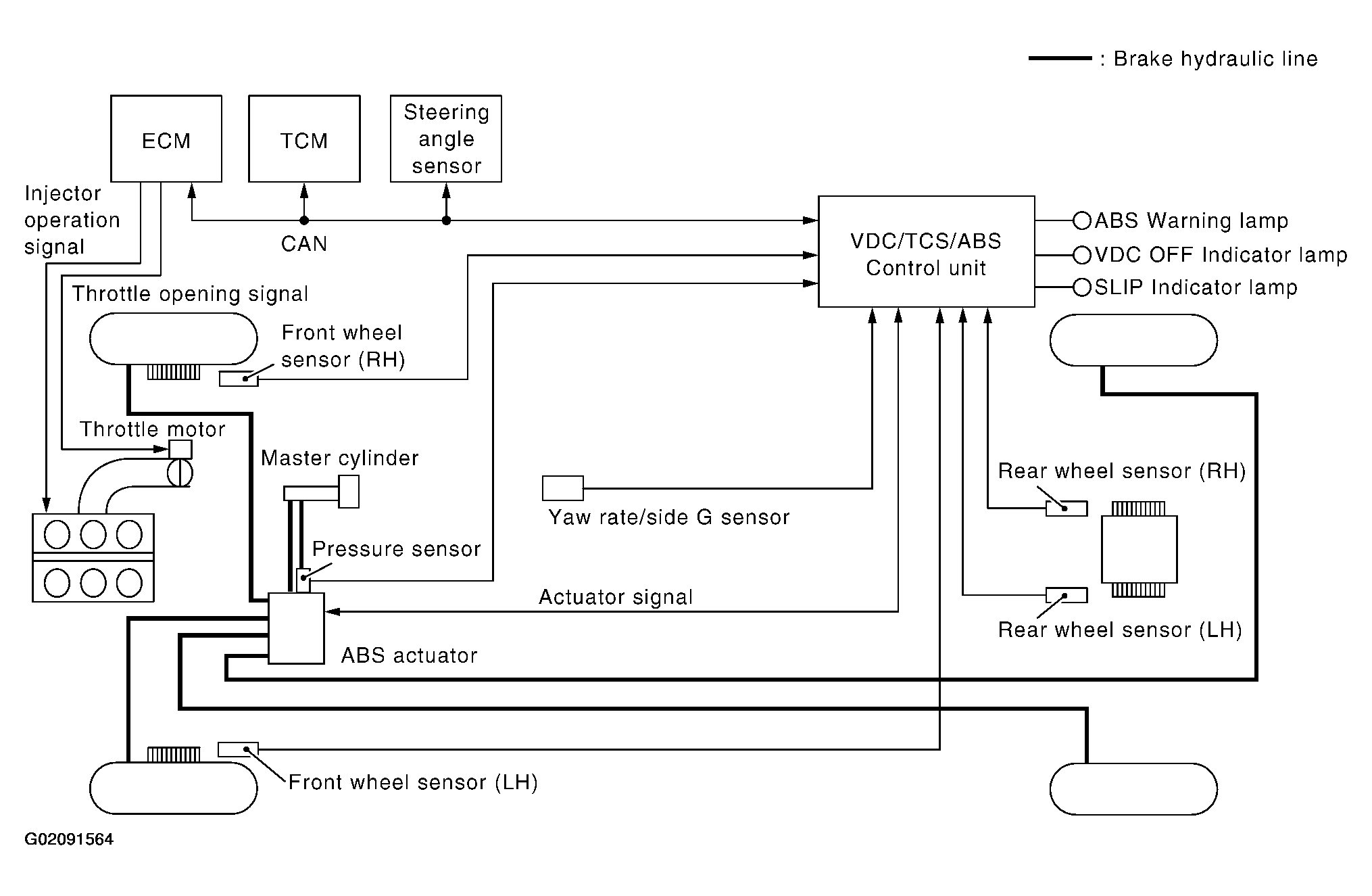

Fig 1: Displaying VDC System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
