Diagnostic Trouble Code (DTC) Confirmation Procedure

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II

1. Turn ignition switch "ON".
2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
3. Wait at least 6 seconds or start engine and wait for at least 6 seconds.

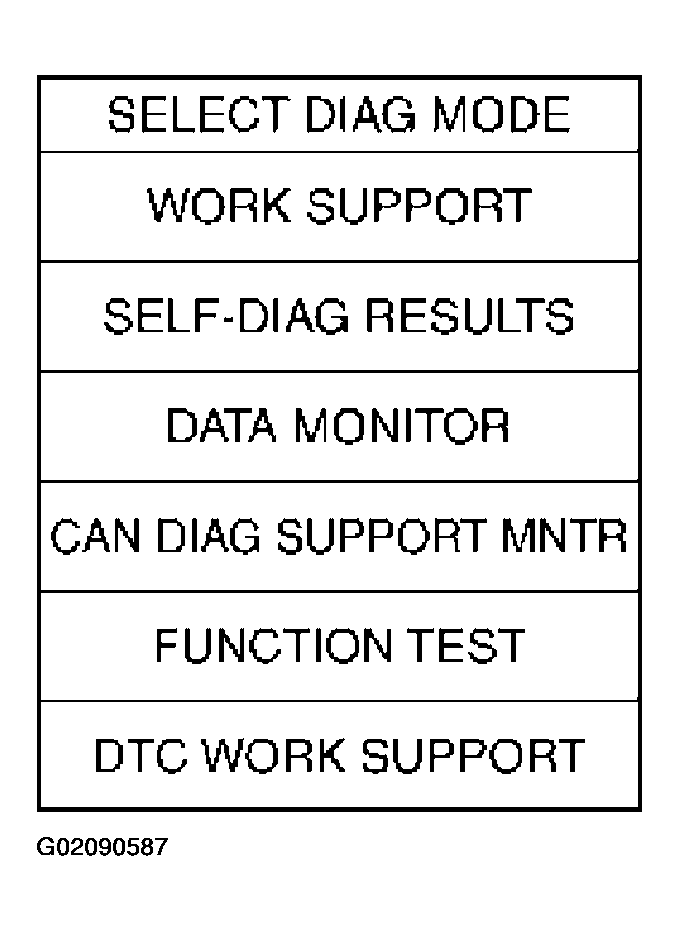

   Fig 1: Displaying Diagnostic Trouble Code (DTC) Confirmation Procedure (1 of 2)

   Courtesy of NISSAN MOTOR CO., U.S.A.

With GST

Follow the procedure "With CONSULT-II".

Fig 2: Displaying Diagnostic Trouble Code (DTC) Confirmation Procedure (2 of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
