With CONSULT-II

Turn ignition switch ON and select "DATA MONITOR" mode for "A/T" with CONSULT-II.

Fig 1: Identifying Accelerator Pedal Position Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.

If the check result is NG, go to DIAGNOSTIC PROCEDURE .

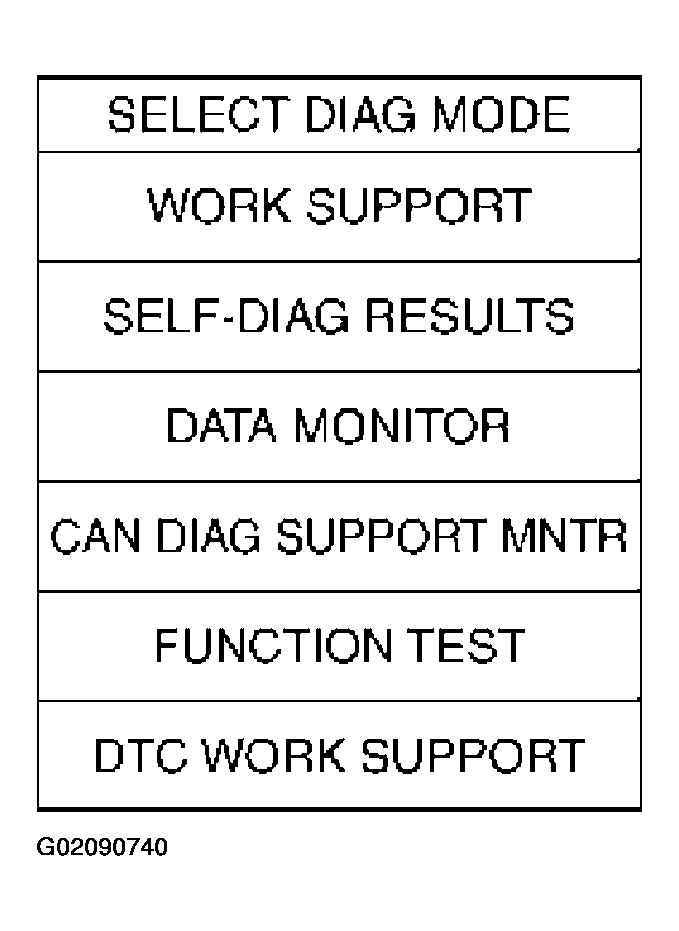

Fig 2: Display Select Diag Mode Sheet With Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.

If the check result is OK, go to following step.
Turn ignition switch ON and select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
Start engine and maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more THRTL POS SEN (accelerator pedal position sensor): Approximately 3V or less

Selector lever: D position

If the check result is NG, go to DIAGNOSTIC PROCEDURE .

Fig 3: Display Select system Sheet With Consult-II
Courtesy of NISSAN MOTOR CO., U.S.A.

If the check result is OK, go to following step.
Maintain the following conditions for at least 3 consecutive seconds. Then release accelerator pedal completely.
VHCL SPEED SE: 10 km/h (6 MPH) or more Accelerator pedal: Wide open throttle

Selector lever: D position
