Input/output Signal Chart

NOTE: T: Transmit R: Receive

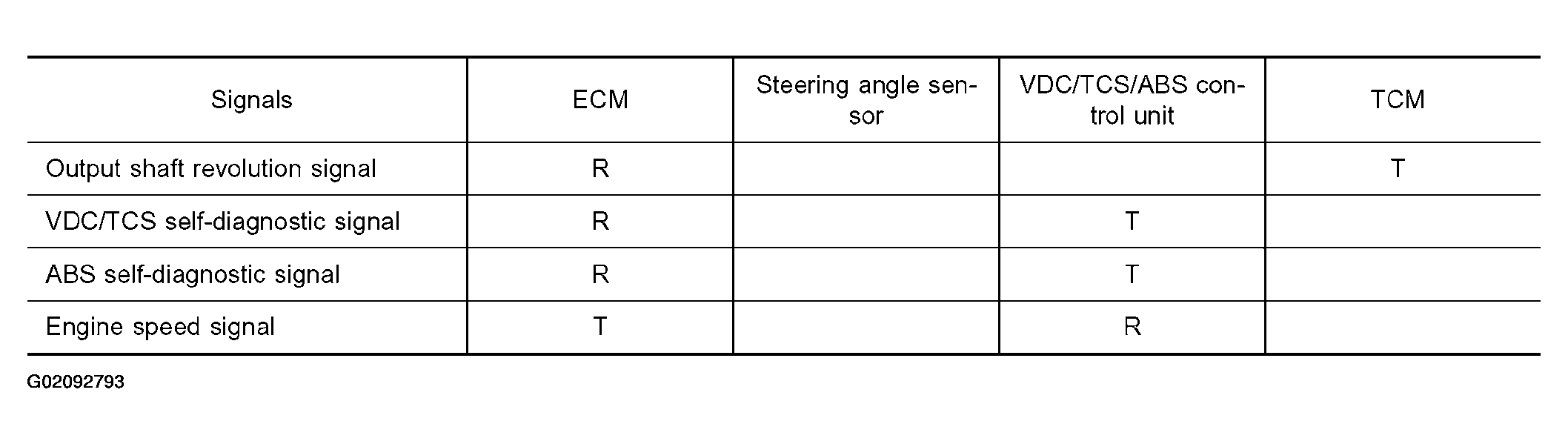

Fig 1: Input/Output Signal Chart For VDS Models (1 Of 2)
G02092793Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Input/Output Signal Chart For VDS Models (2 Of 2)
G02092794Courtesy of NISSAN MOTOR CO., U.S.A.
