Removal and Installation: Notes

CAUTION: Care must be taken not to give axial impact to the steering column assembly during removal and installation.

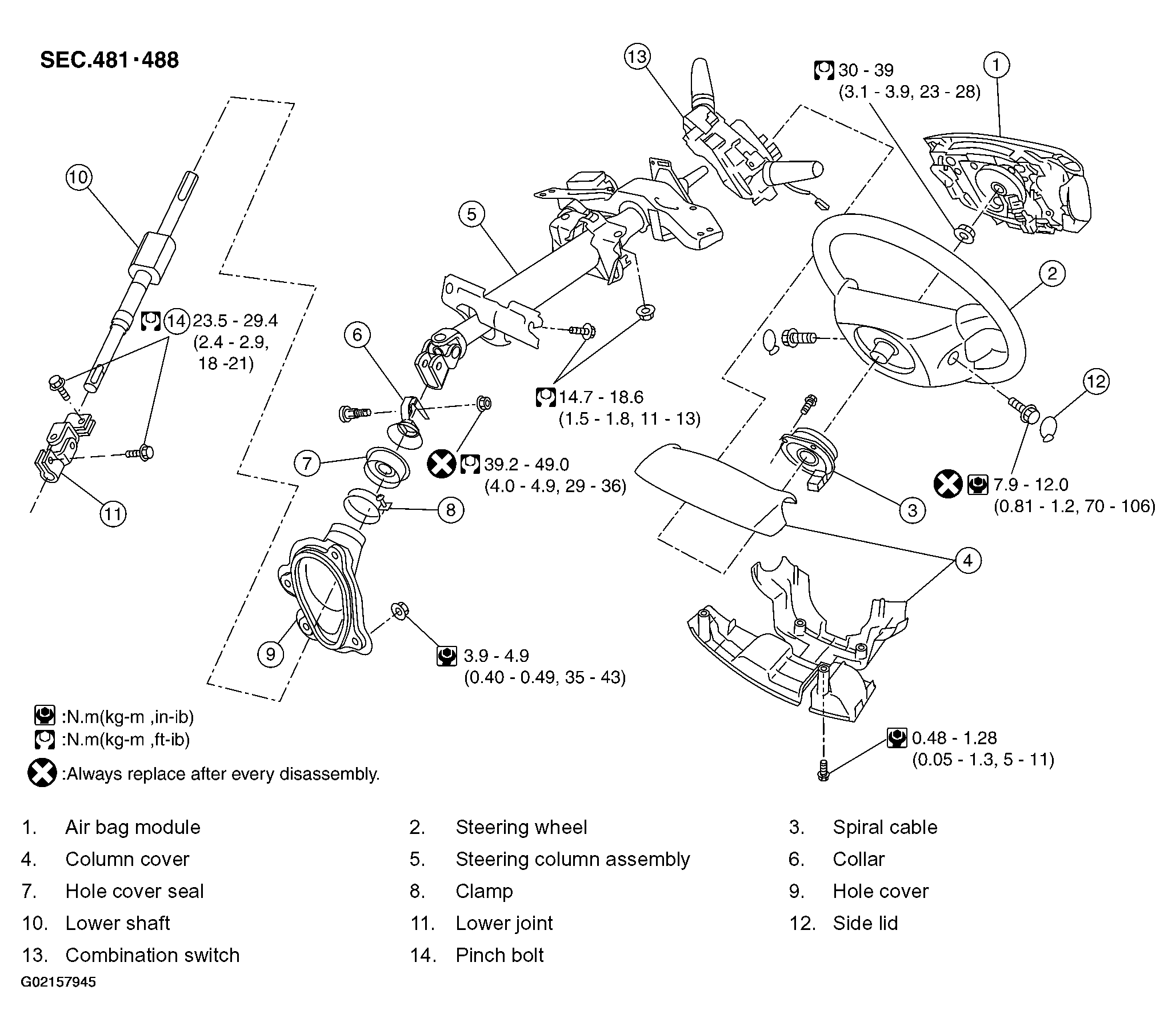

Fig 1: Removing And Installing Steering Column
G02157945Courtesy of NISSAN MOTOR CO., U.S.A.
