Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

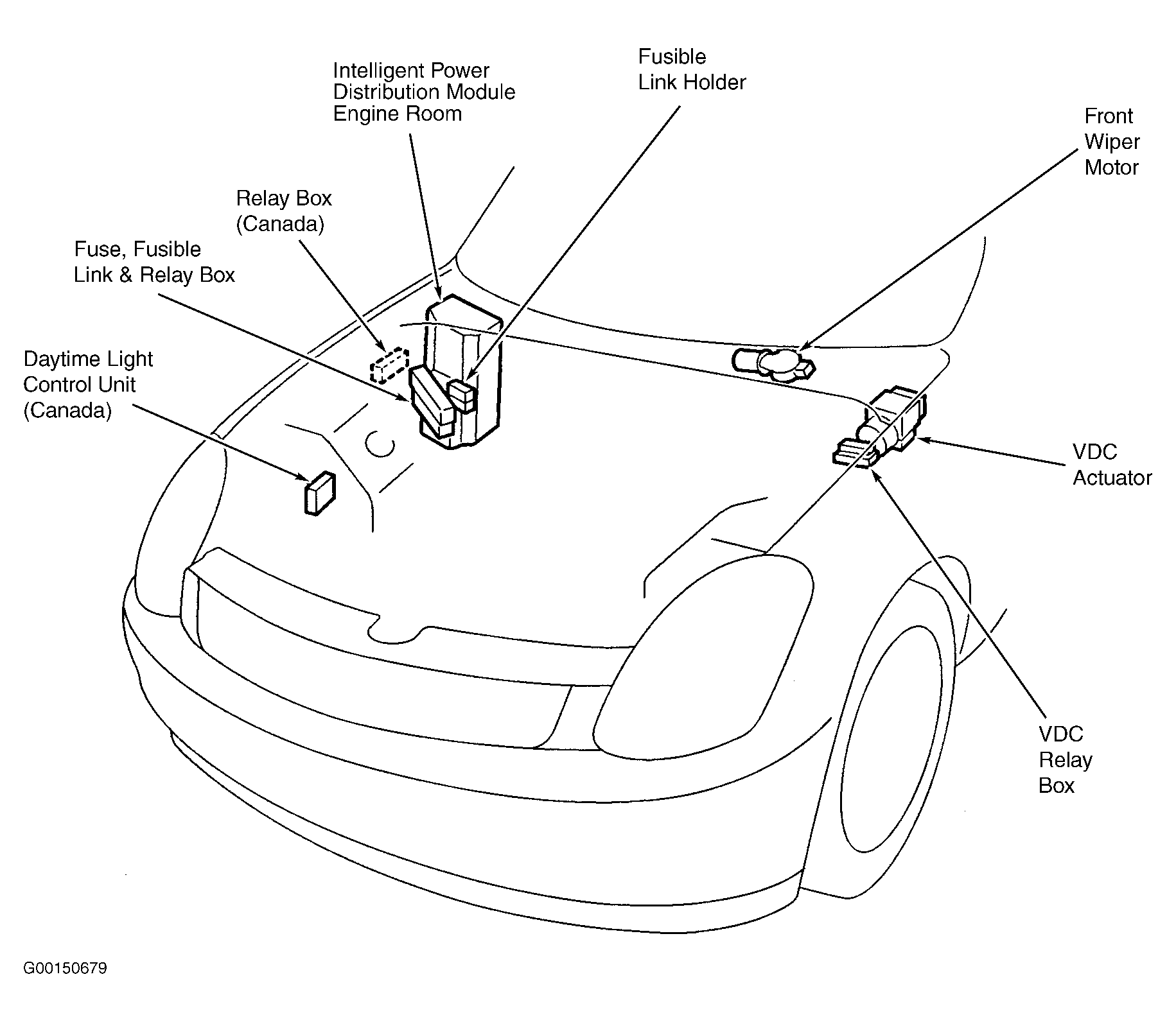

Fig 1: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

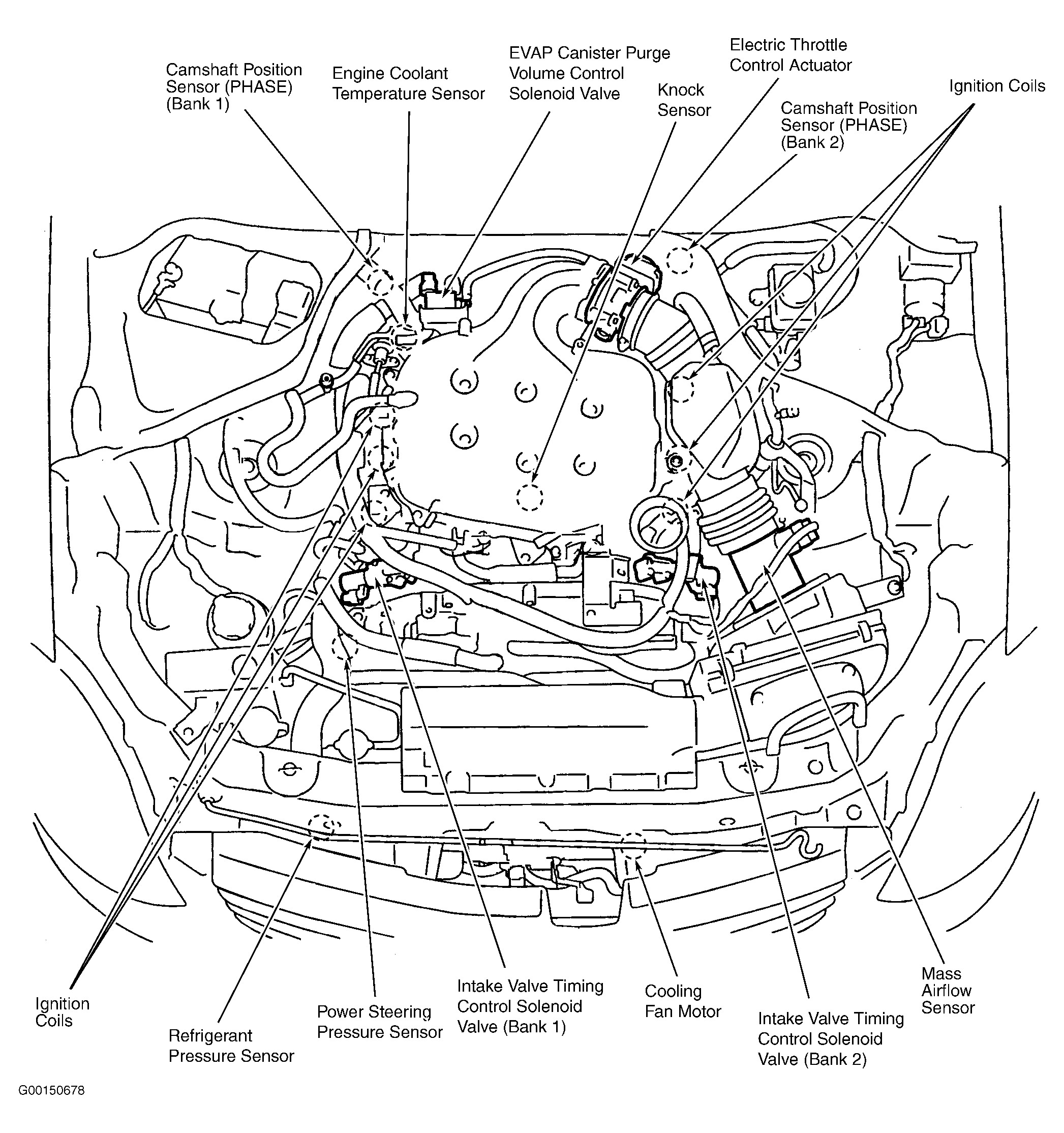

Fig 2: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

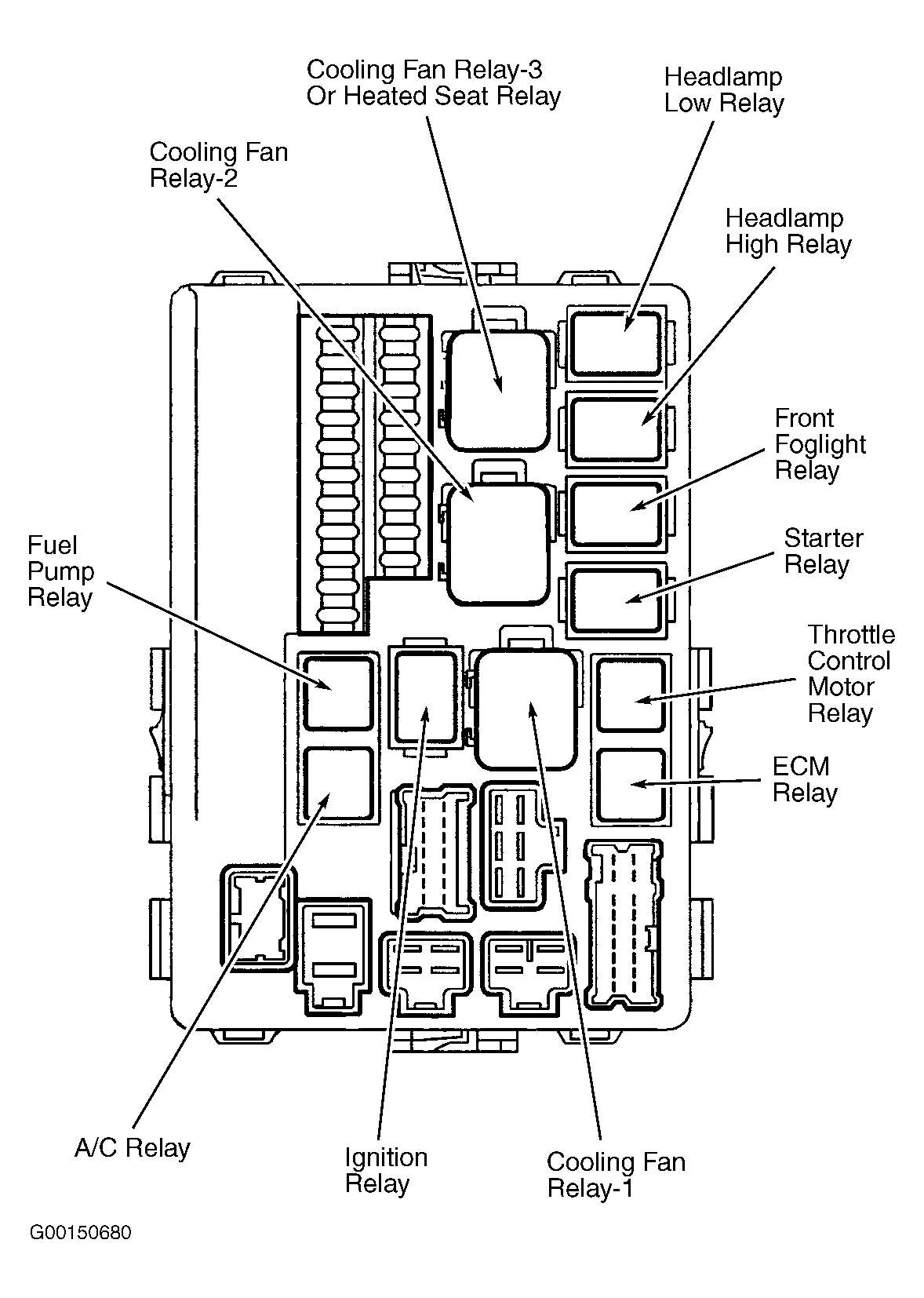

Fig 3: Intelligent Power Distribution Module Engine Room

Courtesy of NISSAN MOTOR CO., U.S.A.

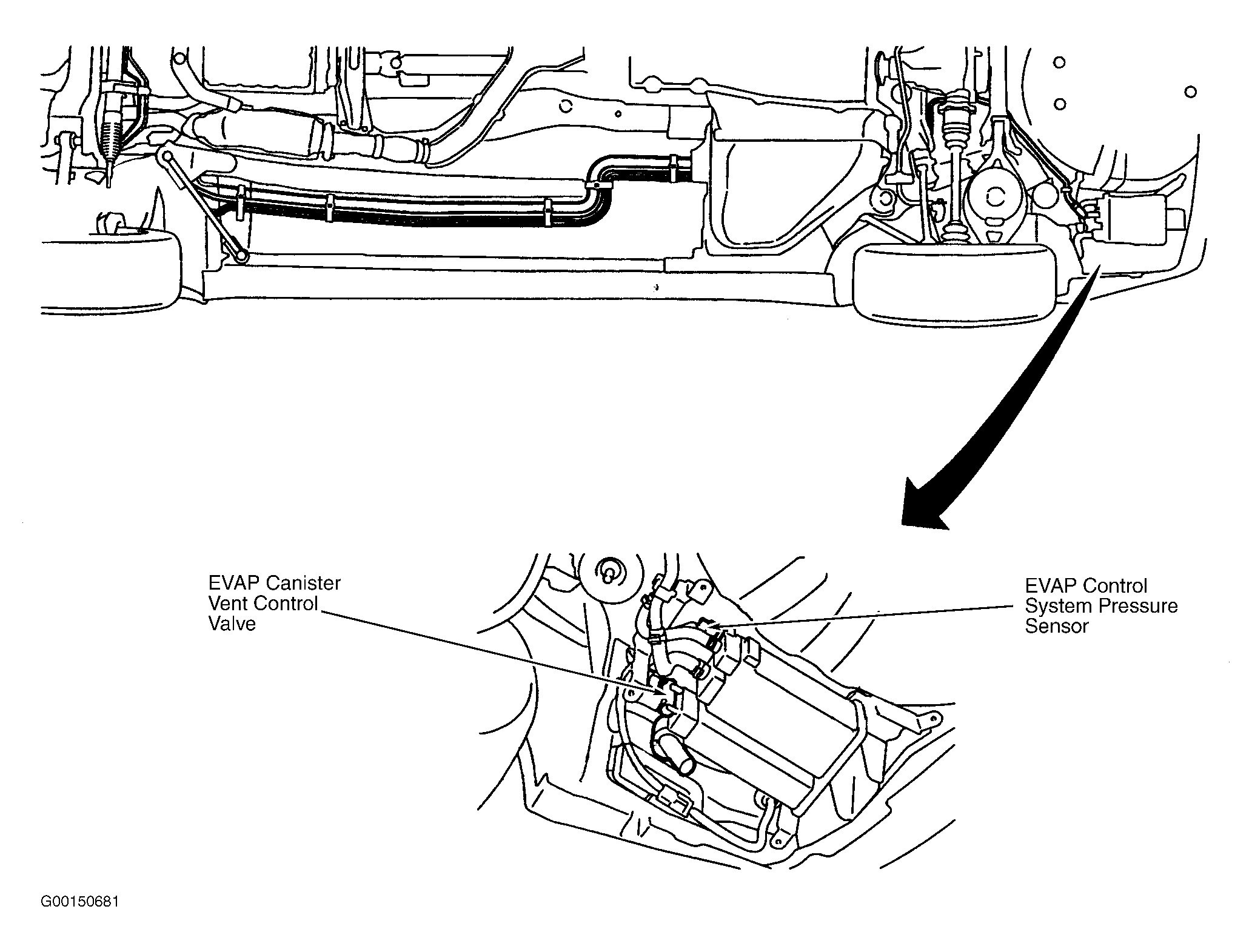

Fig 4: Under Vehicle

Courtesy of NISSAN MOTOR CO., U.S.A.

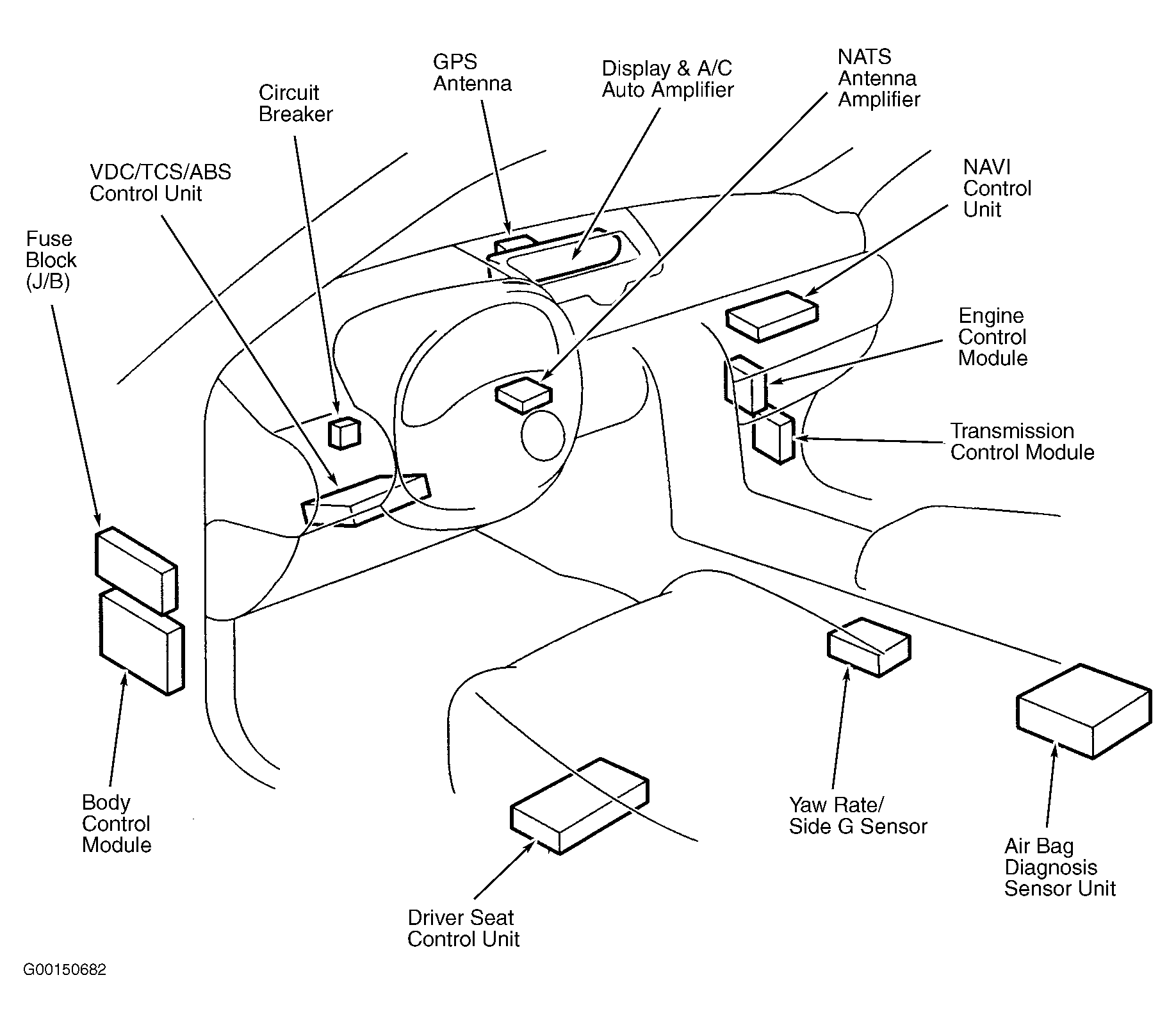

Fig 5: Passenger Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

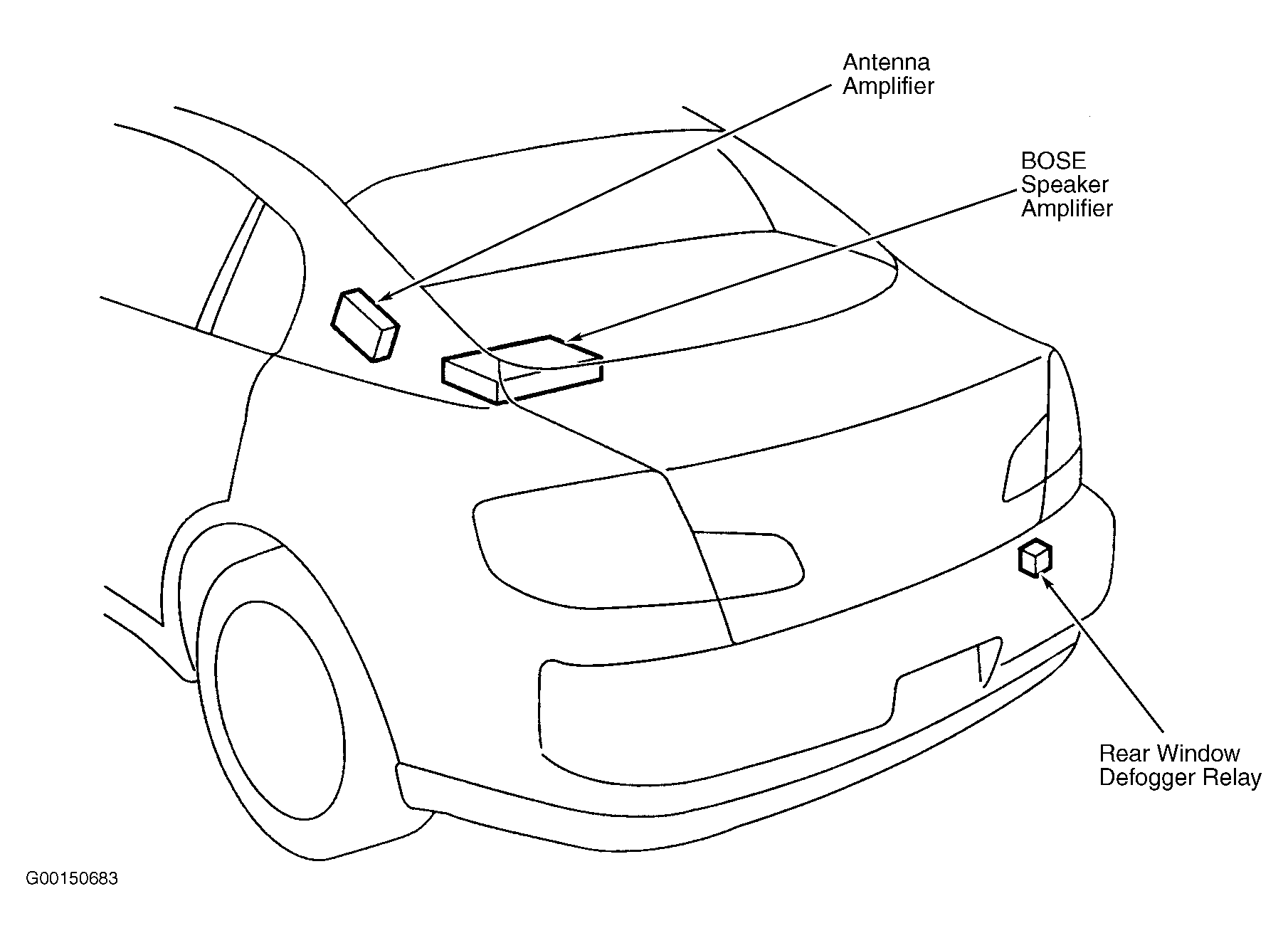

Fig 6: Rear Of Vehicle

Courtesy of NISSAN MOTOR CO., U.S.A.

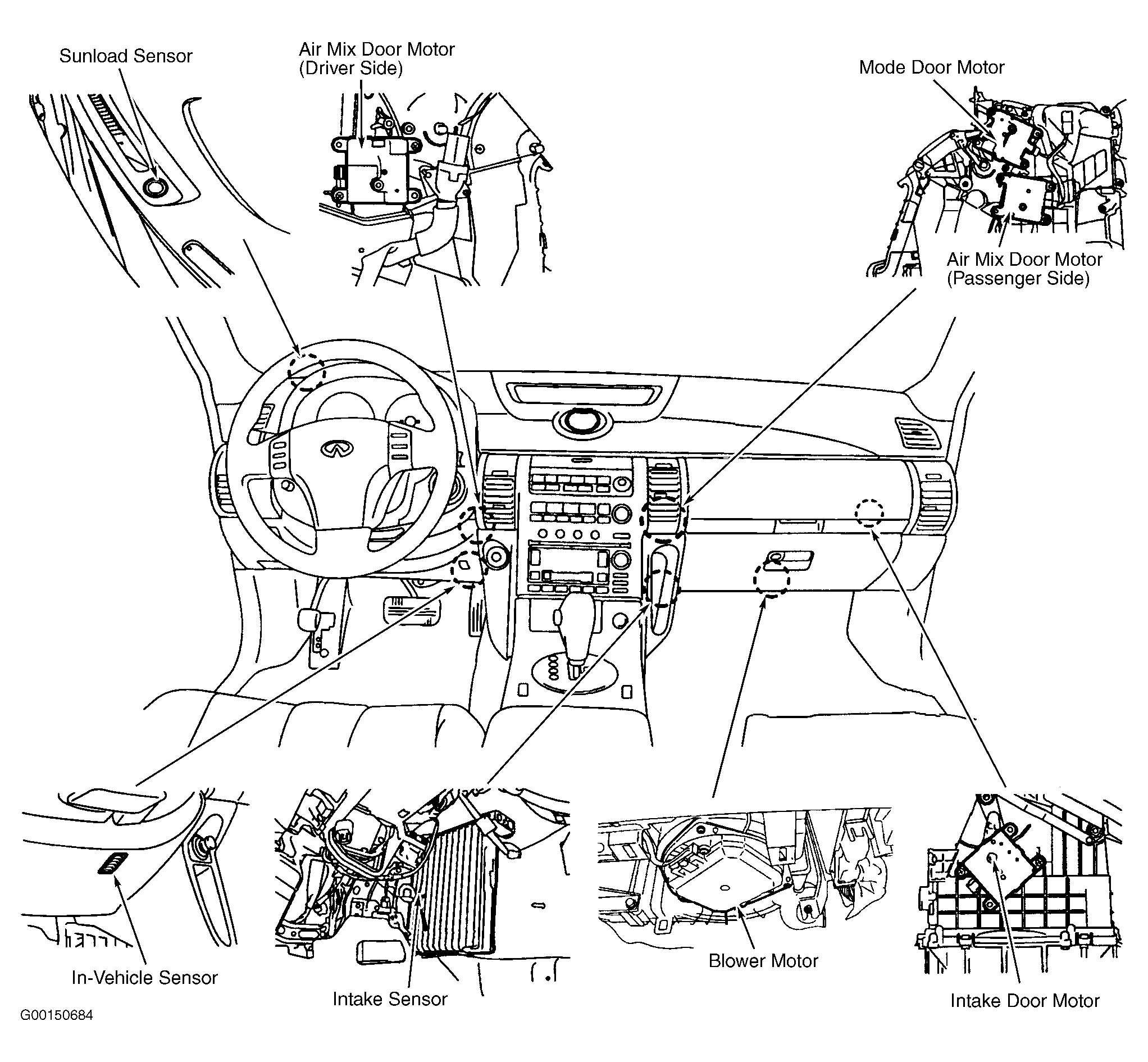

Fig 7: Dash

Courtesy of NISSAN MOTOR CO., U.S.A.

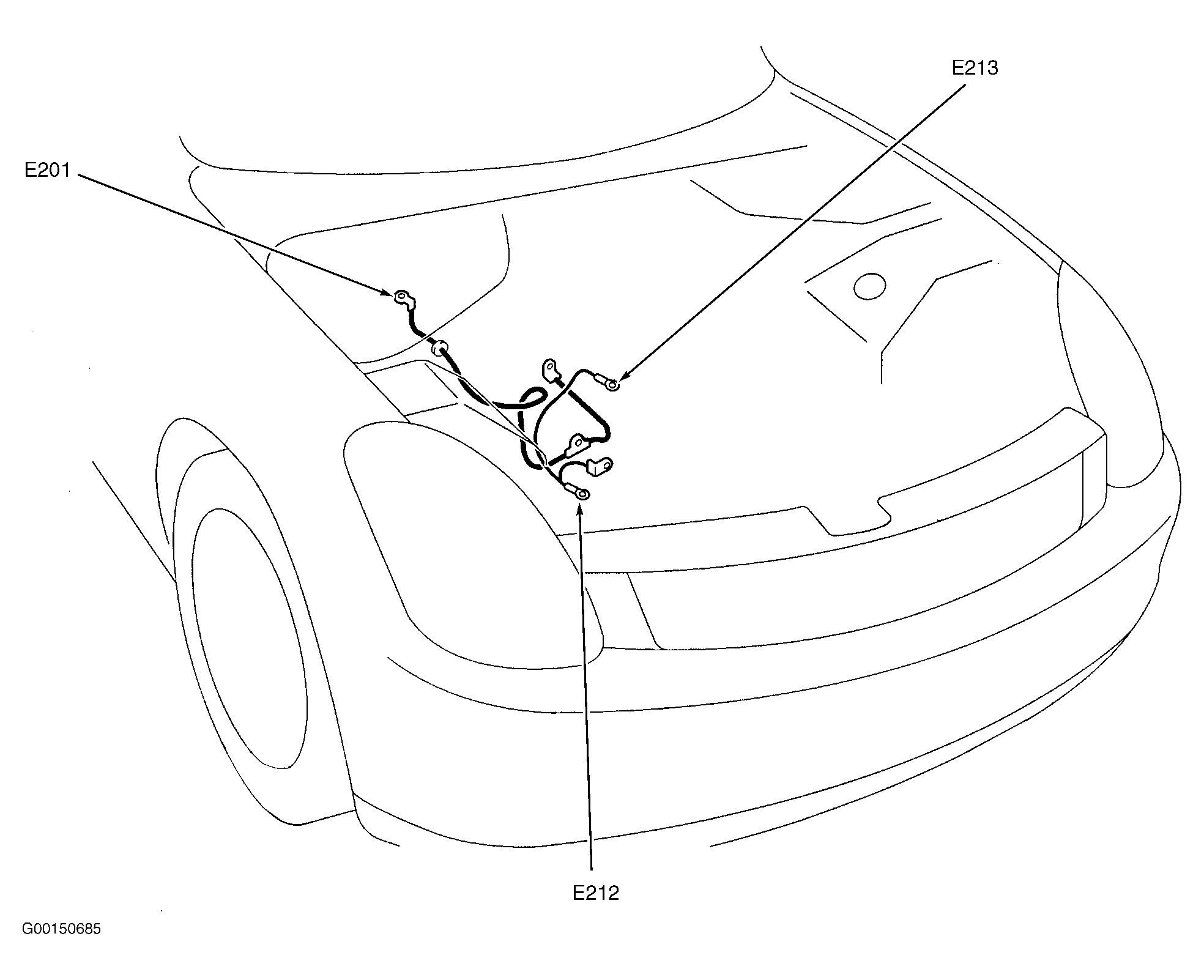

Fig 8: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.
