CONSULT-II Reference Value In Data Monitor Mode

Specification data are reference values. See Fig 1 .

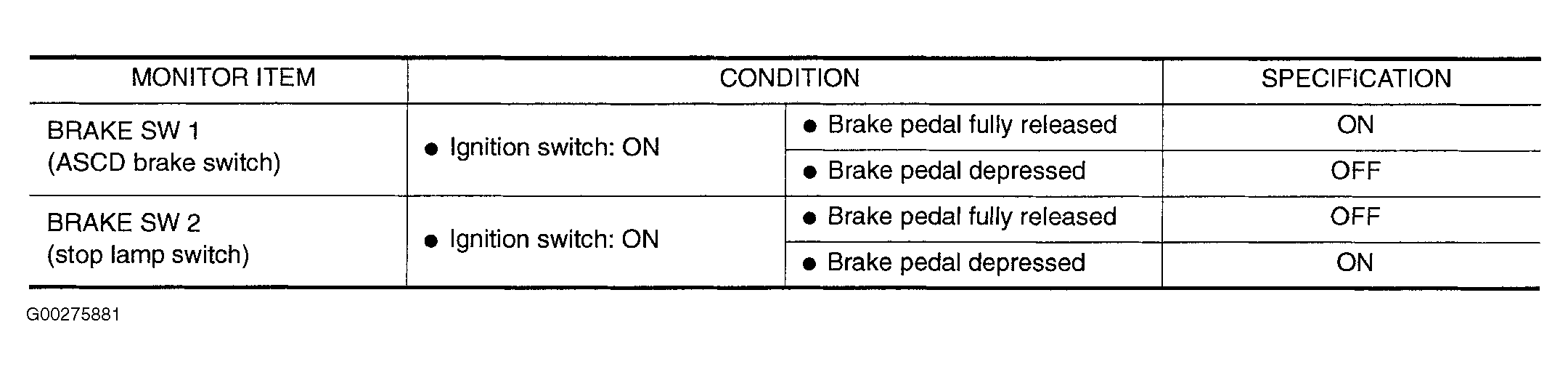

Fig 1: DTC P1572 Data Monitor Mode Reference Values
G00275881Courtesy of NISSAN MOTOR CO., U.S.A.
