CONSULT-II Reference Value In Data Mode

Specification data are reference values. See Fig 1 .

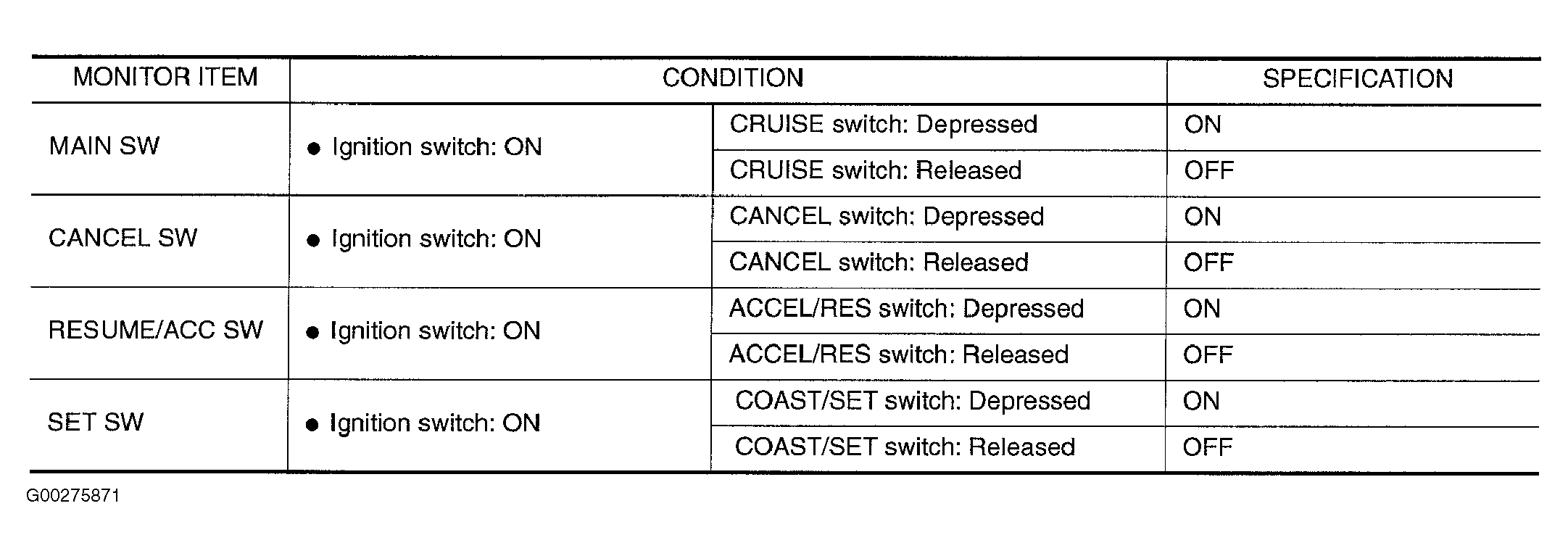

Fig 1: DTC P1564 Data Monitor Mode Reference Values
G00275871Courtesy of NISSAN MOTOR CO., U.S.A.
