CONSULT-II Reference Value In Data Monitor Mode

Specification data are reference values. See Fig 1 .

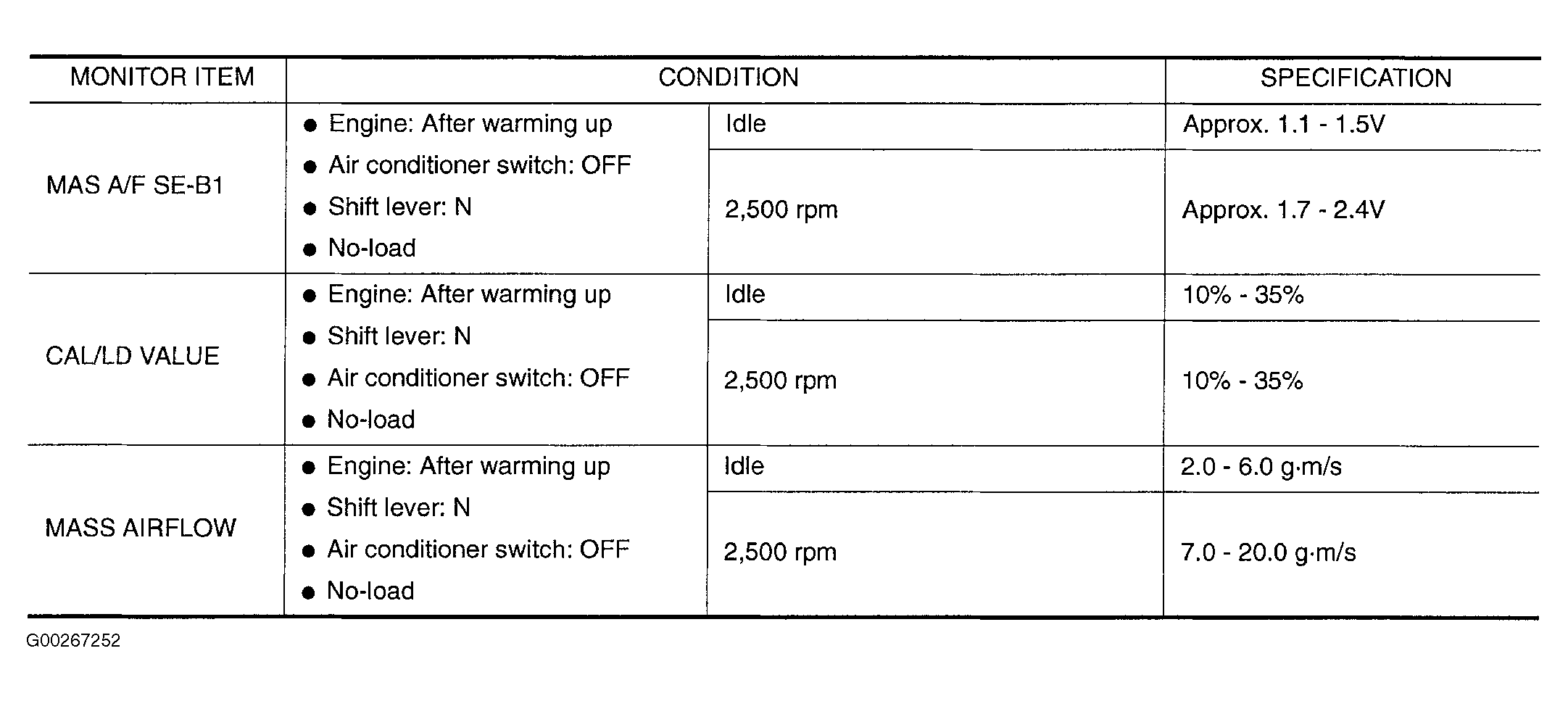

Fig 1: DTCs P0101, P0102 Or P0103 Data Monitor Mode Reference Values
G00267252Courtesy of NISSAN MOTOR CO., U.S.A.
