CONSULT-II Inspection Procedure: Notes

Turn ignition switch "ON".
Connect "CONSULT-II and CONSULT-II CONVERTER" to the data link connector.

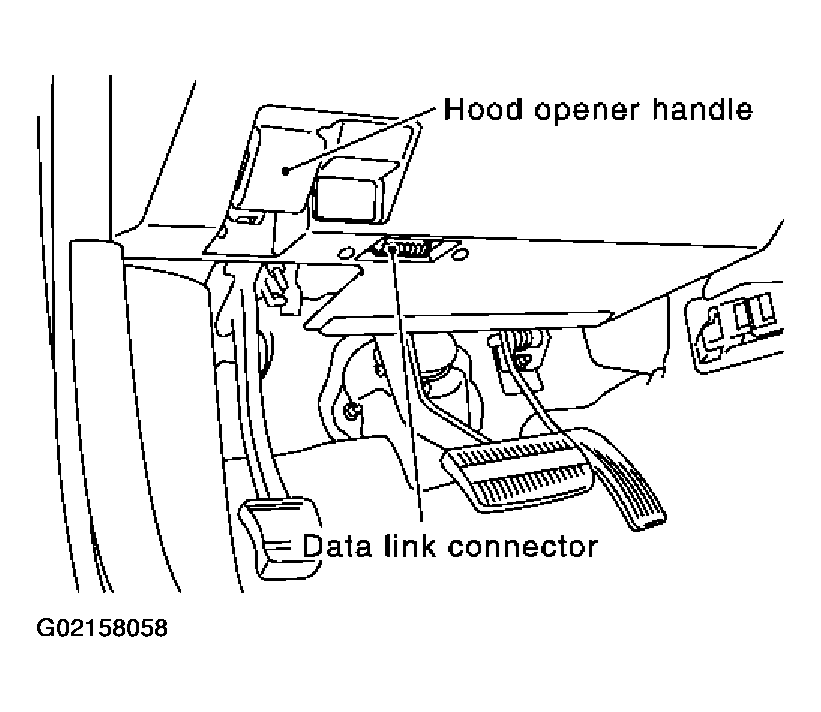

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON"
Touch "START (NISSAN BASED VHCL)"

Fig 2: Touching "START (NISSAN BASED VHCL)" CONSULT II Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM"
If "BCM" is not indicated, go to Refer to , "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT "

Fig 3: Touching "BCM" CONSULT II Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "RETAINED PWR".

Fig 4: Touching "RETAINED PWR" CONSULT II Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode.
"ACTIVE TEST" and "WORK SUPPORT" are available.

Fig 5: Selecting Diagnosis Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
