ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the engine ground.

Fig 1: ECM Terminal/Circuit Identification (1 Of 10)

G03582924

Courtesy of NISSAN MOTOR CO., U.S.A.

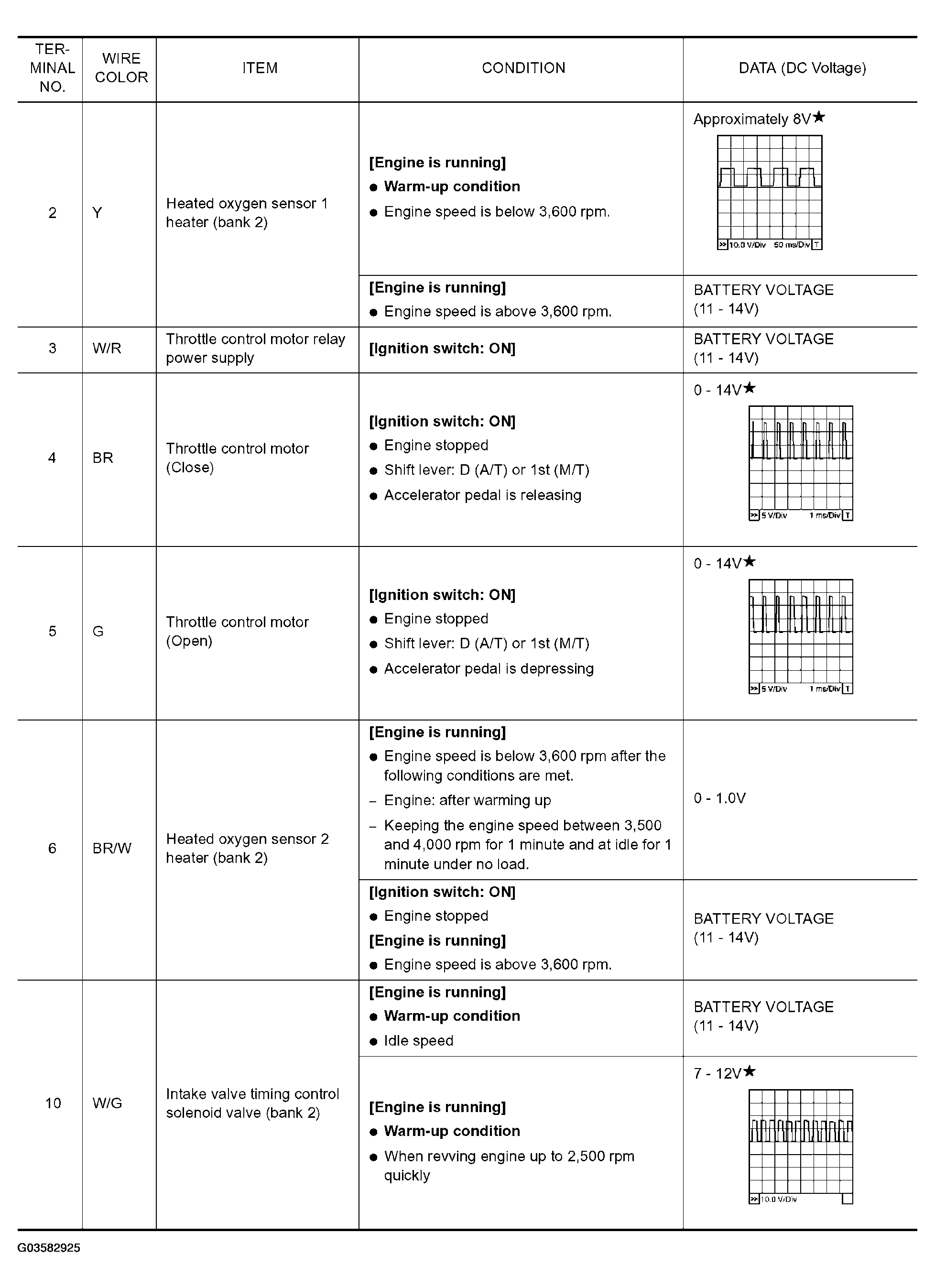

Fig 2: ECM Terminal/Circuit Identification (2 Of 10)

G03582925

Courtesy of NISSAN MOTOR CO., U.S.A.

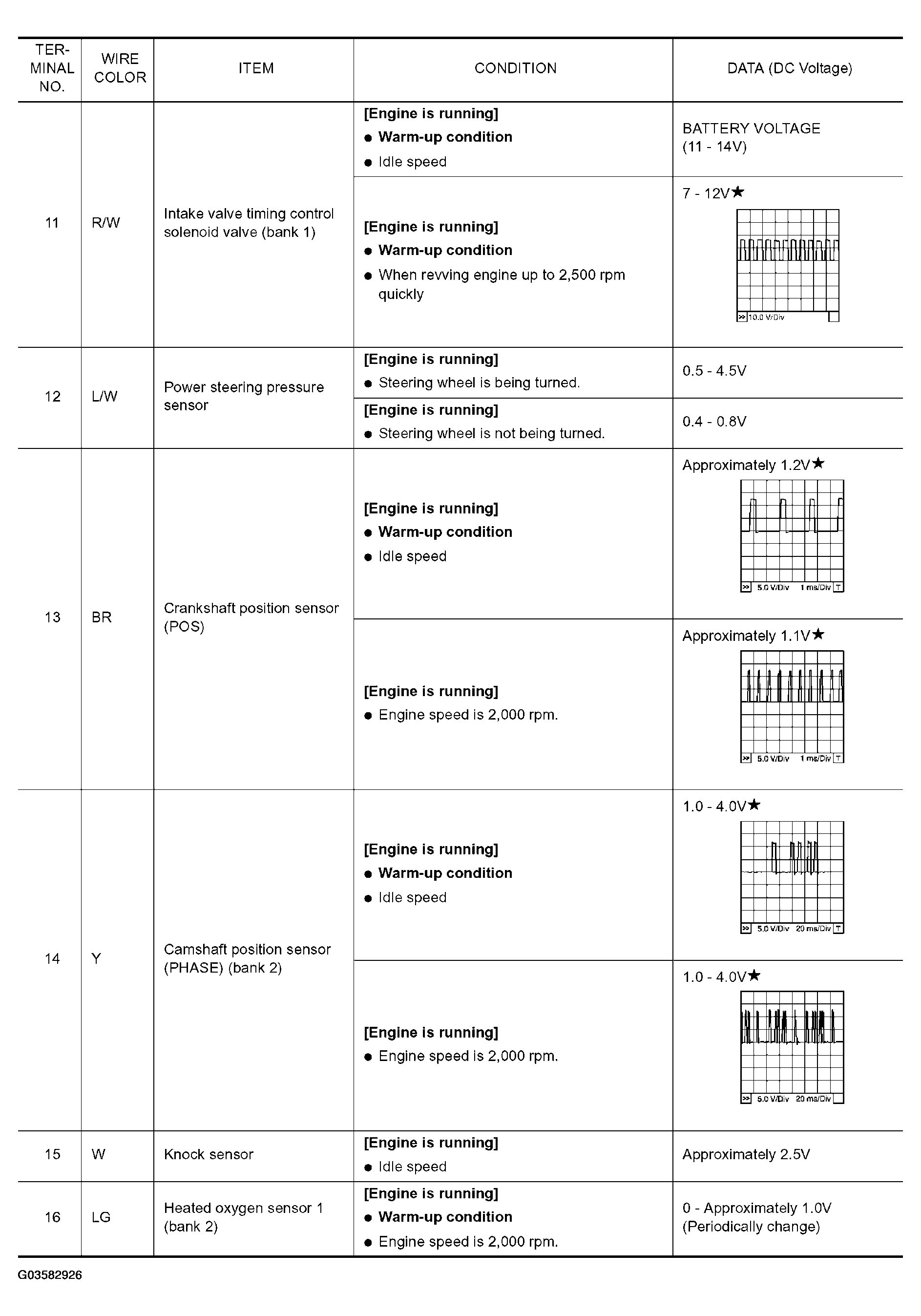

Fig 3: ECM Terminal/Circuit Identification (3 Of 10)

G03582926

Courtesy of NISSAN MOTOR CO., U.S.A.

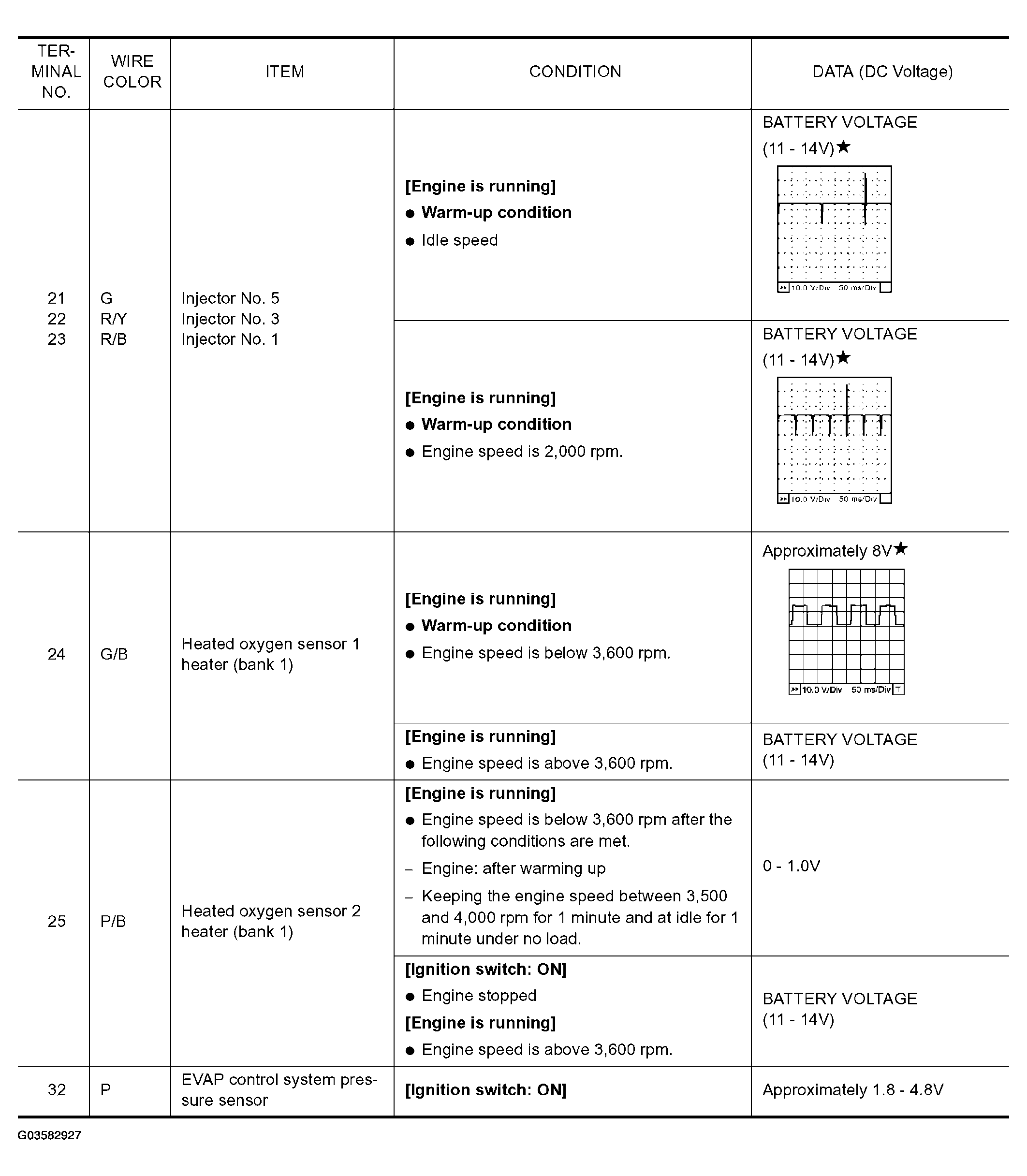

Fig 4: ECM Terminal/Circuit Identification (4 Of 10)

G03582927

Courtesy of NISSAN MOTOR CO., U.S.A.

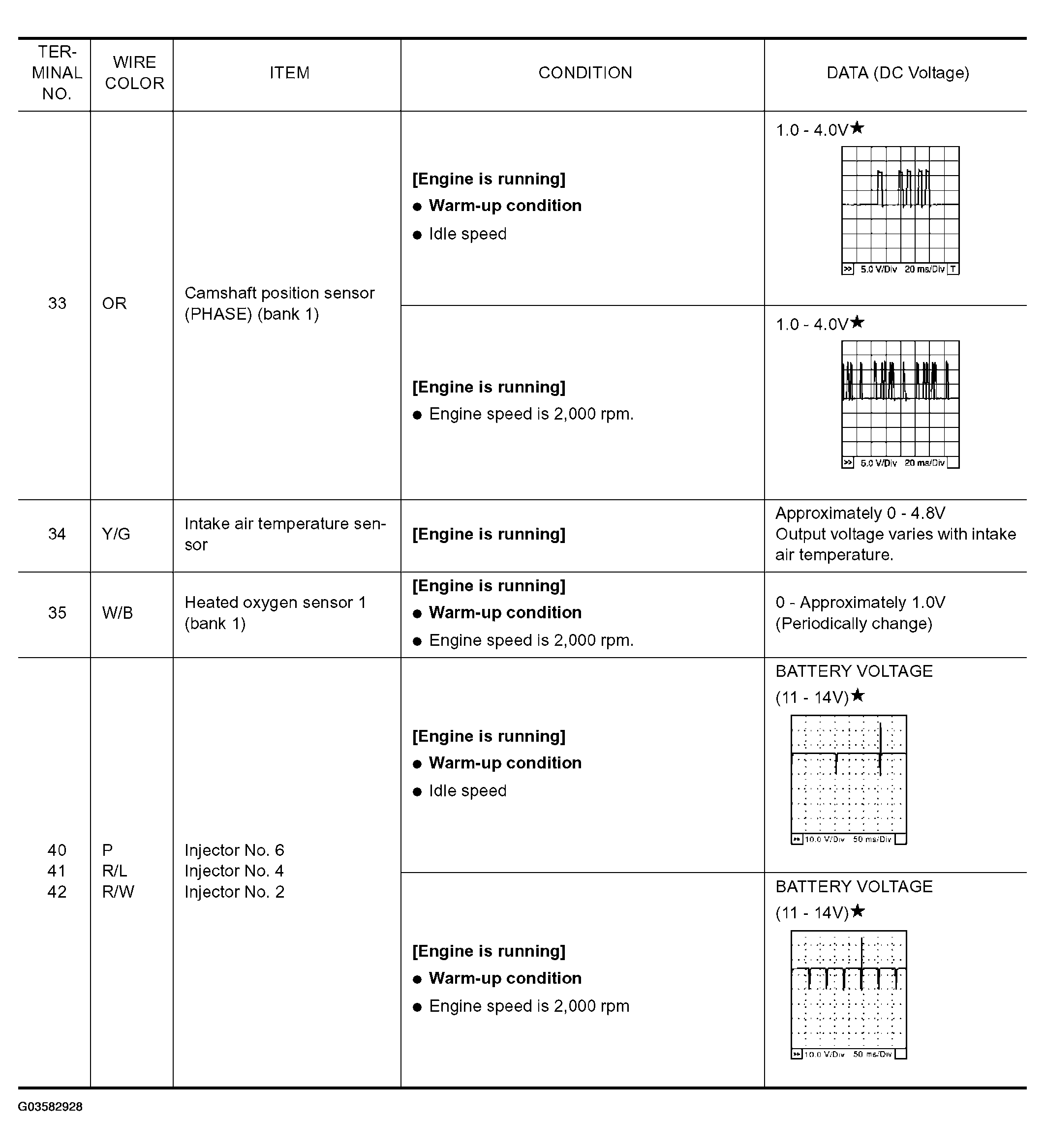

Fig 5: ECM Terminal/Circuit Identification (5 Of 10)

G03582928

Courtesy of NISSAN MOTOR CO., U.S.A.

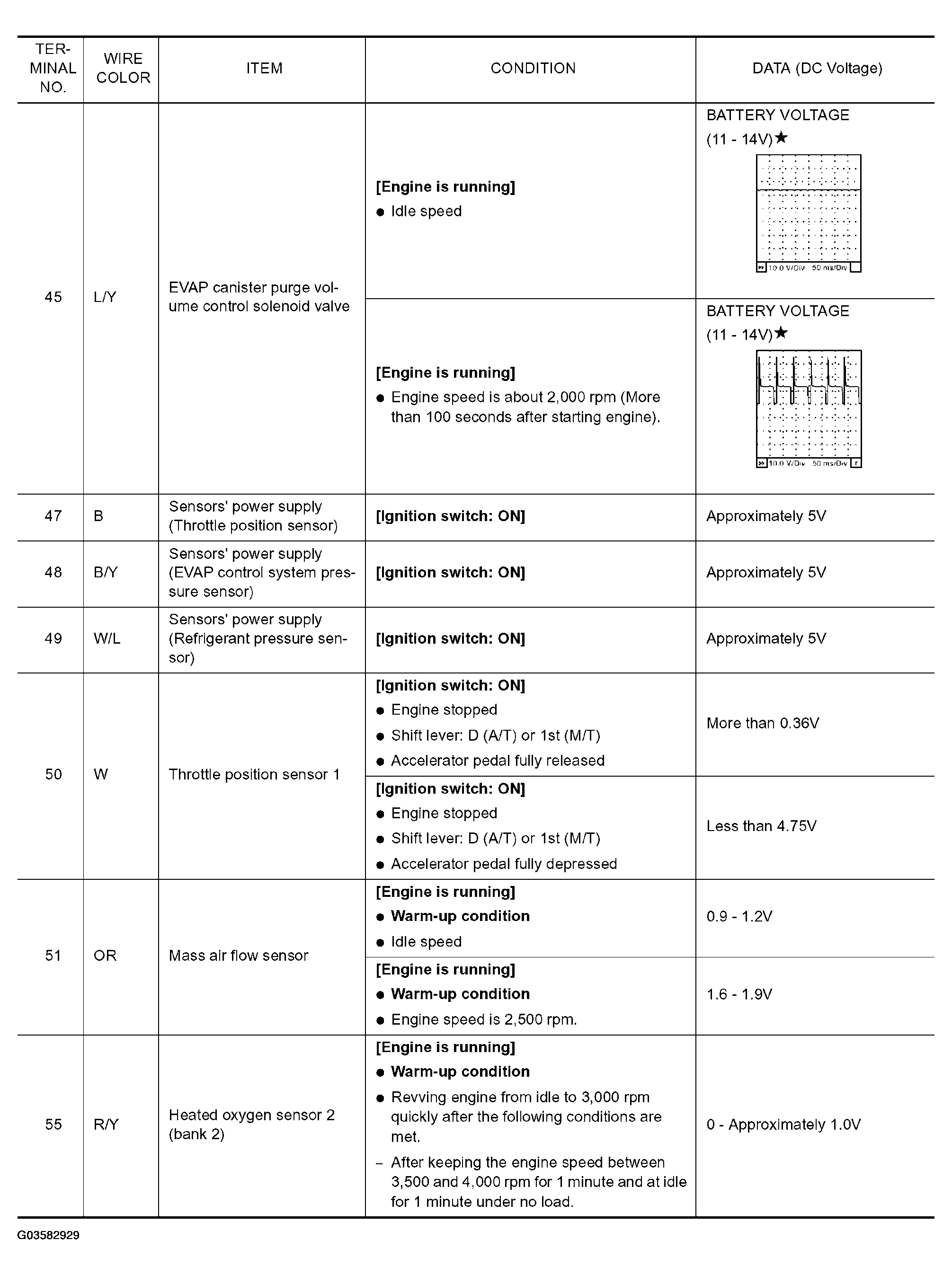

Fig 6: ECM Terminal/Circuit Identification (6 Of 10)

G03582929

Courtesy of NISSAN MOTOR CO., U.S.A.

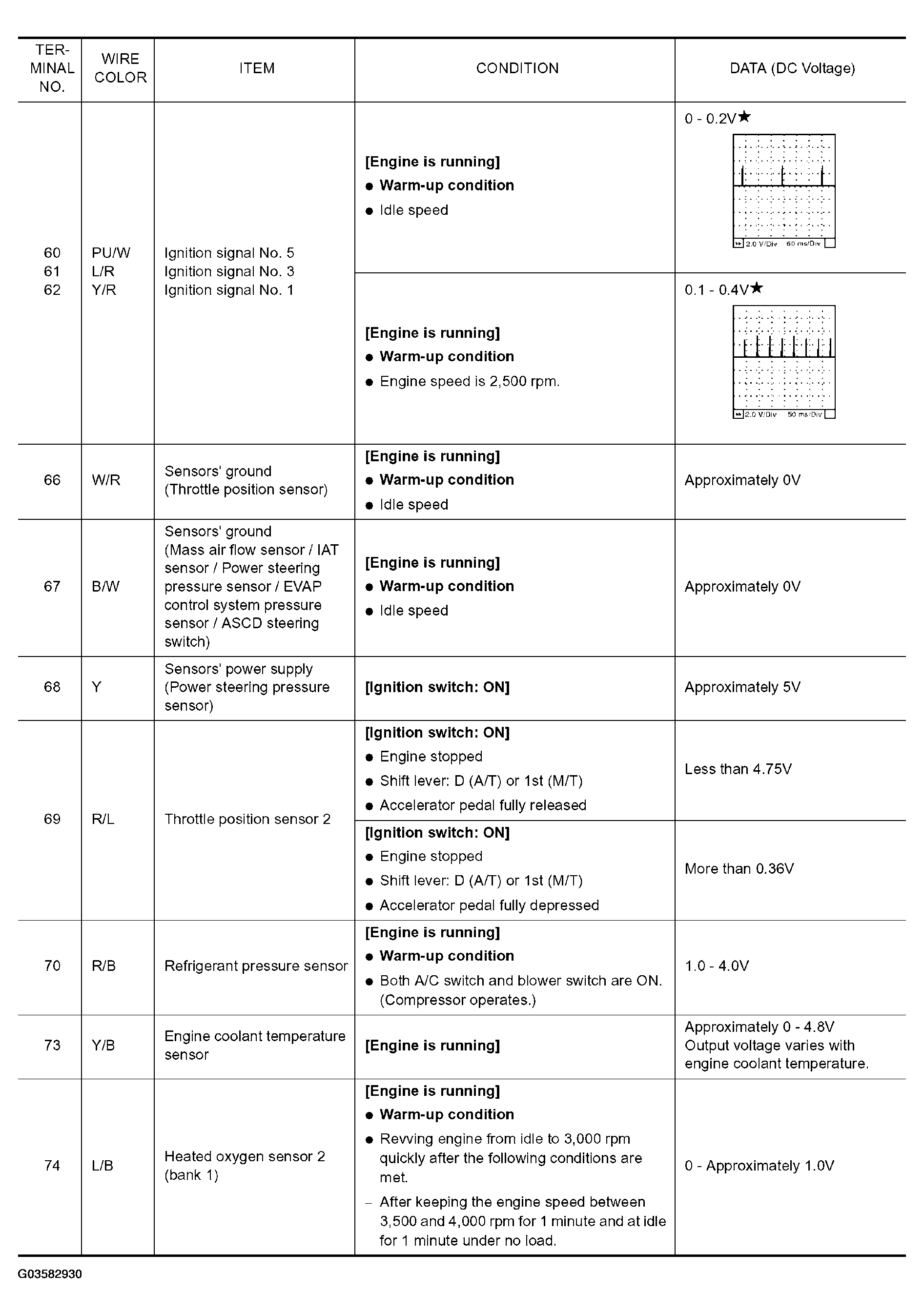

Fig 7: ECM Terminal/Circuit Identification (7 Of 10)

G03582930

Courtesy of NISSAN MOTOR CO., U.S.A.

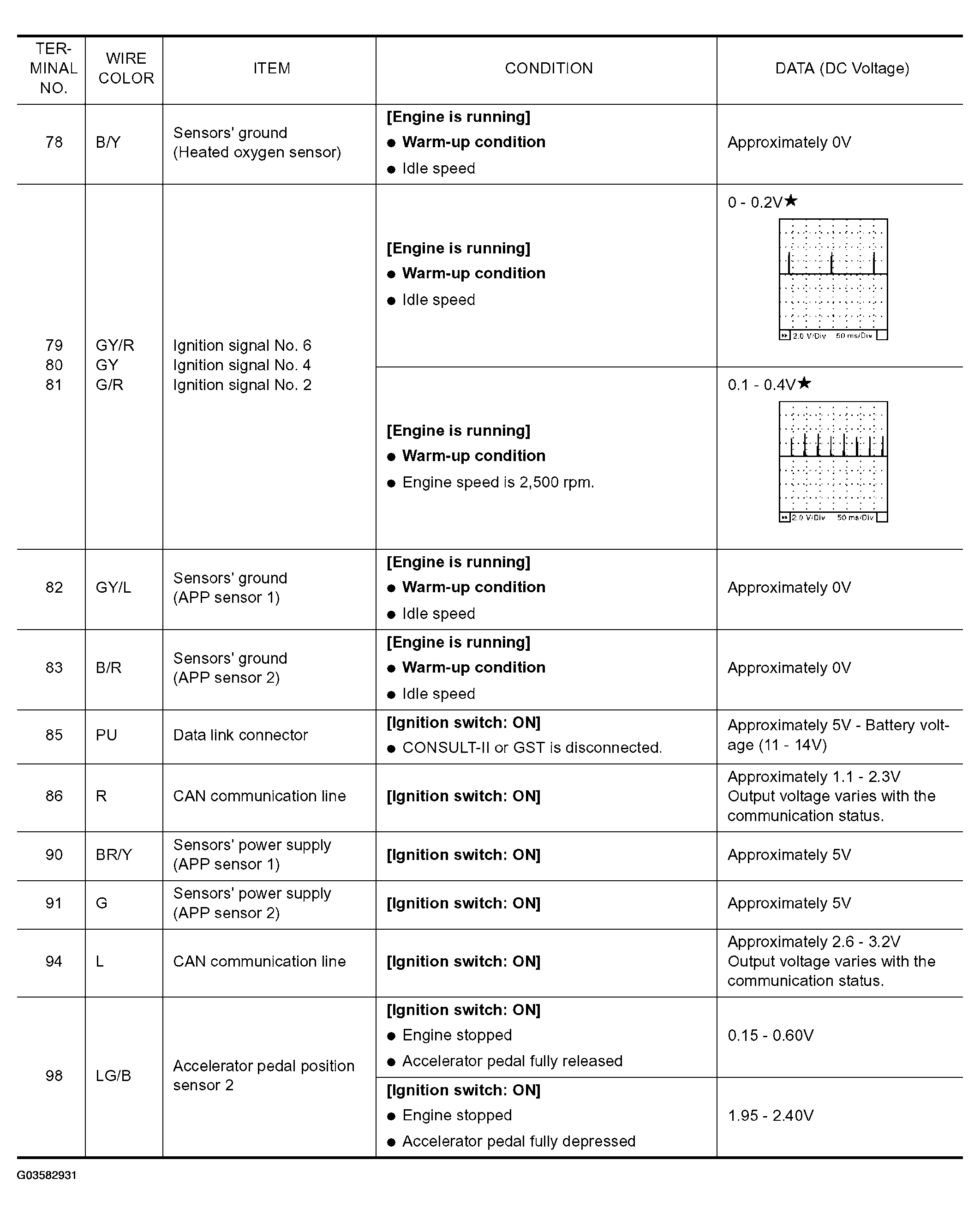

Fig 8: ECM Terminal/Circuit Identification (8 Of 10)

G03582931

Courtesy of NISSAN MOTOR CO., U.S.A.

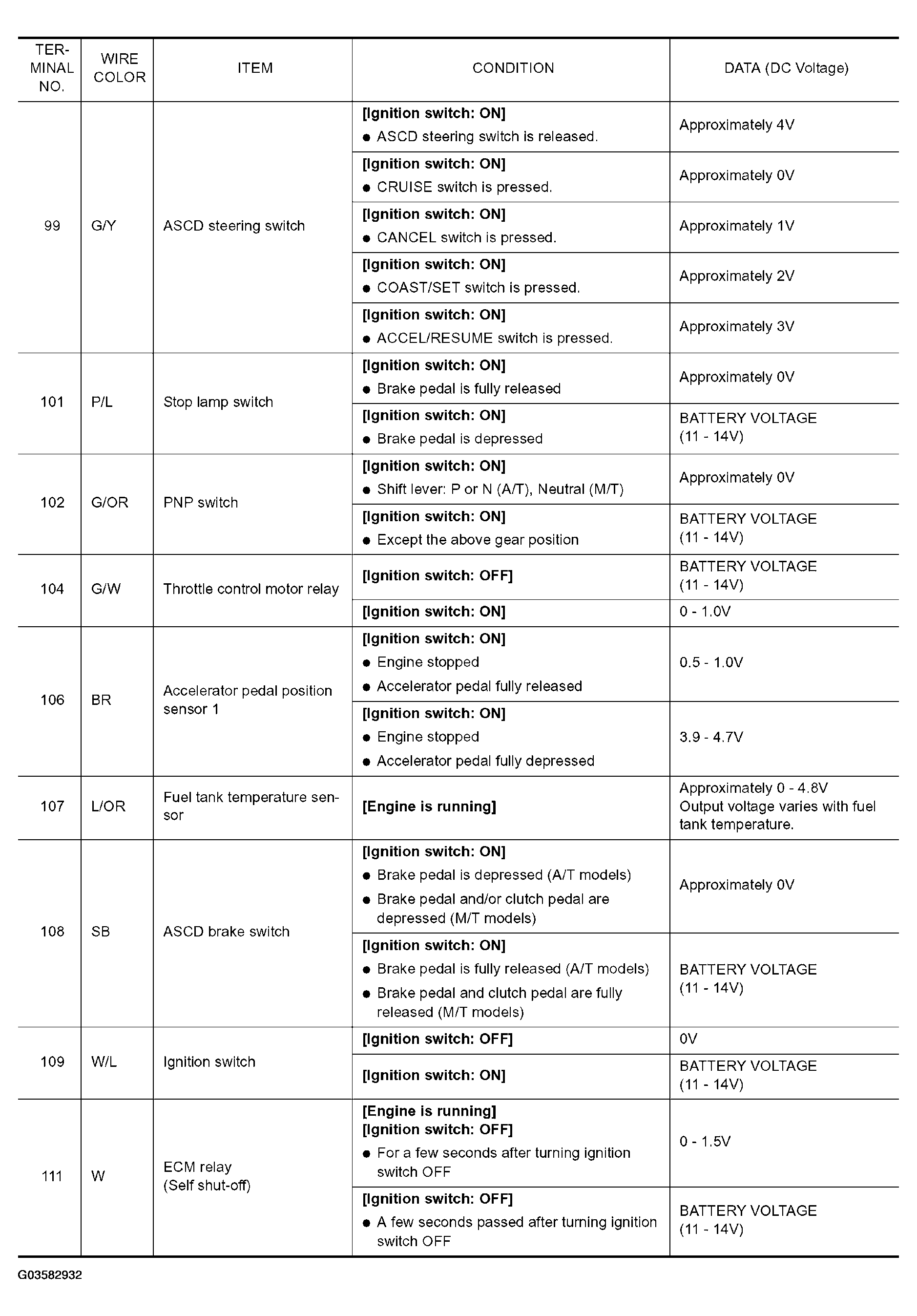

Fig 9: ECM Terminal/Circuit Identification (9 Of 10)

G03582932

Courtesy of NISSAN MOTOR CO., U.S.A.

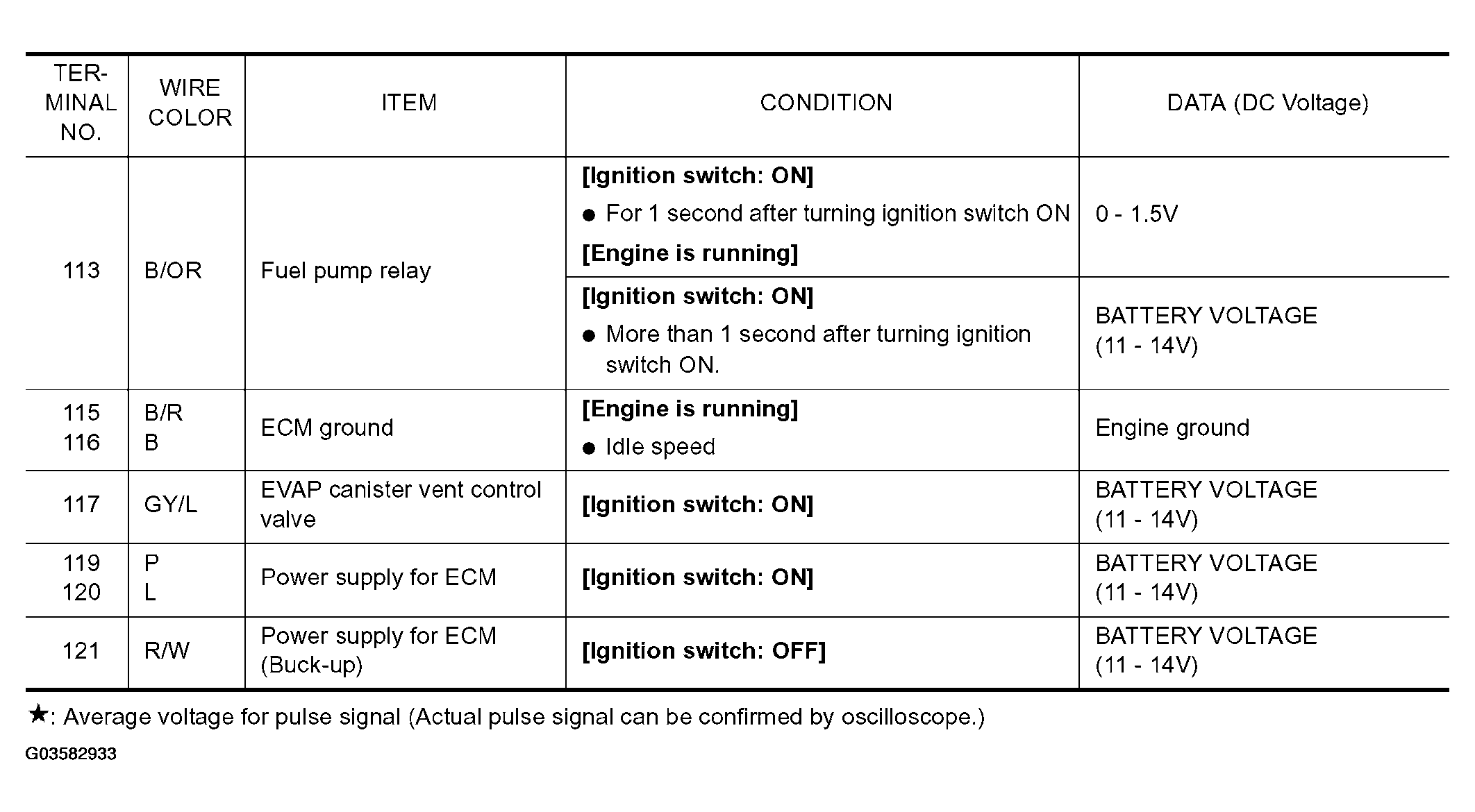

Fig 10: ECM Terminal/Circuit Identification (10 Of 10)

G03582933

Courtesy of NISSAN MOTOR CO., U.S.A.
