Inspection After Installation

After installing steering column in the vehicle, check tilt mechanism operation and tilt range is as shown in the figure.

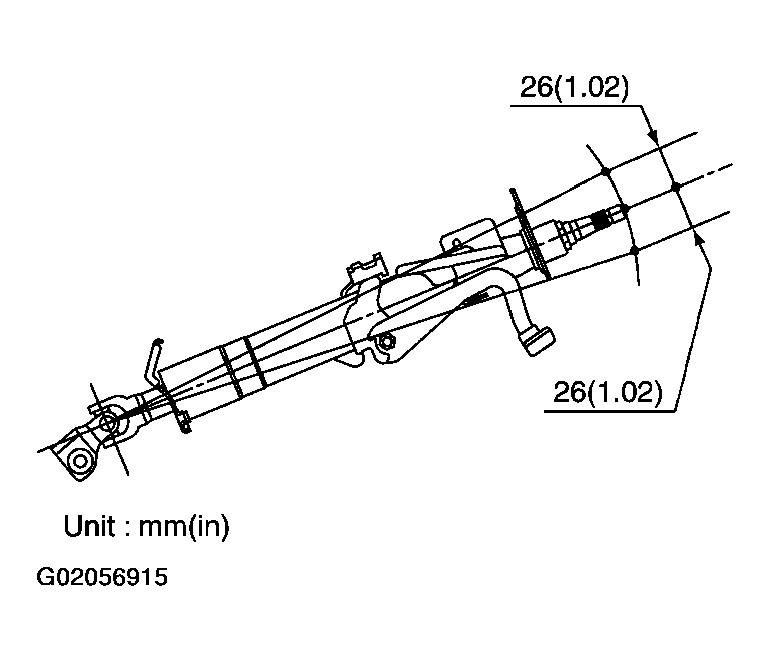

Fig 1: Checking Tilt And Telescopic Mechanism Operating Range
Courtesy of NISSAN MOTOR CO., U.S.A.
When steering wheel does not turn smoothly, check the steering column as follows and replace damaged parts.
1. Check column bearings for damage or unevenness. Lubricate with recommended multi-purpose grease or replace steering column as an assembly, if necessary.
