With Consult-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Turn ignition switch OFF, wait at least 10 seconds.
  4. Turn ignition switch ON.
  5. Repeat steps 3 and 4 for 32 times.
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

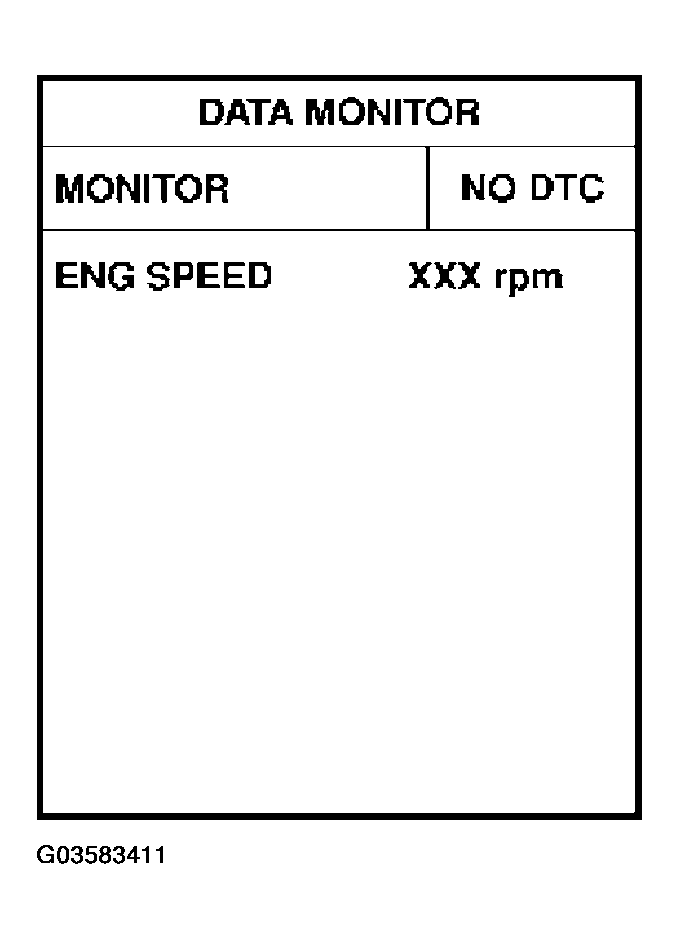

    Fig 1: Consult-II Data Monitor Display
    G03583411Courtesy of NISSAN MOTOR CO., U.S.A.
