Removal and Installation: Removal

  1. Remove driver-side lower instrument panel. Refer to INSTRUMENT PANEL ASSEMBLY .
  2. Remove VDC/TCS/ABS control unit.

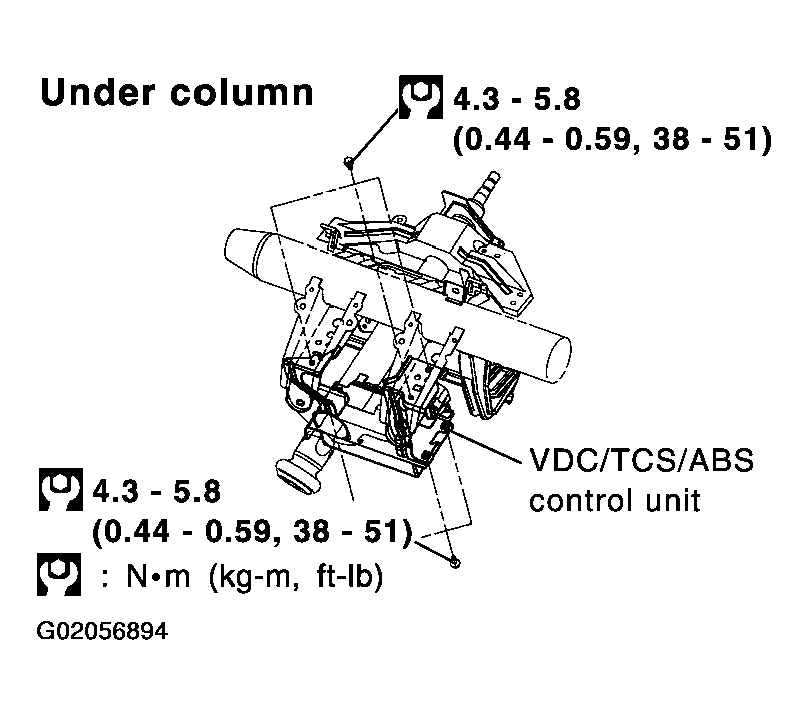

    Fig 1: Installing VDC/TCS/ABS Control Unit
    G02056894Courtesy of NISSAN MOTOR CO., U.S.A.
