Operation Procedure

CAUTION:
  • Do not perform active test while driving the vehicle.
  • Make sure to completely bleed air from brake system.
  • Active test cannot be performed when ABS warning lamp is on.
  1. Connect CONSULT-II and CONSULT-II CONVERTER to connector to data link connector and start the engine.
  2. Touch "START" on the display.
  3. Touch "ABS" and "ACTIVE TEST".

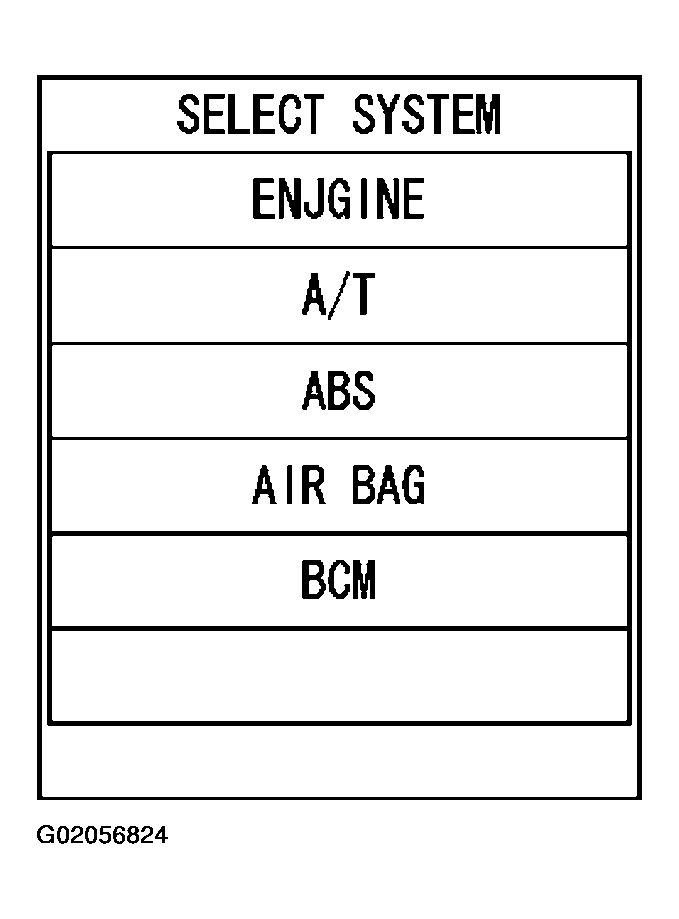

    Fig 1: Consult II Display - Select System
    G02056824Courtesy of NISSAN MOTOR CO., U.S.A.

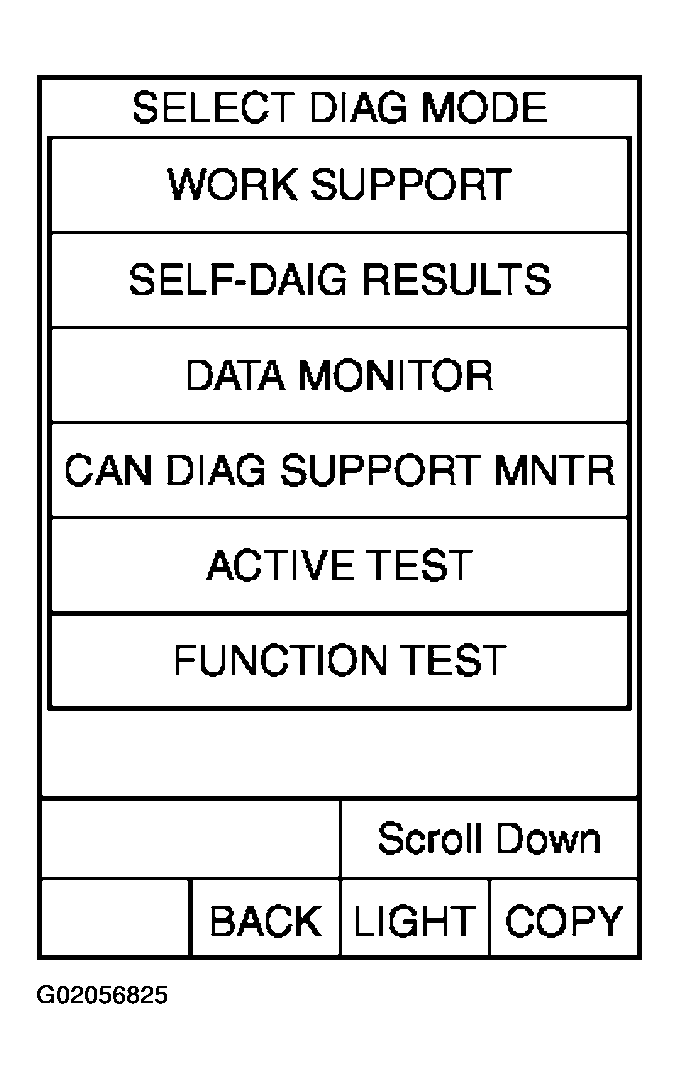

    Fig 2: Consult II Display - Active Test
    G02056825Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Test item selection screen is displayed.
  5. Touch necessary test item.

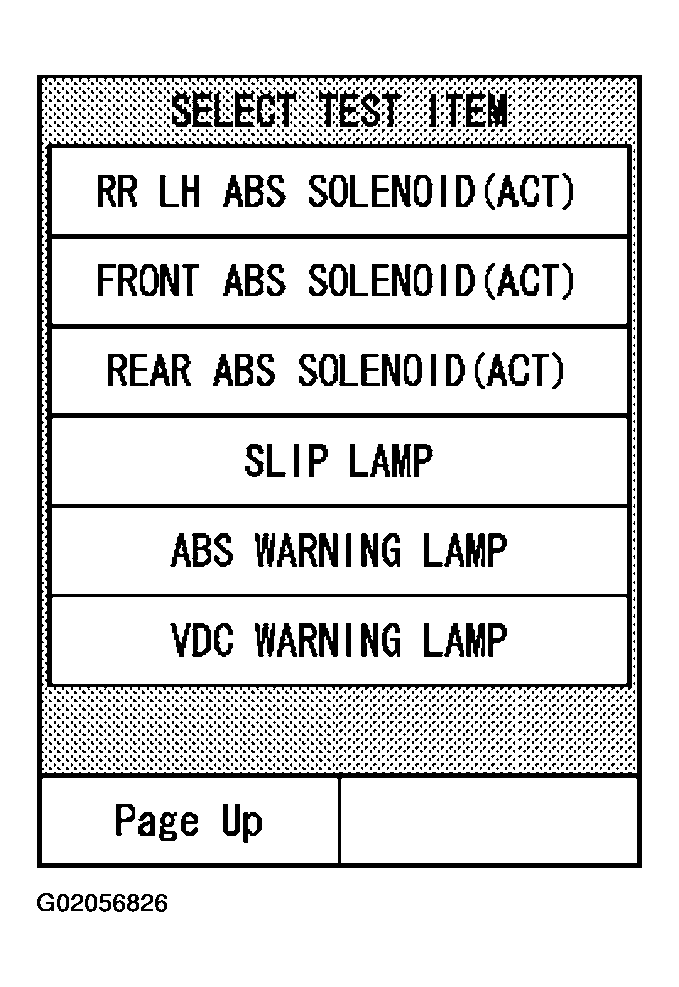

    Fig 3: Consult II Display - Select Test Item
    G02056826Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "START" with "MAIN SIGNALS" line inverted.

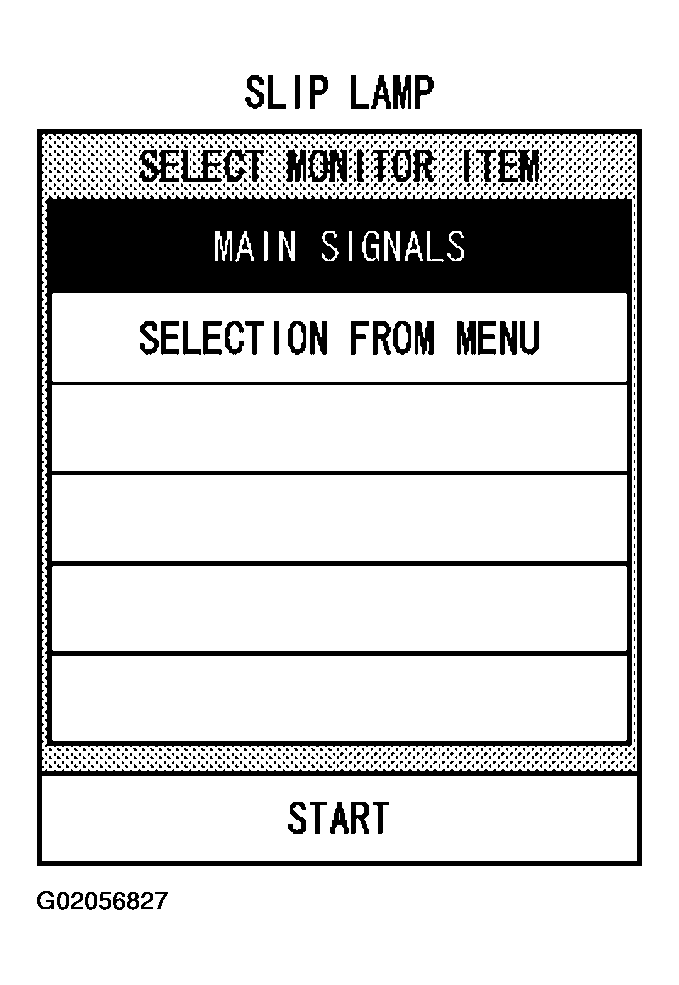

    Fig 4: Consult II Display - Main Signals
    G02056827Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Active test screen is displayed.

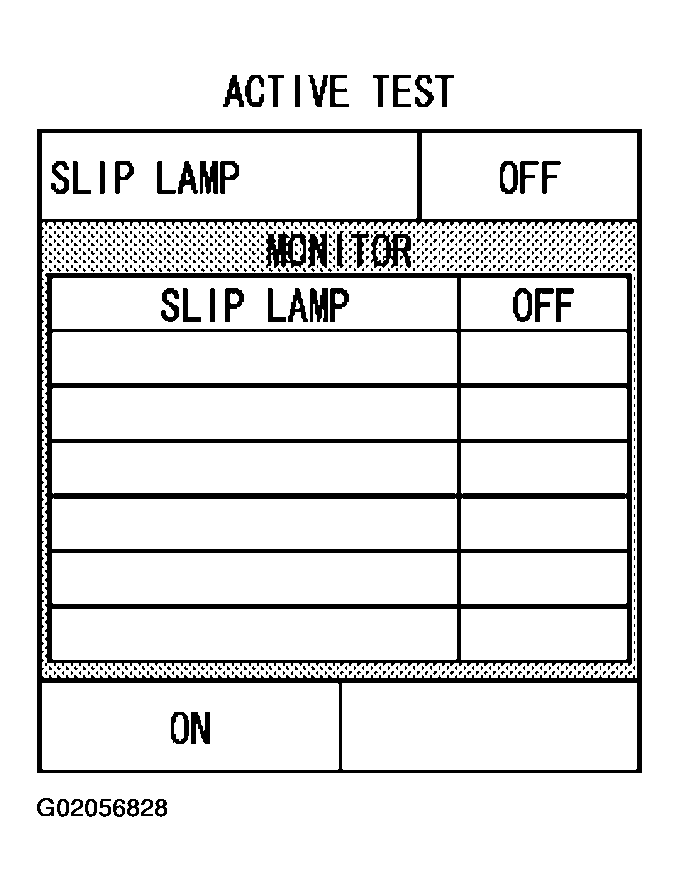

    Fig 5: Consult II Display - Active Test (1 Of 2)
    G02056828Courtesy of NISSAN MOTOR CO., U.S.A.
