M/T Models

  1. Remove center console. Refer to INSTRUMENT PANEL ASSEMBLY .
  2. Disconnect harness connector.
  3. Remove installation bolts. Remove yaw rate/side G-sensor.

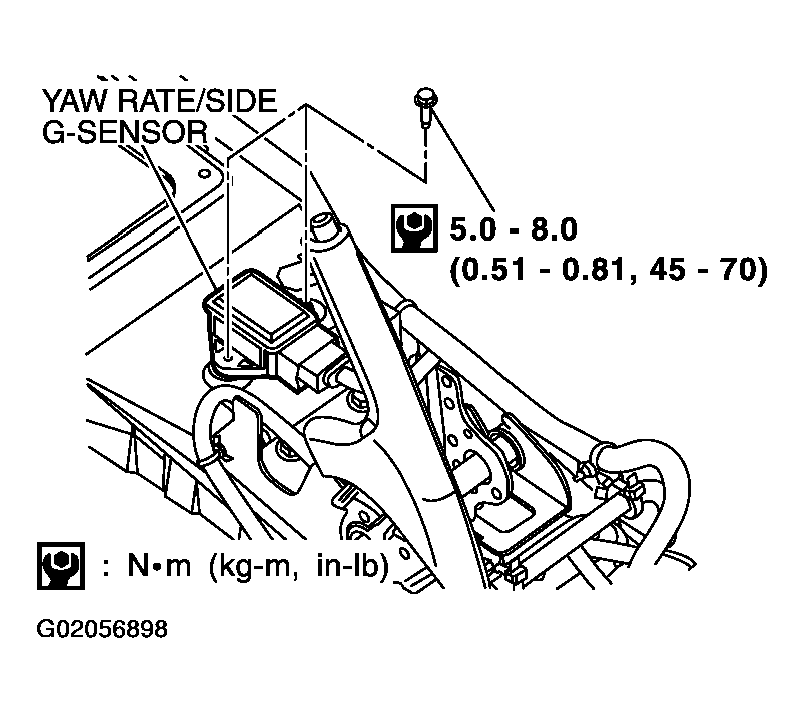

    Fig 1: Removing Yaw Rate/Side G-Sensor
    G02056898Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Do not drop or strike the yaw rate/side G-sensor, because it has little endurance to impact.
