Trouble Diagnoses Symptom Chart

Check that other systems using the signal of the following systems operate normally.

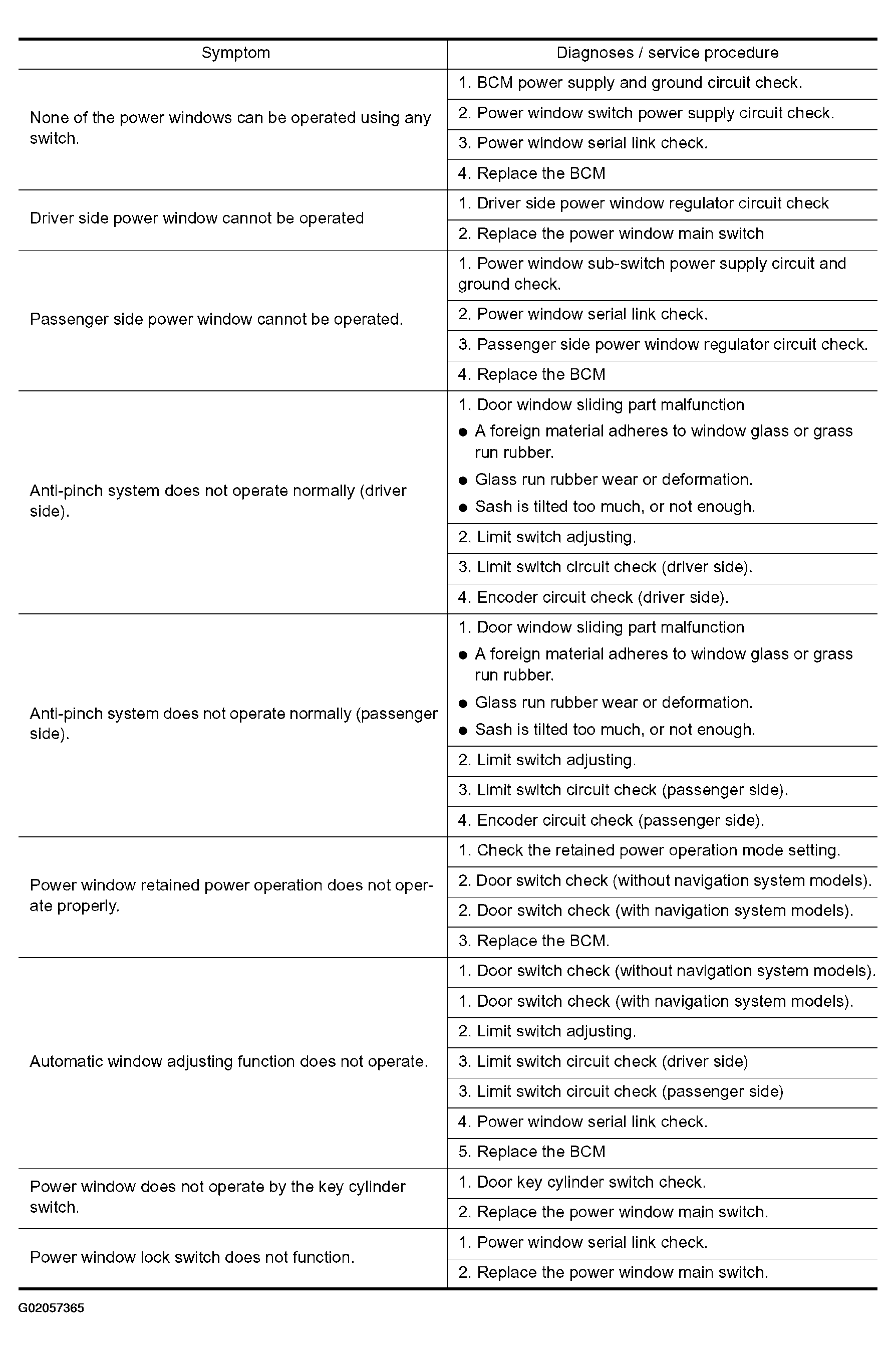

Fig 1: Trouble Diagnoses Symptom Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
