Main Shaft and Electric Controlled Coupling

  1. Fixing needle bearing to main shaft with grease.
  2. Install the sprocket, electric controlled coupling and spacer into main shaft.
    Fig 1: Fixing Needle Bearing To Main Shaft With Grease
    G03106433Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install the snap ring into main shaft.
    CAUTION: Do not reuse snap ring.

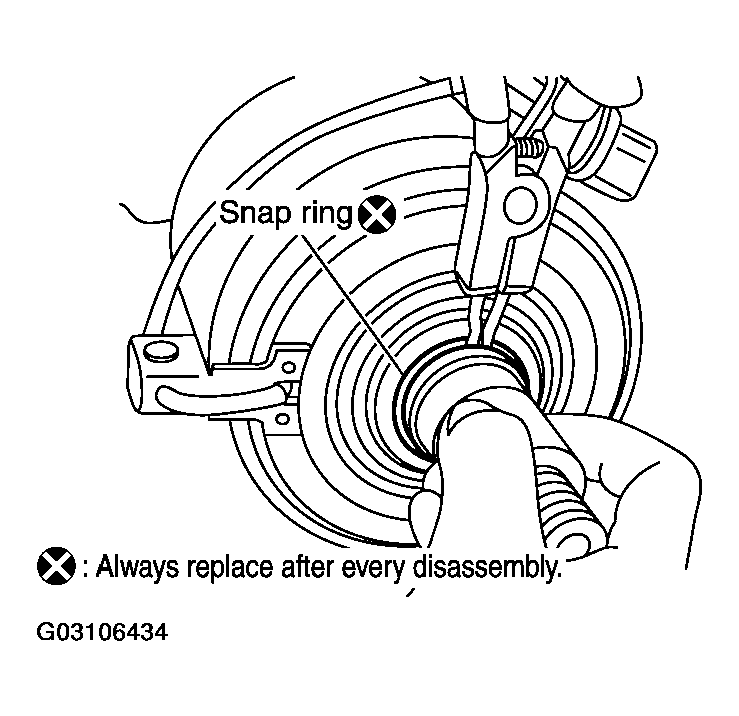

    Fig 2: Installing Snap Ring Into Main Shaft
    G03106434Courtesy of NISSAN MOTOR CO., U.S.A.
