Display Item List

WARNING: This page is about a different car, the 2004 Infiniti FX45 and 2004 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

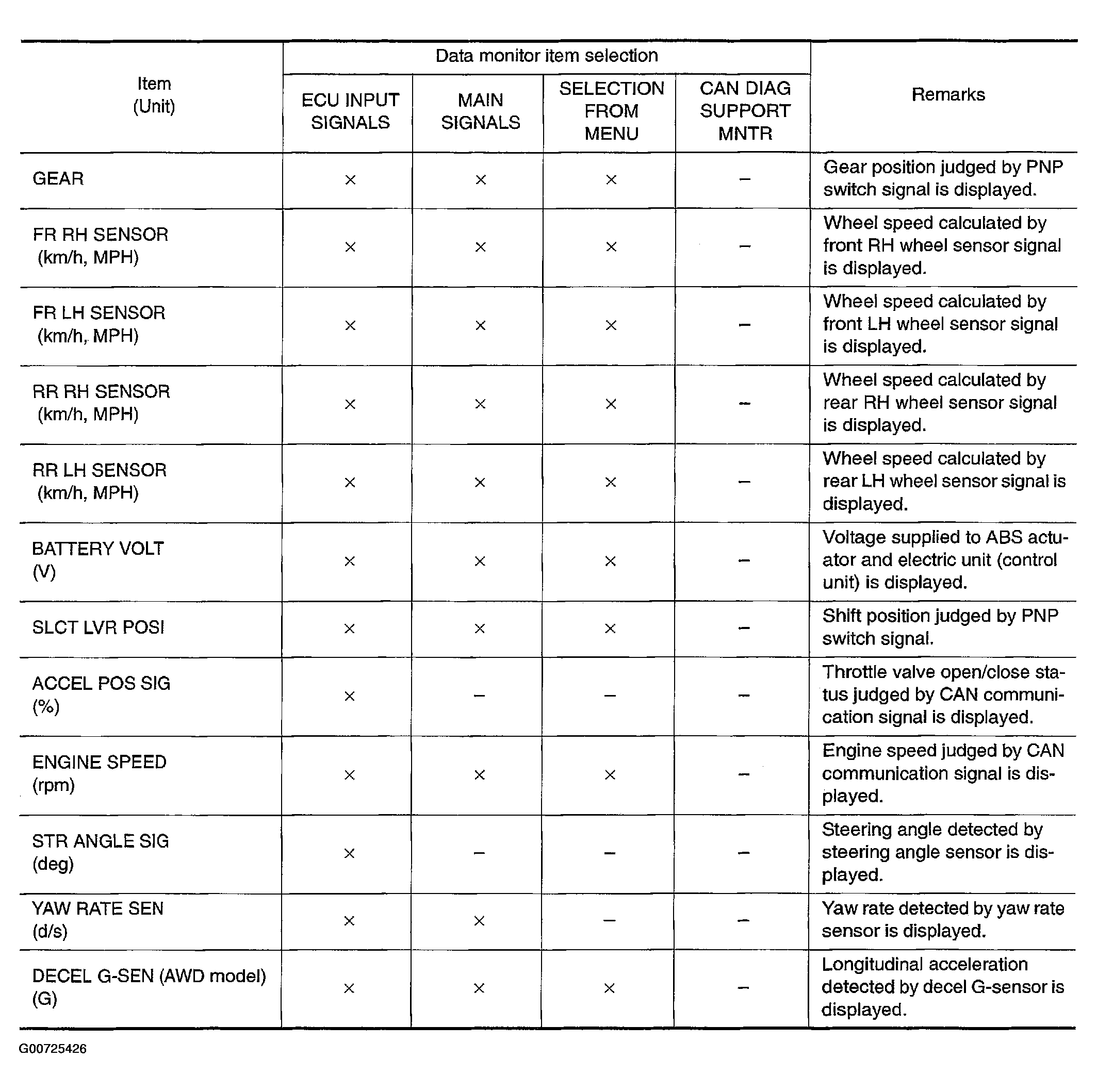

Fig 1: Displaying Data Monitor Items (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

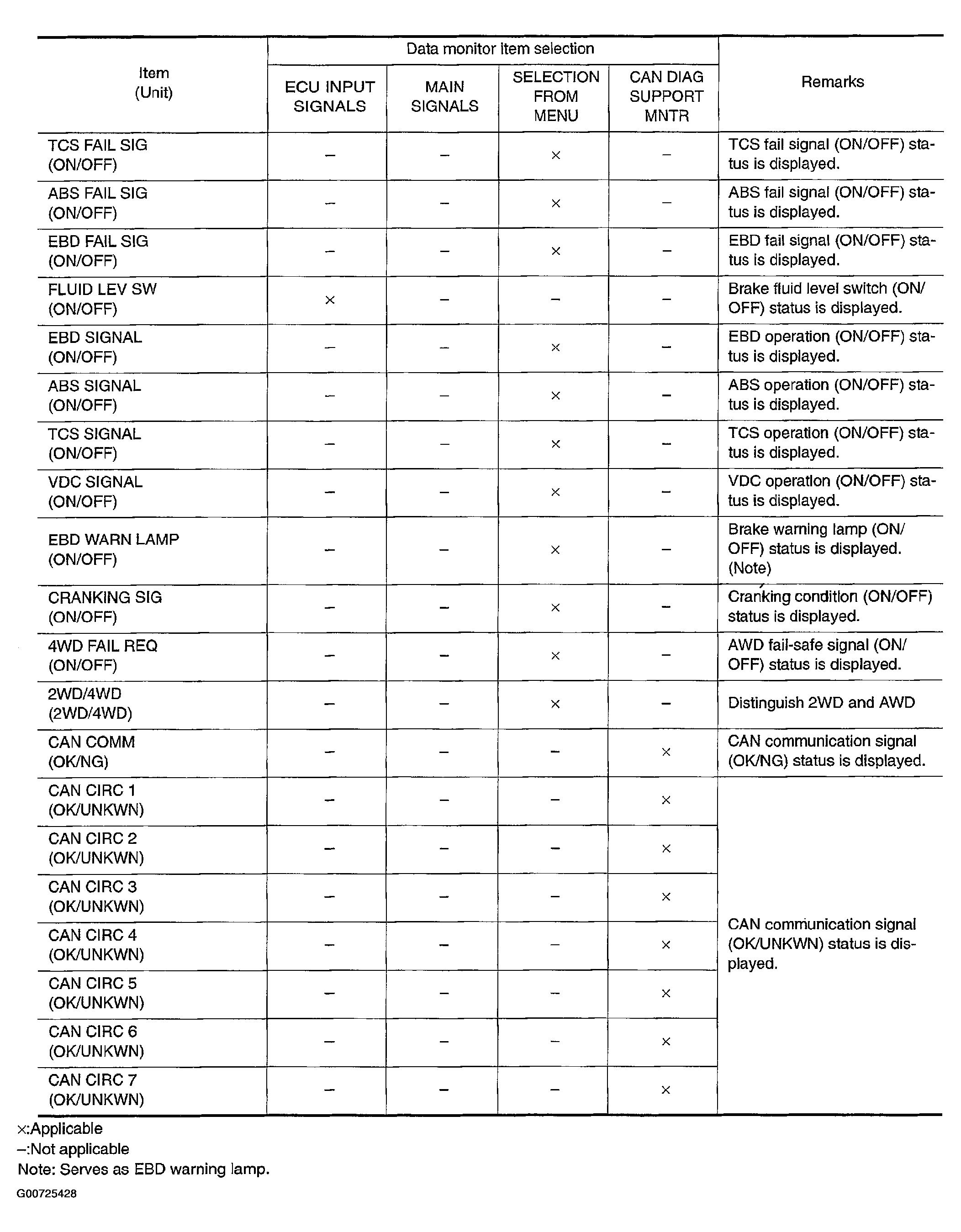

Fig 2: Displaying Data Monitor Items (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Displaying Data Monitor Items (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
