Diagnostic Procedure

For wiring diagram, see Figure . For diagnostic procedure, see Fig 1 and Fig 2 .

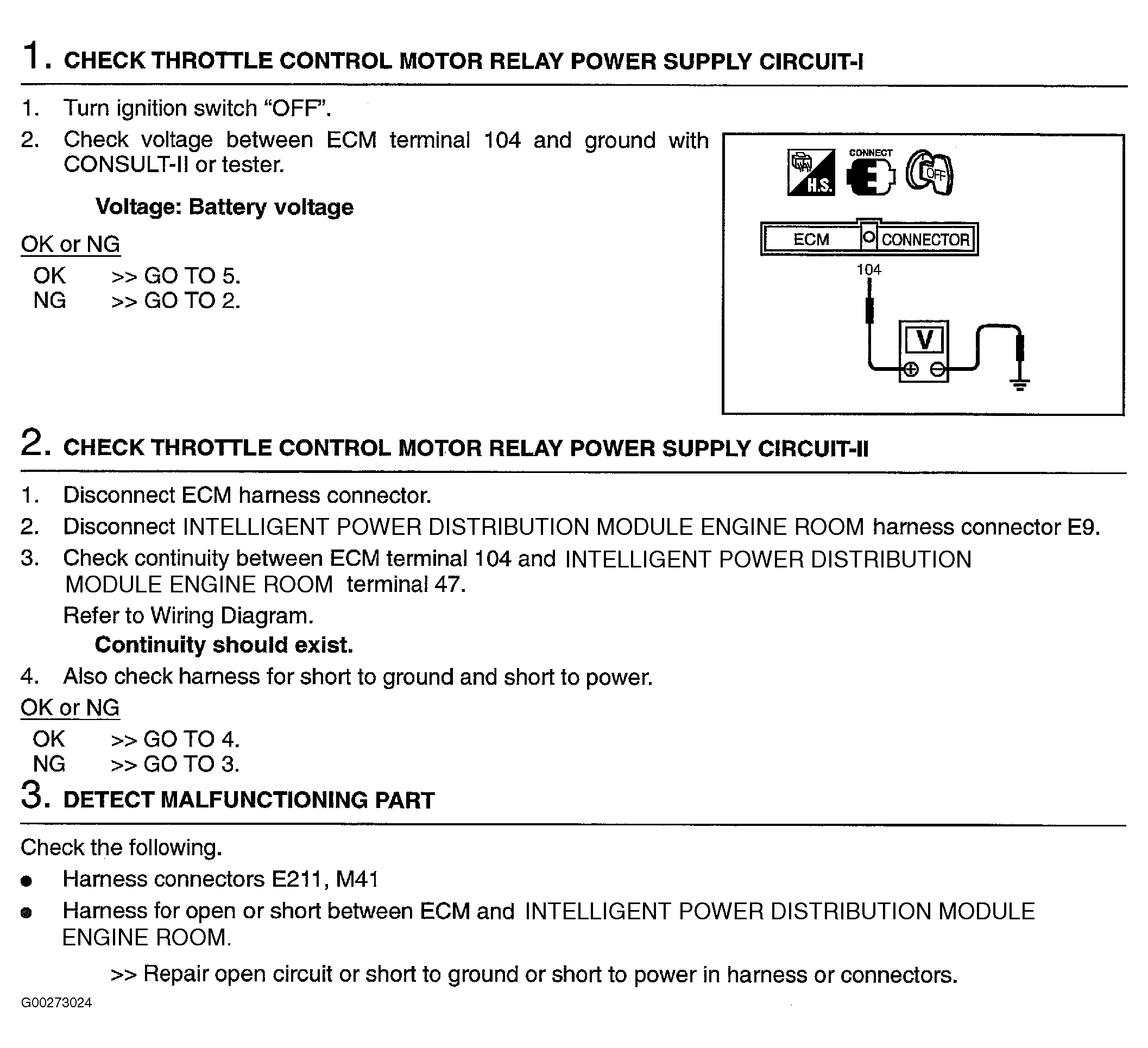

Fig 1: Diagnostic Procedure For Throttle Control Motor Relay (Step 1-3)
G00273024Courtesy of NISSAN MOTOR CO., U.S.A.

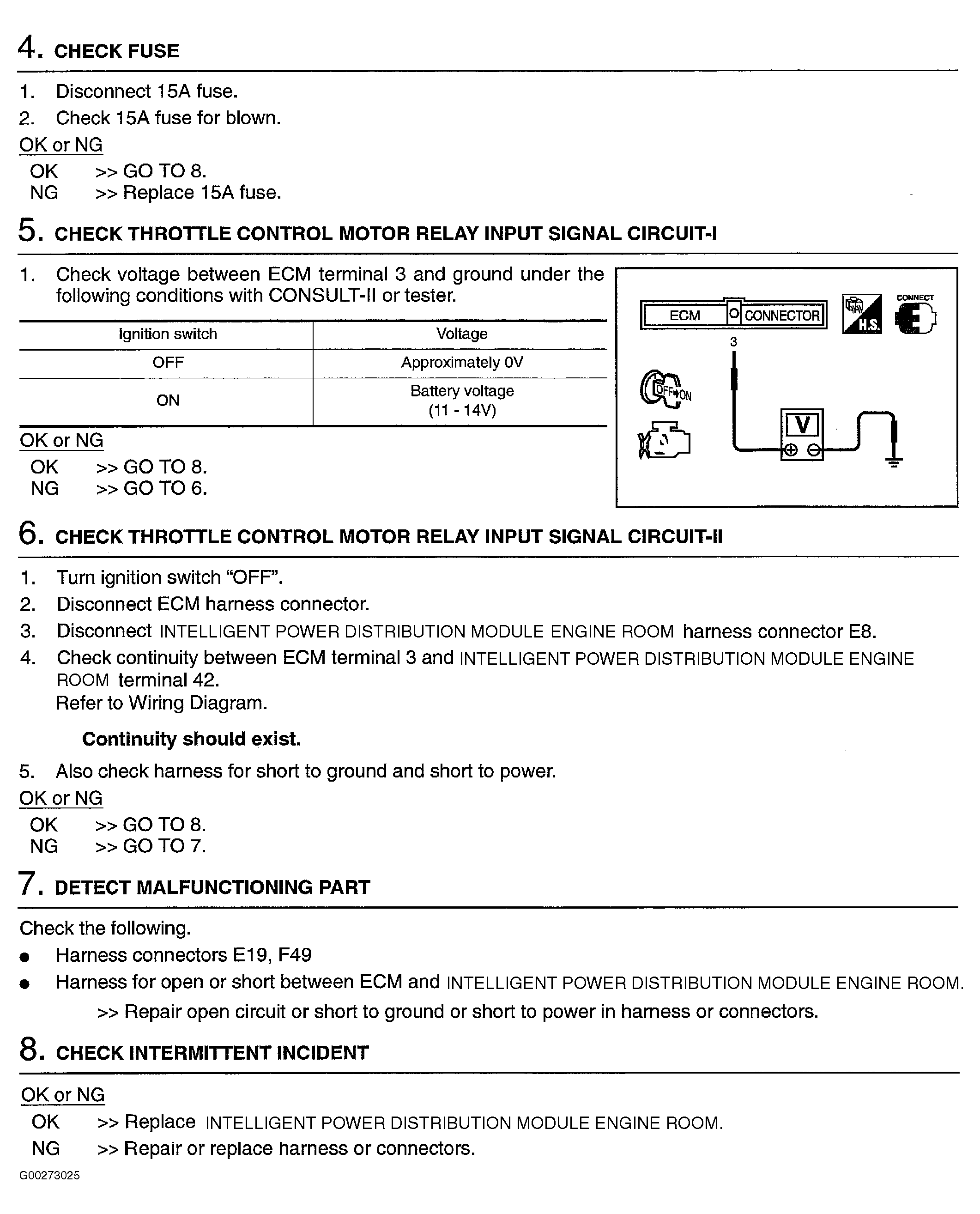

Fig 2: Diagnostic Procedure For Throttle Control Motor Relay (Step 4-8)
G00273025Courtesy of NISSAN MOTOR CO., U.S.A.
