Diagnostic Procedure

For diagnostic procedure, see Fig 1 -Fig 5 .

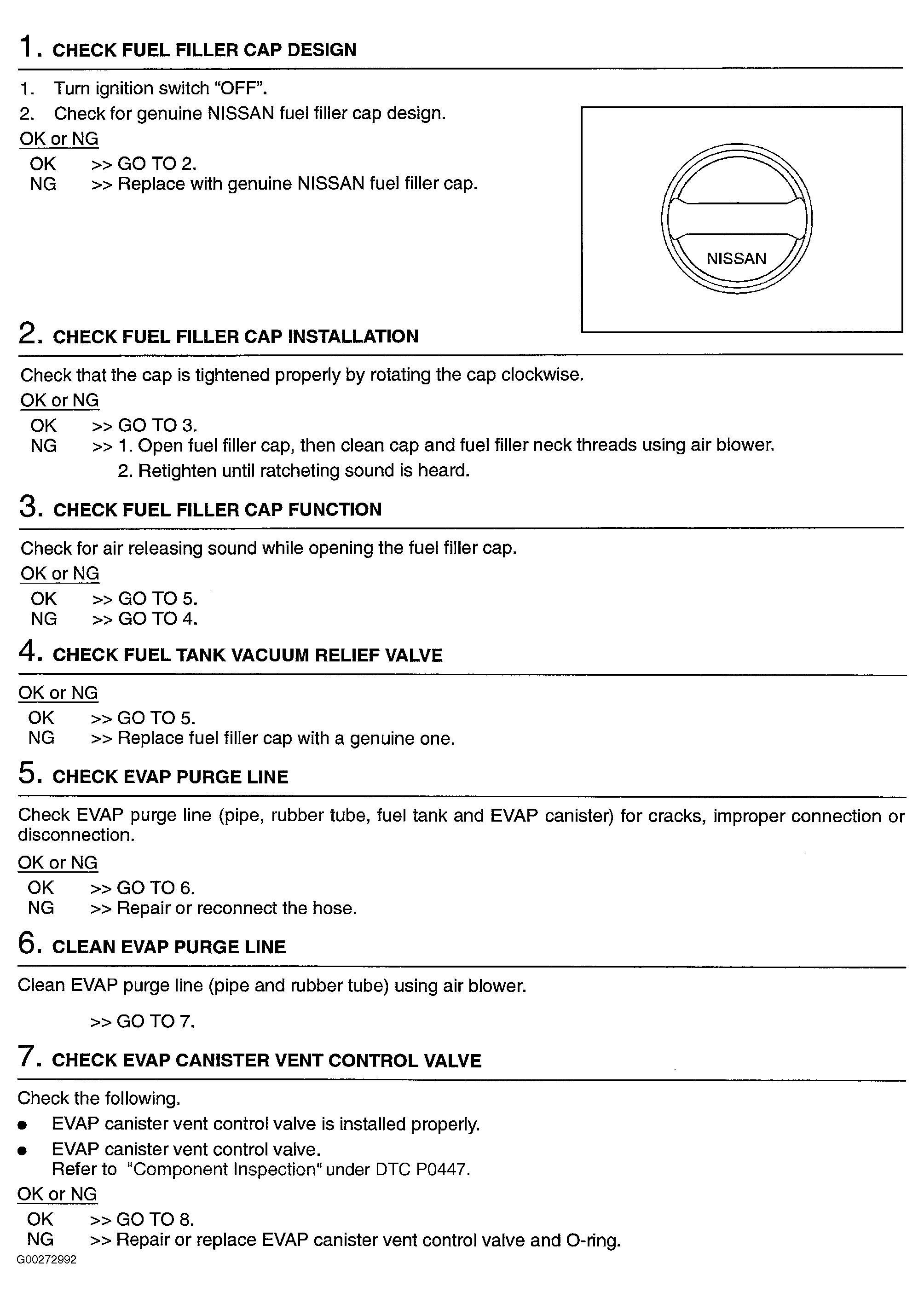

Fig 1: Diagnostic Procedure For EVAP Control System (Step 1-7)

Courtesy of NISSAN MOTOR CO., U.S.A.

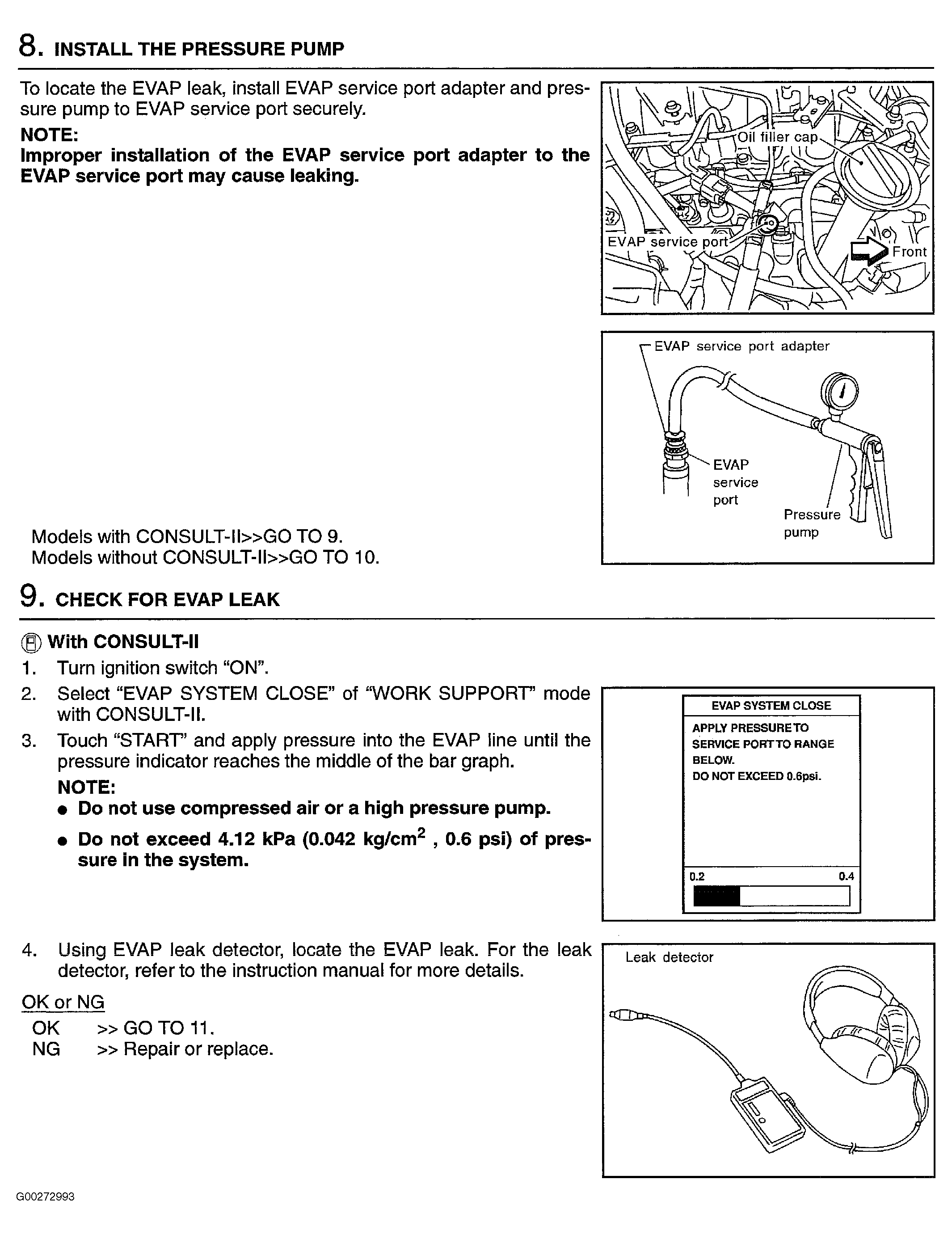

Fig 2: Diagnostic Procedure For EVAP Control System (Step 8-9)

Courtesy of NISSAN MOTOR CO., U.S.A.

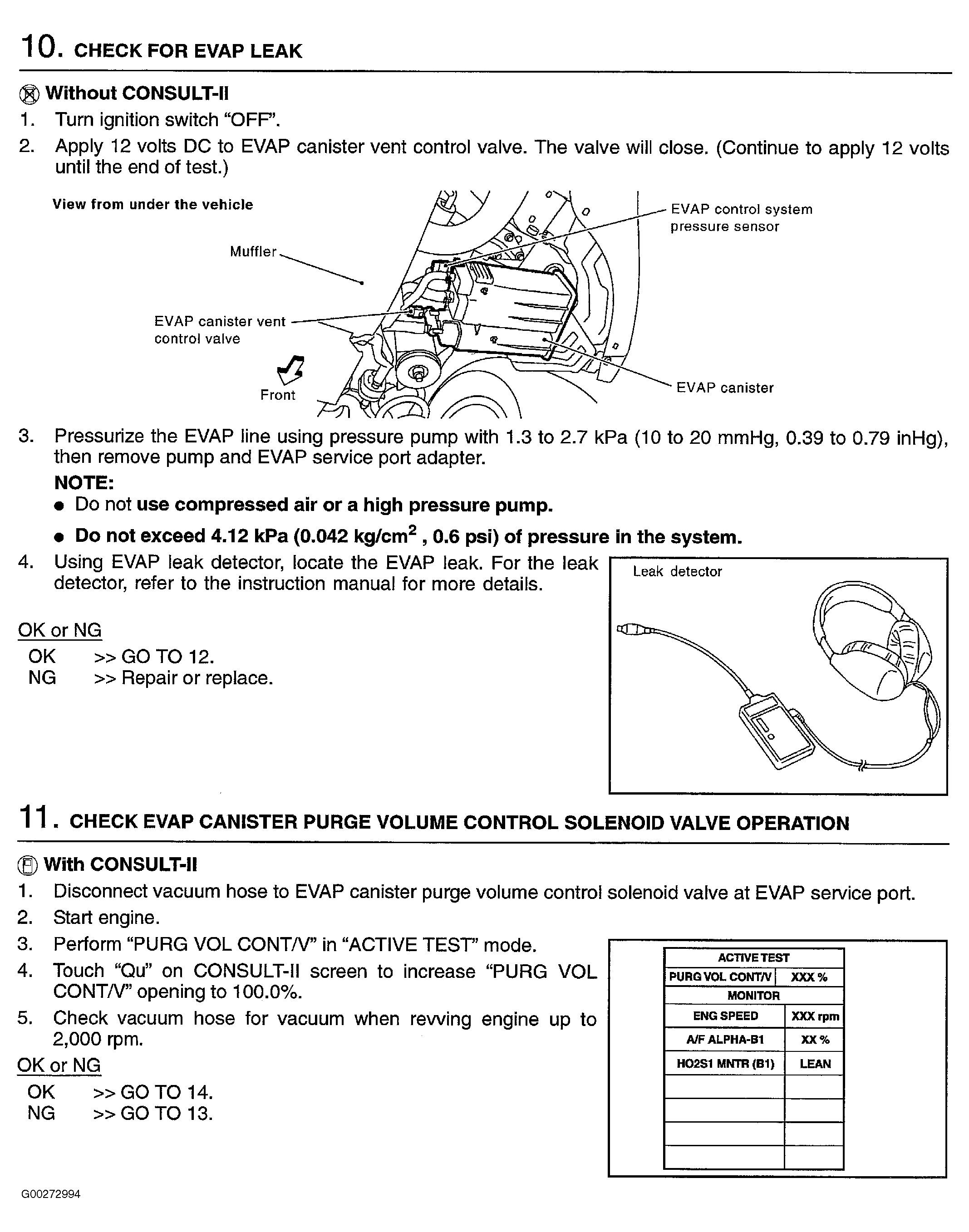

Fig 3: Diagnostic Procedure For EVAP Control System (Step 10-11)

Courtesy of NISSAN MOTOR CO., U.S.A.

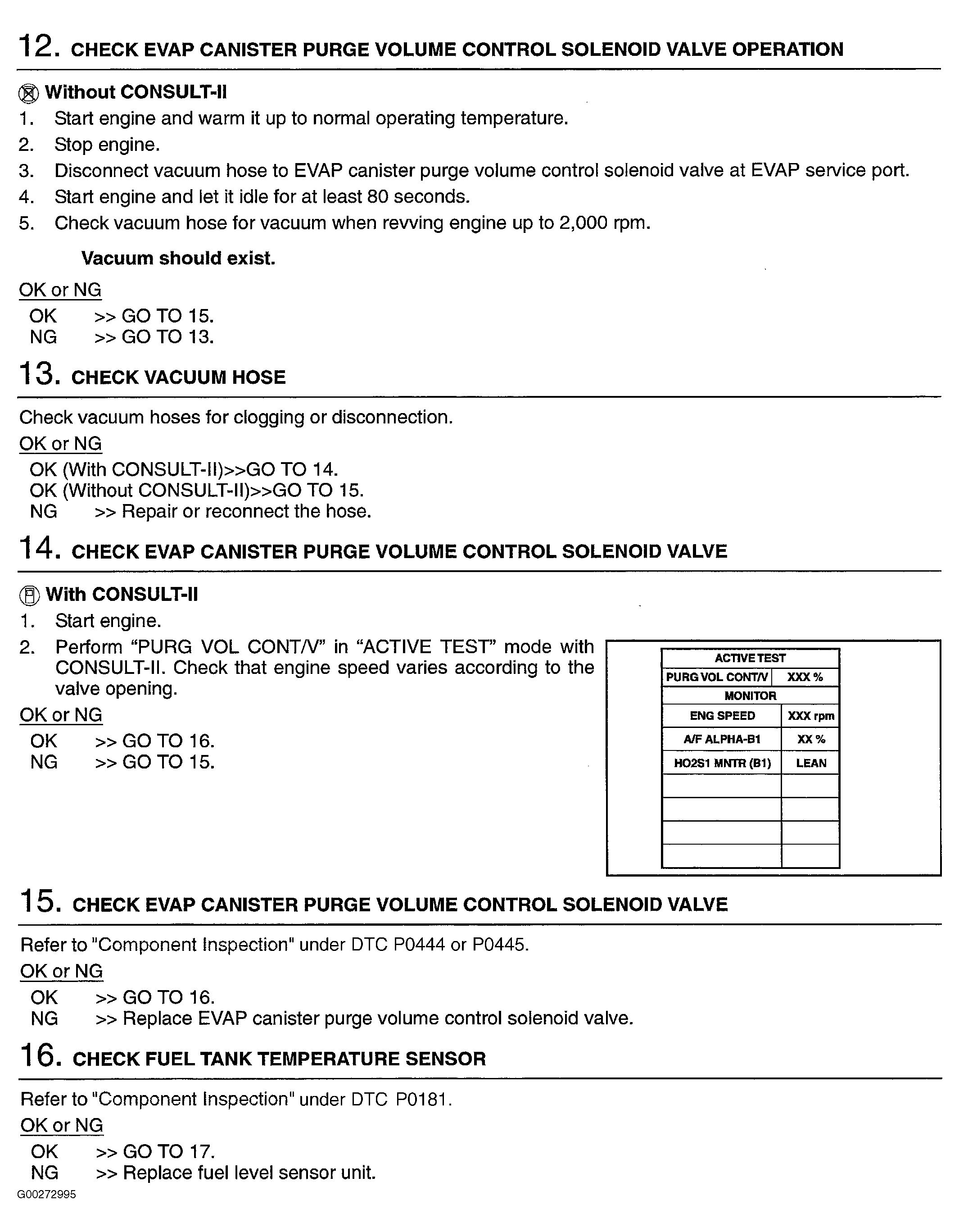

Fig 4: Diagnostic Procedure For EVAP Control System (Step 12-16)

Courtesy of NISSAN MOTOR CO., U.S.A.

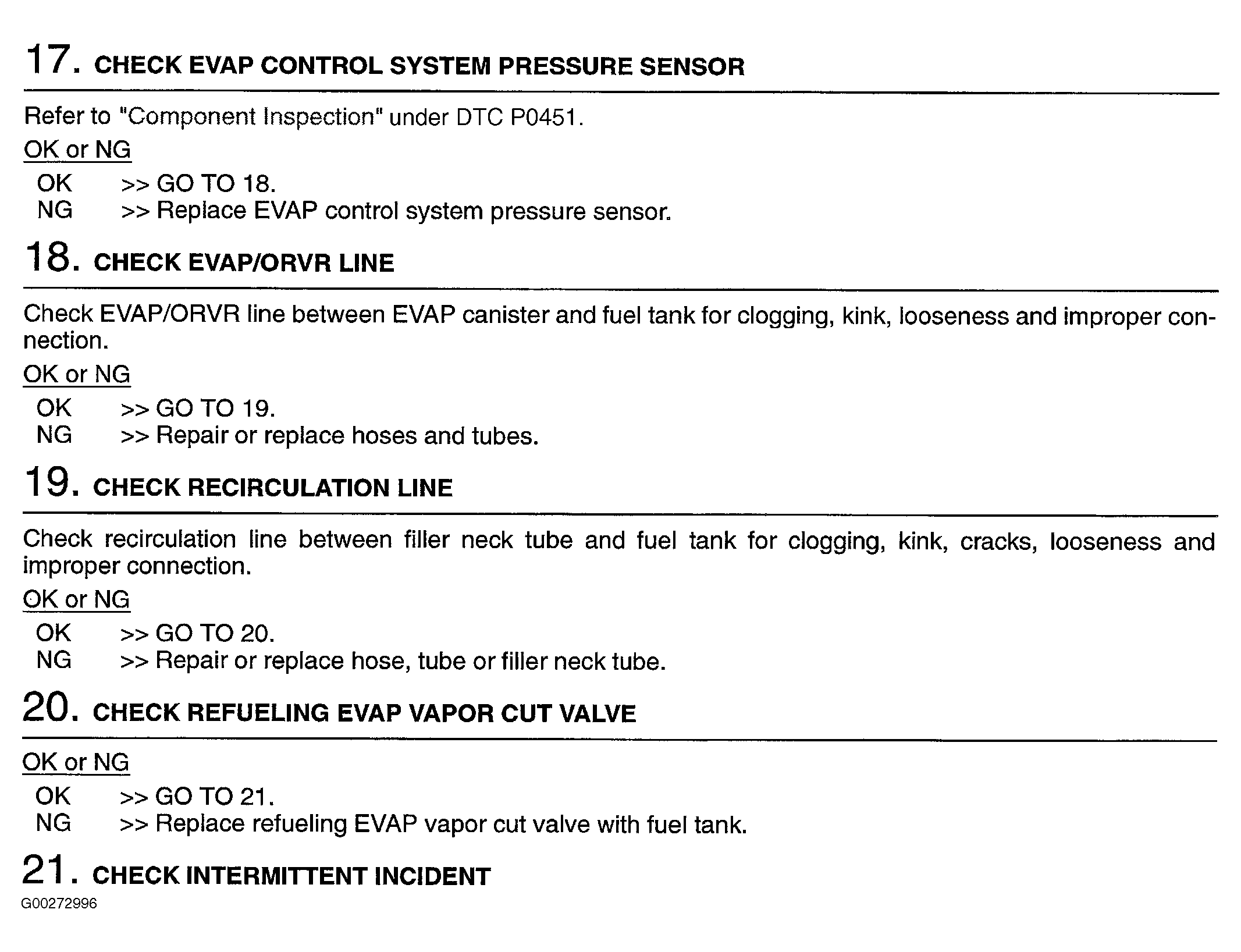

Fig 5: Diagnostic Procedure For EVAP Control System (Step 17-21)

Courtesy of NISSAN MOTOR CO., U.S.A.
