Diagnostic Procedure

For diagnostic procedure, see Fig 1 -Fig 5 .

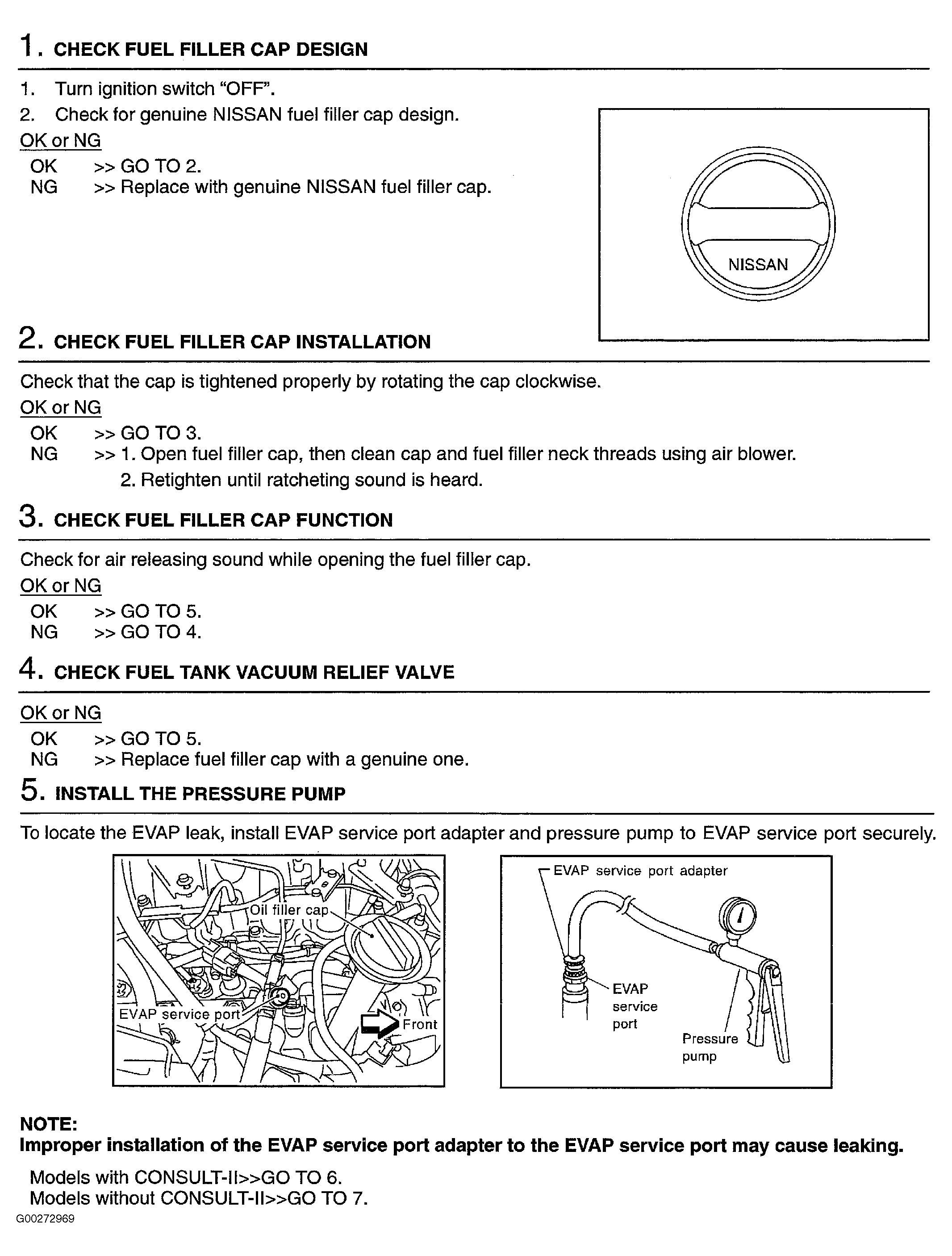

Fig 1: Diagnostic Procedure For EVAP Control System (Step 1-5)
G00272969Courtesy of NISSAN MOTOR CO., U.S.A.

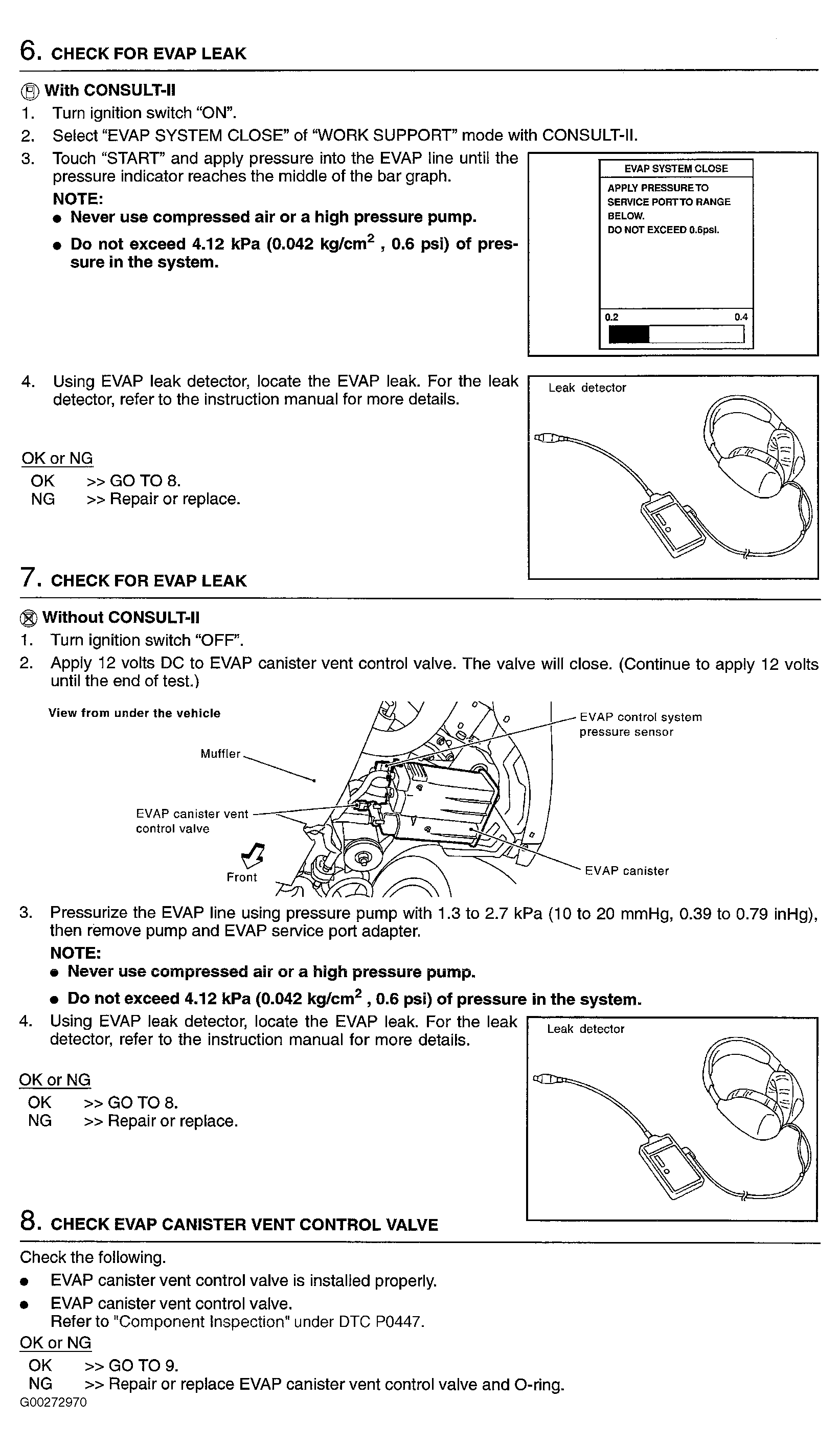

Fig 2: Diagnostic Procedure For EVAP Control System (Step 6-8)
G00272970Courtesy of NISSAN MOTOR CO., U.S.A.

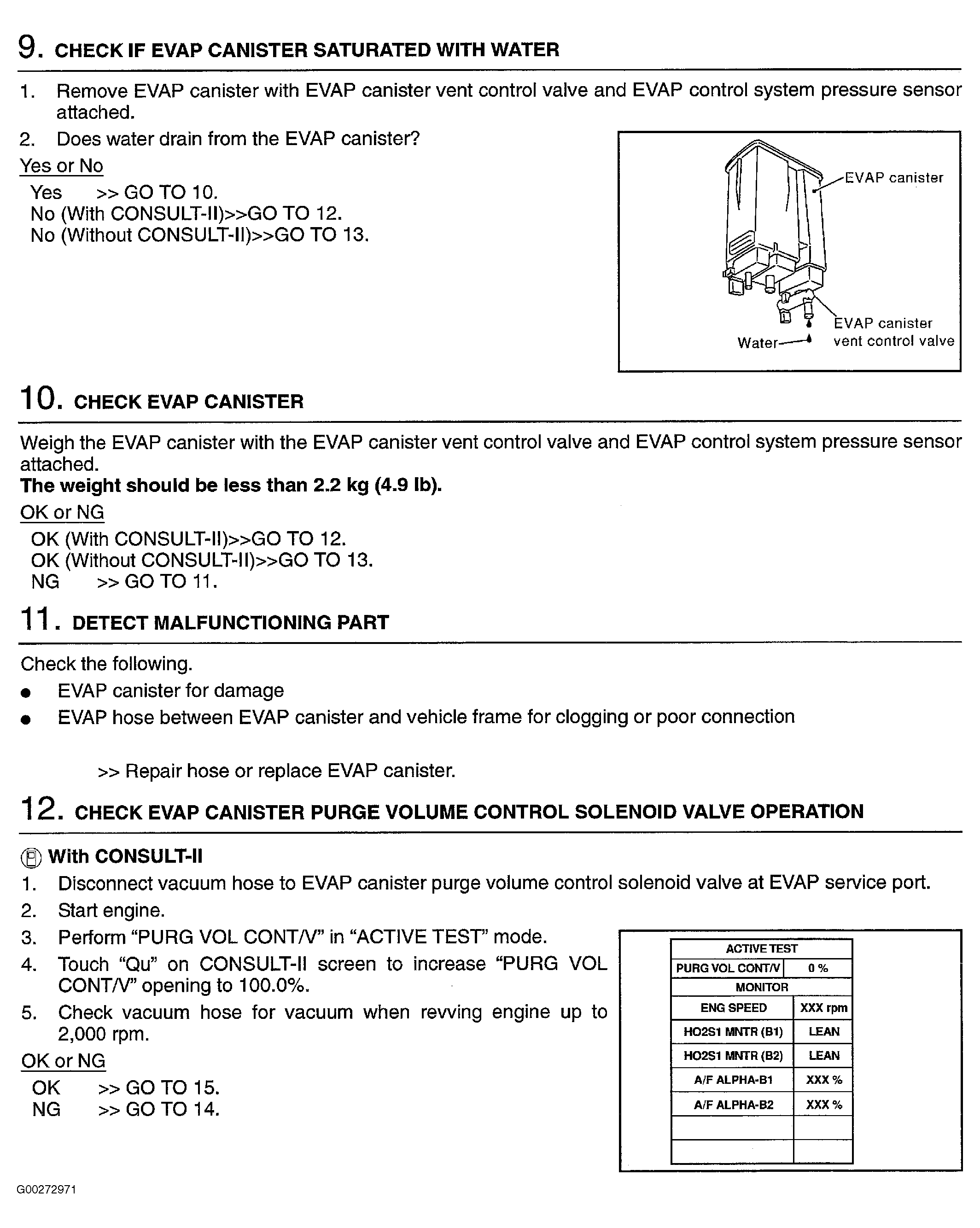

Fig 3: Diagnostic Procedure For EVAP Control System (Step 9-12)
G00272971Courtesy of NISSAN MOTOR CO., U.S.A.

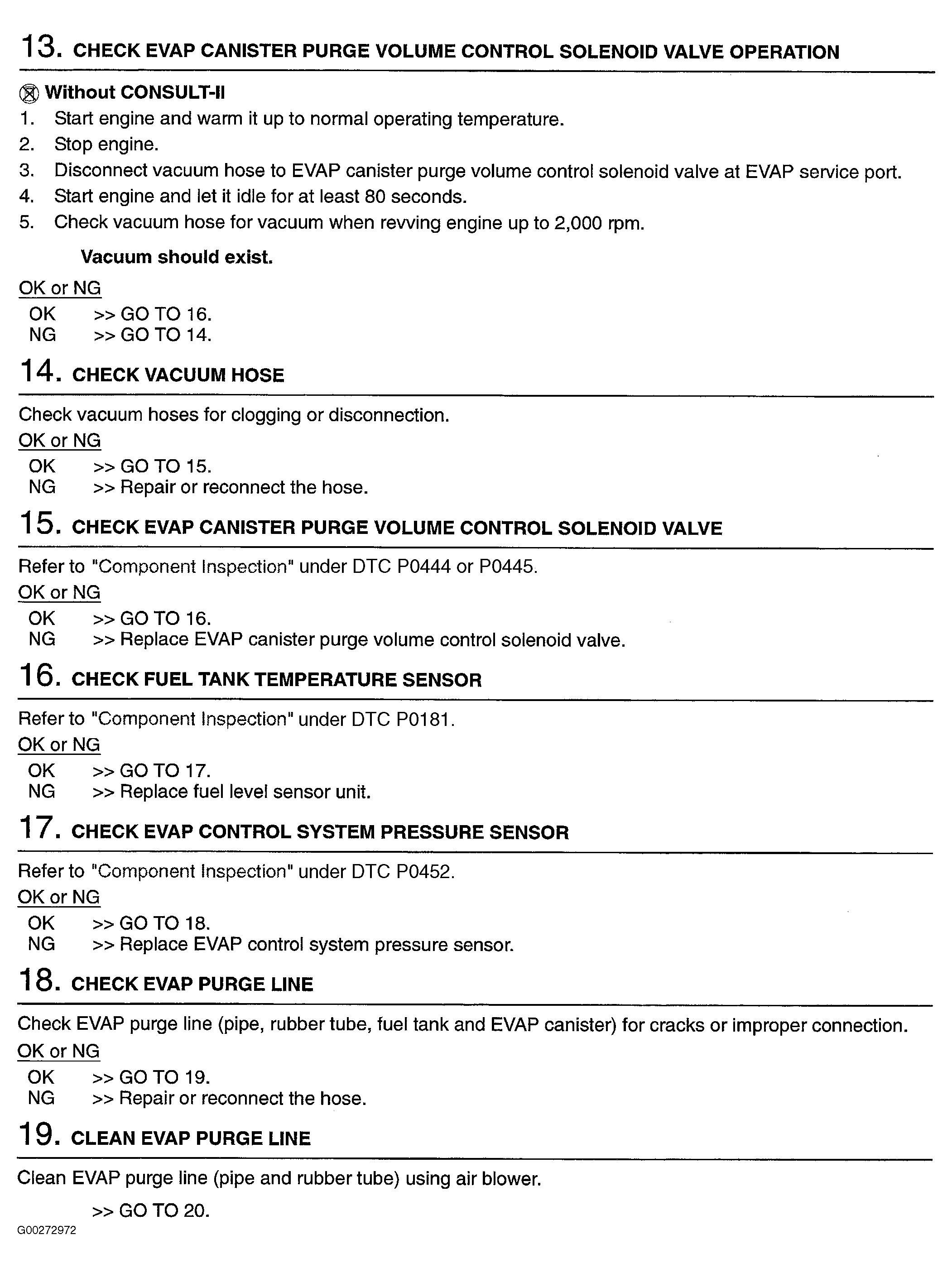

Fig 4: Diagnostic Procedure For EVAP Control System (Step 13-19)
G00272972Courtesy of NISSAN MOTOR CO., U.S.A.

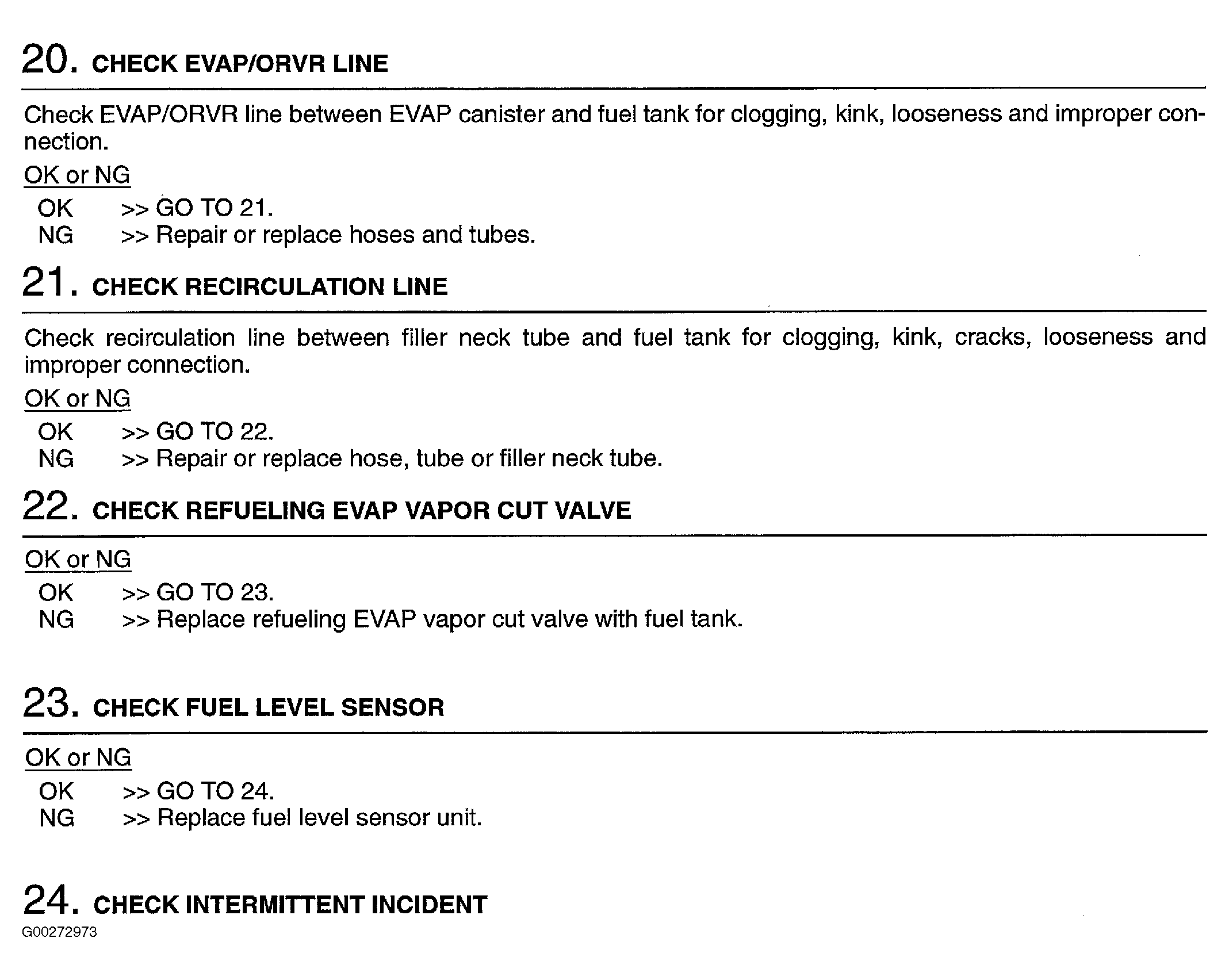

Fig 5: Diagnostic Procedure For EVAP Control System (Step 20-24)
G00272973Courtesy of NISSAN MOTOR CO., U.S.A.
