Diagnostic Procedure

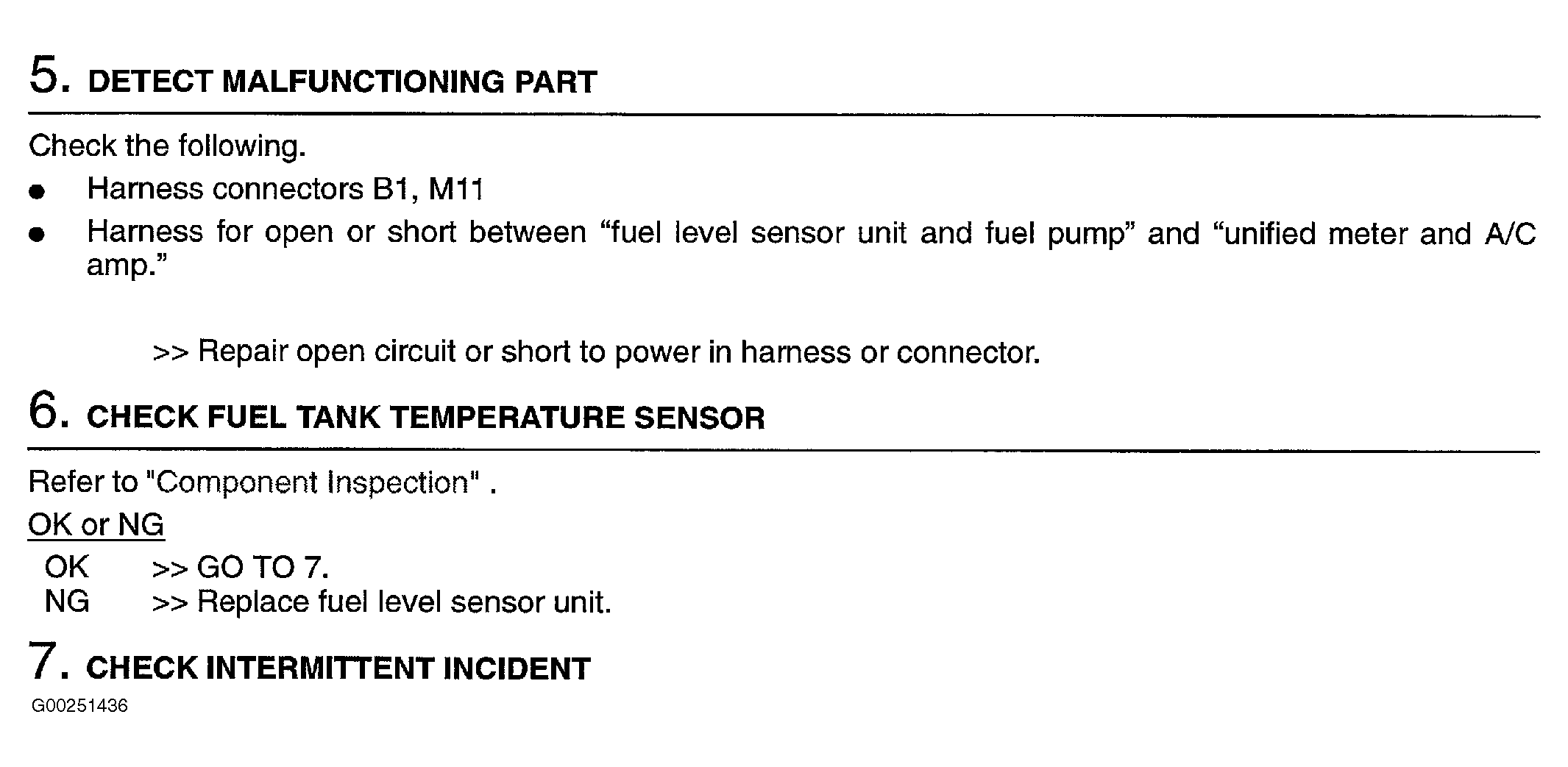

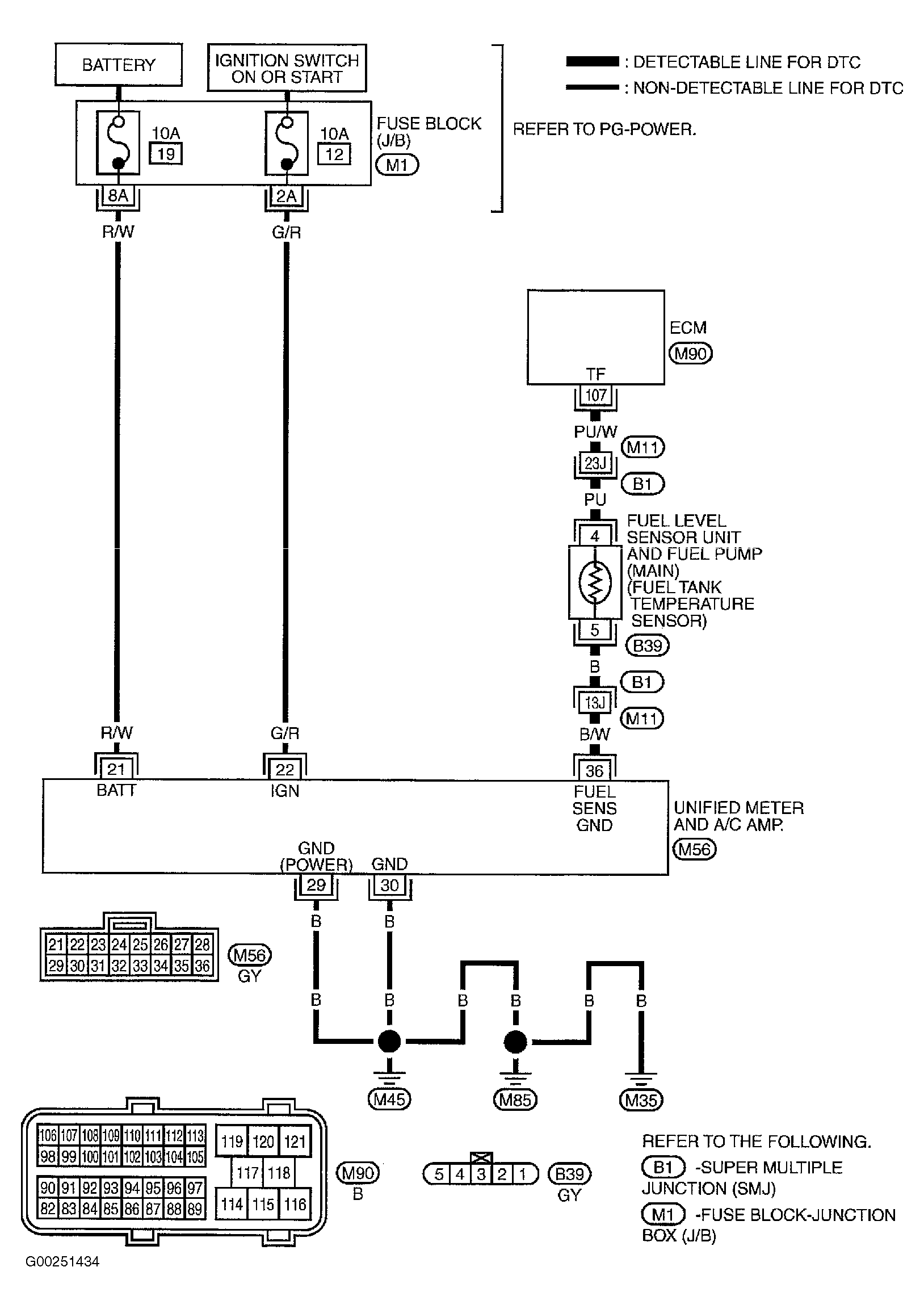

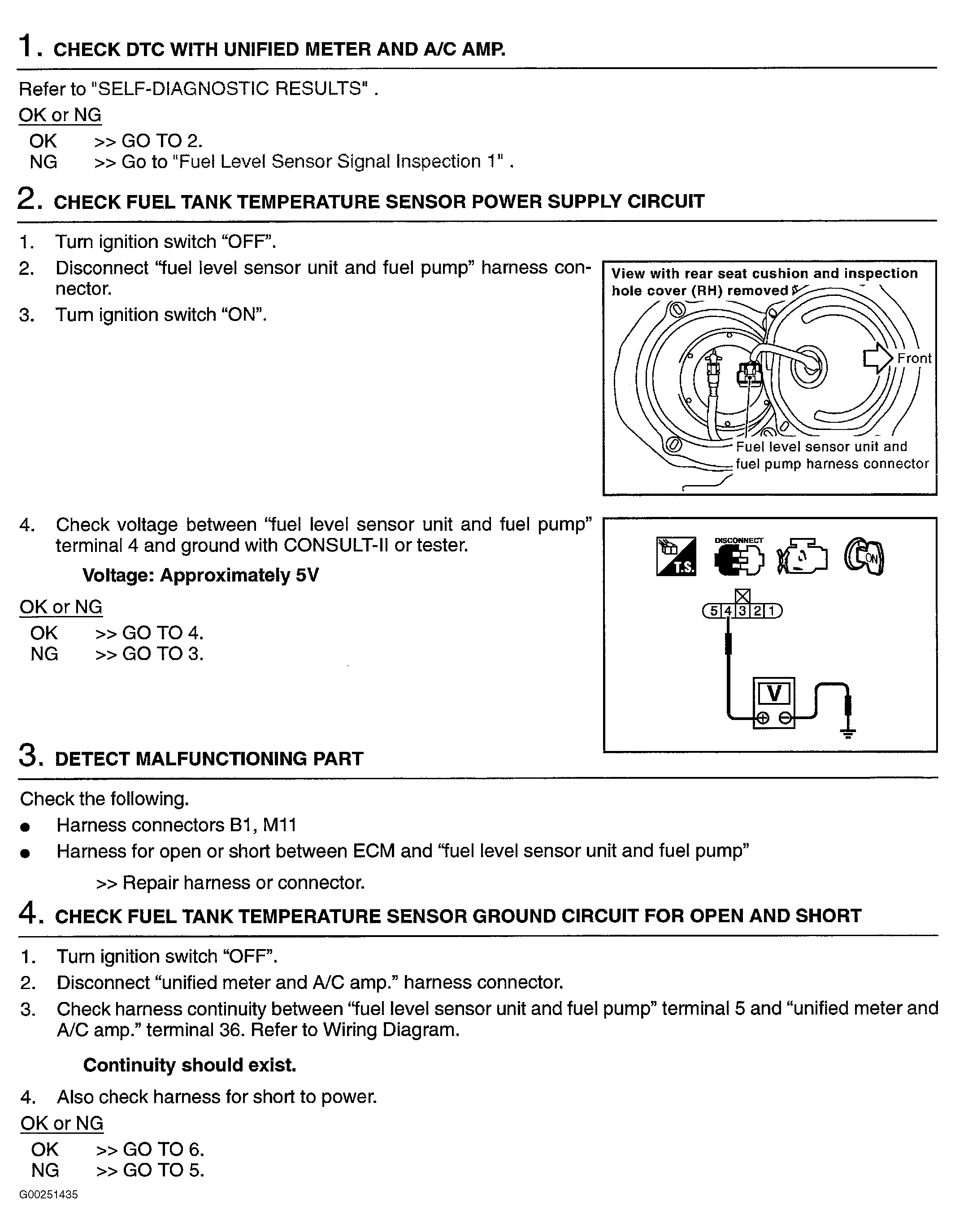

For wiring diagram, see Figure . For diagnostic procedure, see Figure and Figure .
