Consult-II Function: Notes

CONSULT-II executes the following functions by combining data reception and command transmission via the communication line from unified meter and A/C amp. Self-diagnostic results and data monitor display.

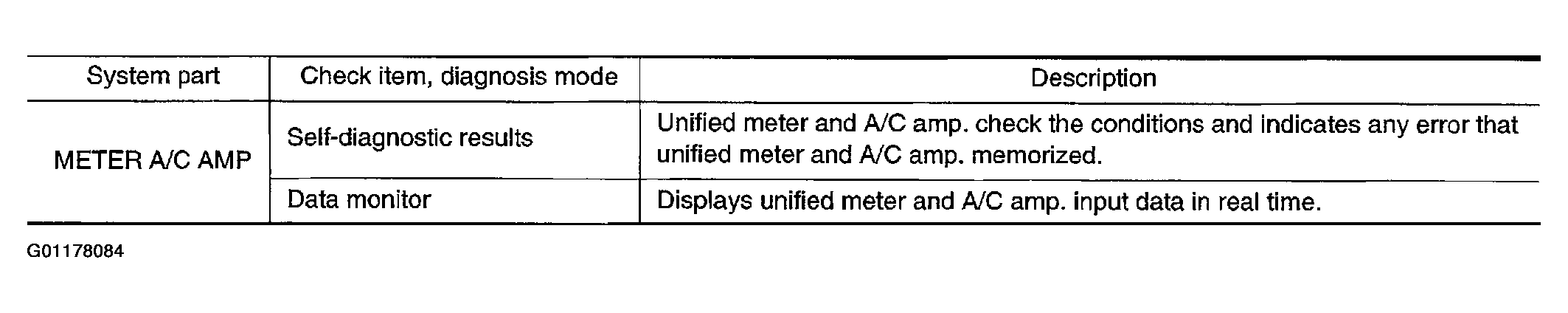

Fig 1: Identifying CONSULT-II Function

Courtesy of NISSAN MOTOR CO., U.S.A.
