Special Service Tools

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

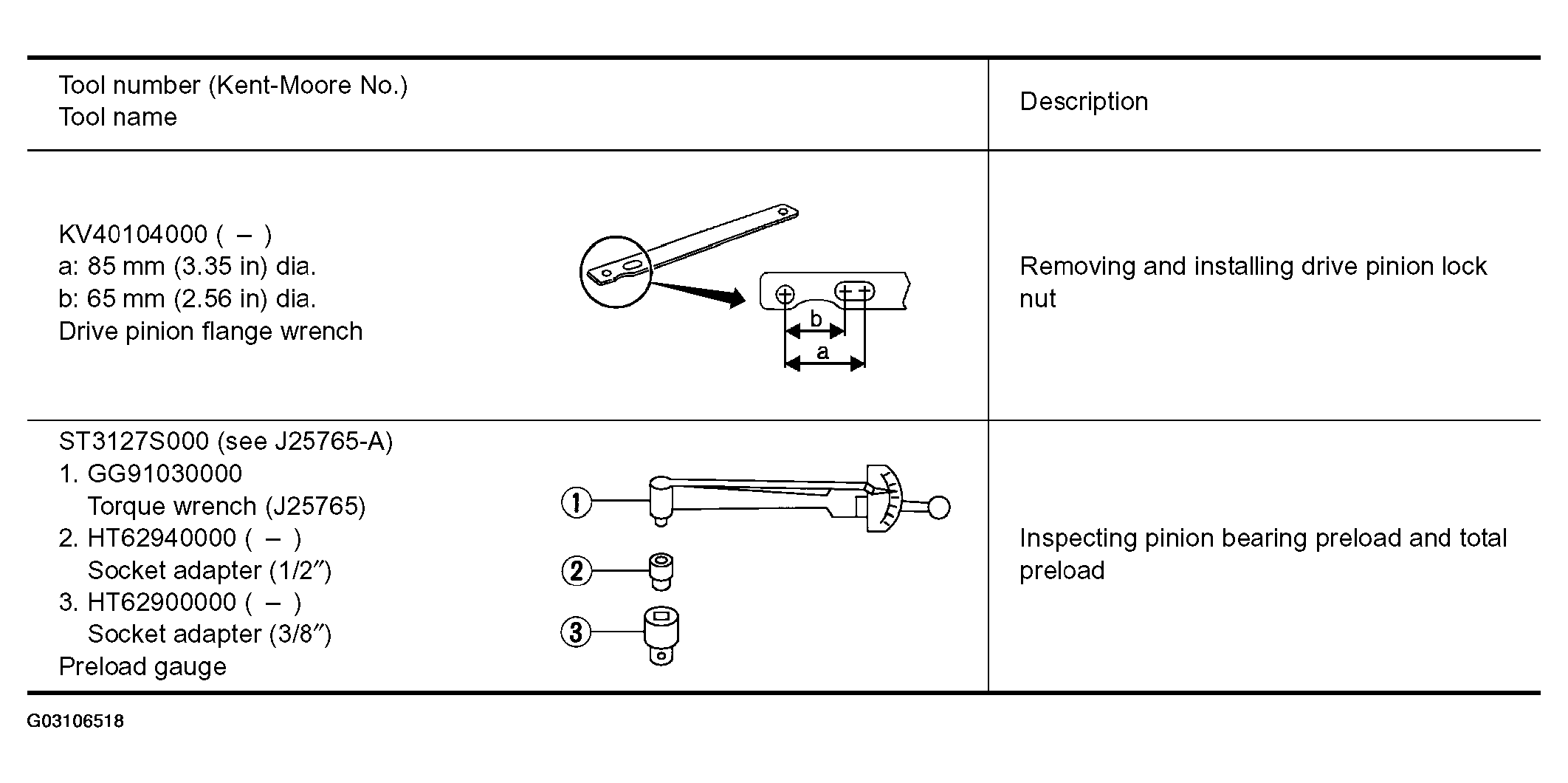

Fig 1: Special Service Tools Table (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

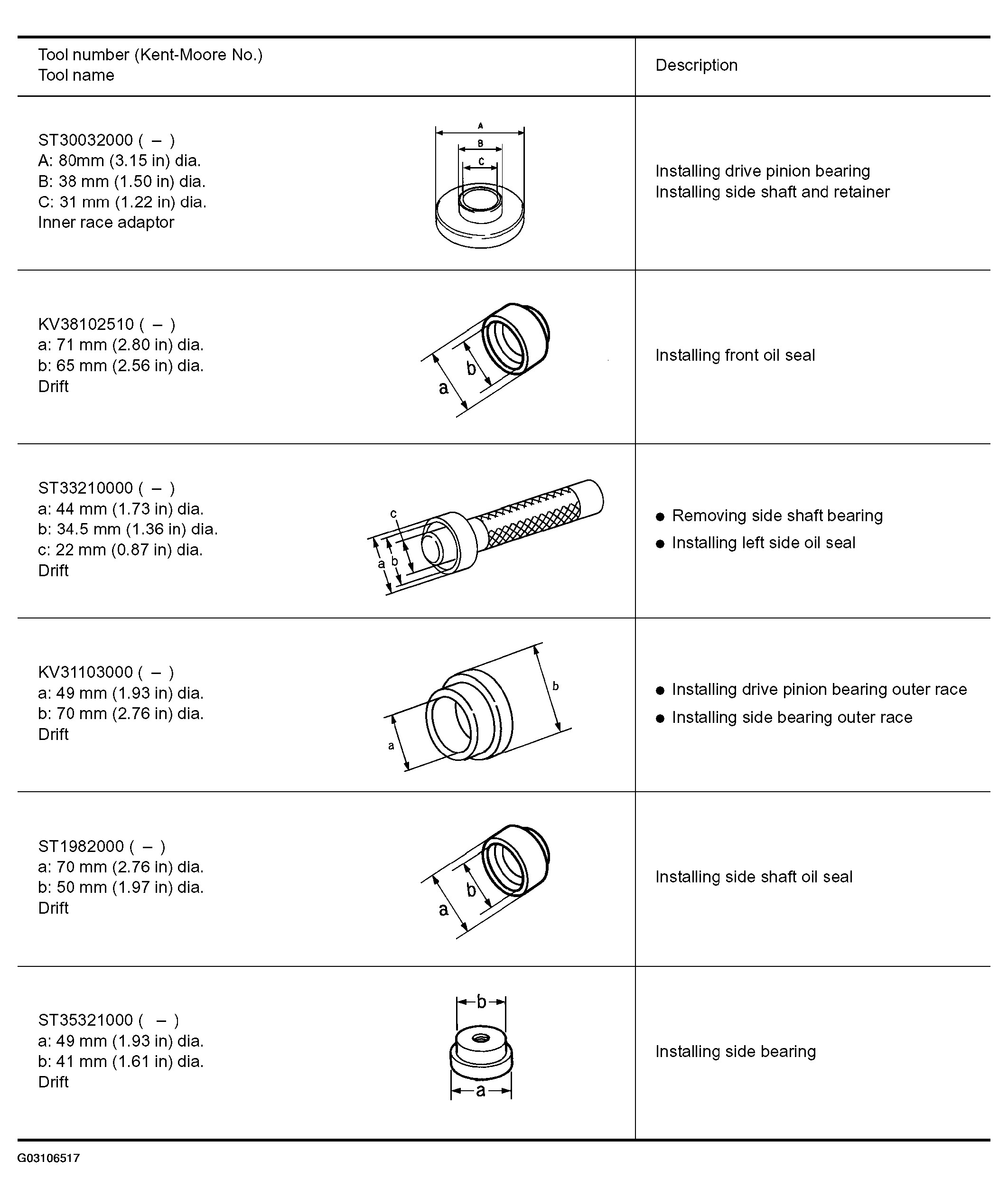

Fig 2: Special Service Tools Table (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

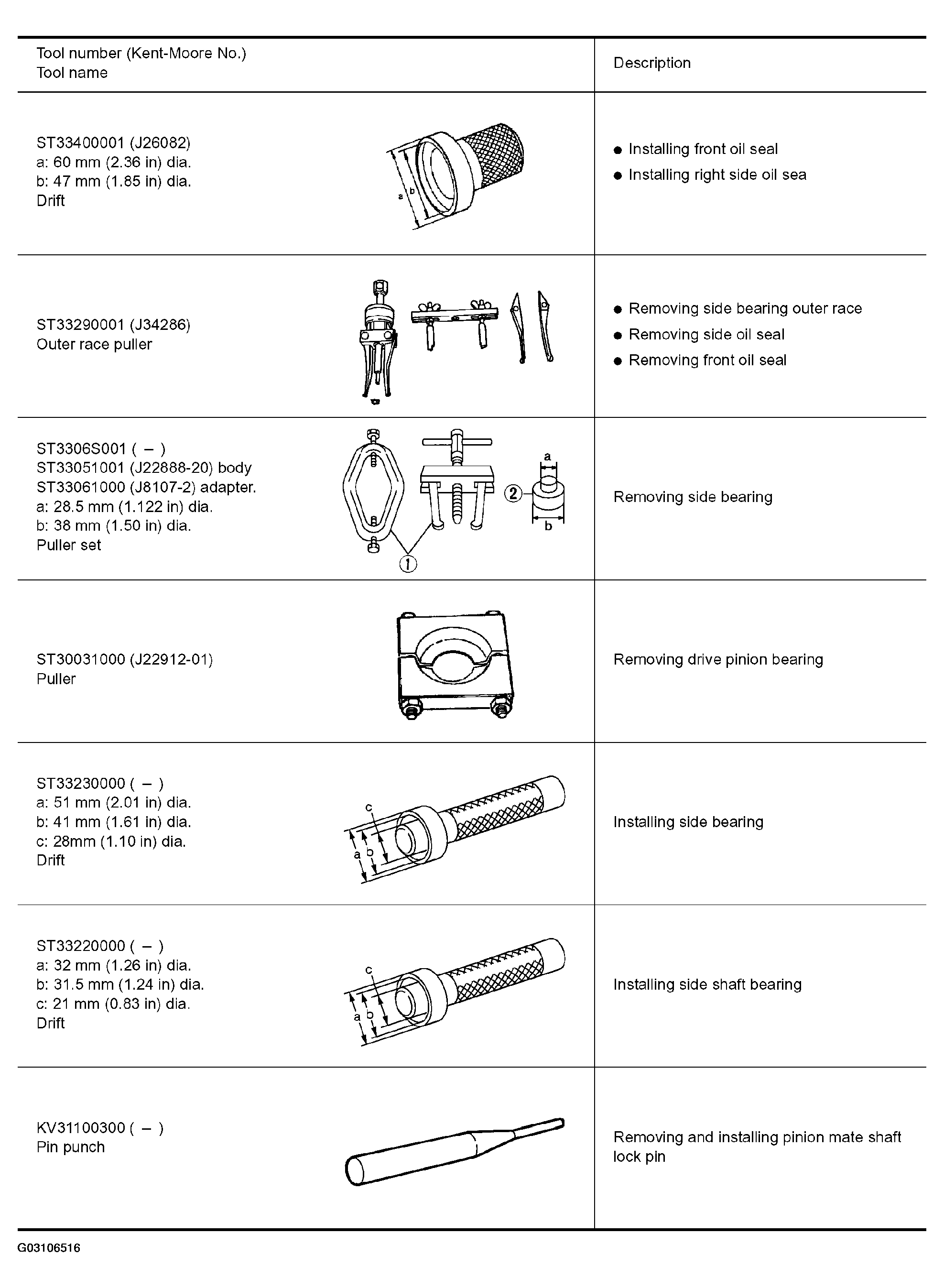

Fig 3: Special Service Tools Table (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
