Total Preload Inspection

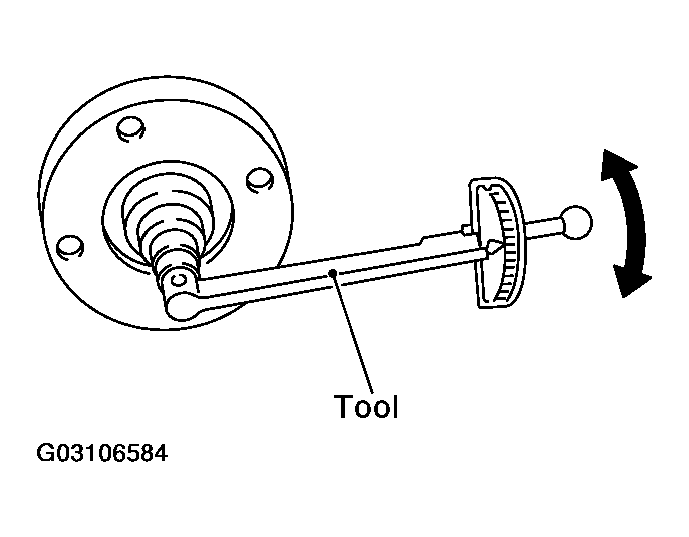

- Turn companion flange in both directions 20 times or more to set bearing rollers, then check total preload with special service tool.
Tool number: ST3127S000 (see J25765-A)
Total preload (without oil seal)
: 1.56- 2.65 N.m
(0.16 - 0.27 kg-m, 14-23 in-lb)
- If the preload value is out of standard, adjust by changing side bearing adjusting shim thickness (side retainer side).
- If preload value too large, increase the side bearing adjusting shim thickness.
- If preload value too small, decrease the side bearing adjusting shim thickness.
- If the preload value is out of standard, adjust by changing side bearing adjusting shim thickness (side retainer side).
