Wiring Diagram -DEF-

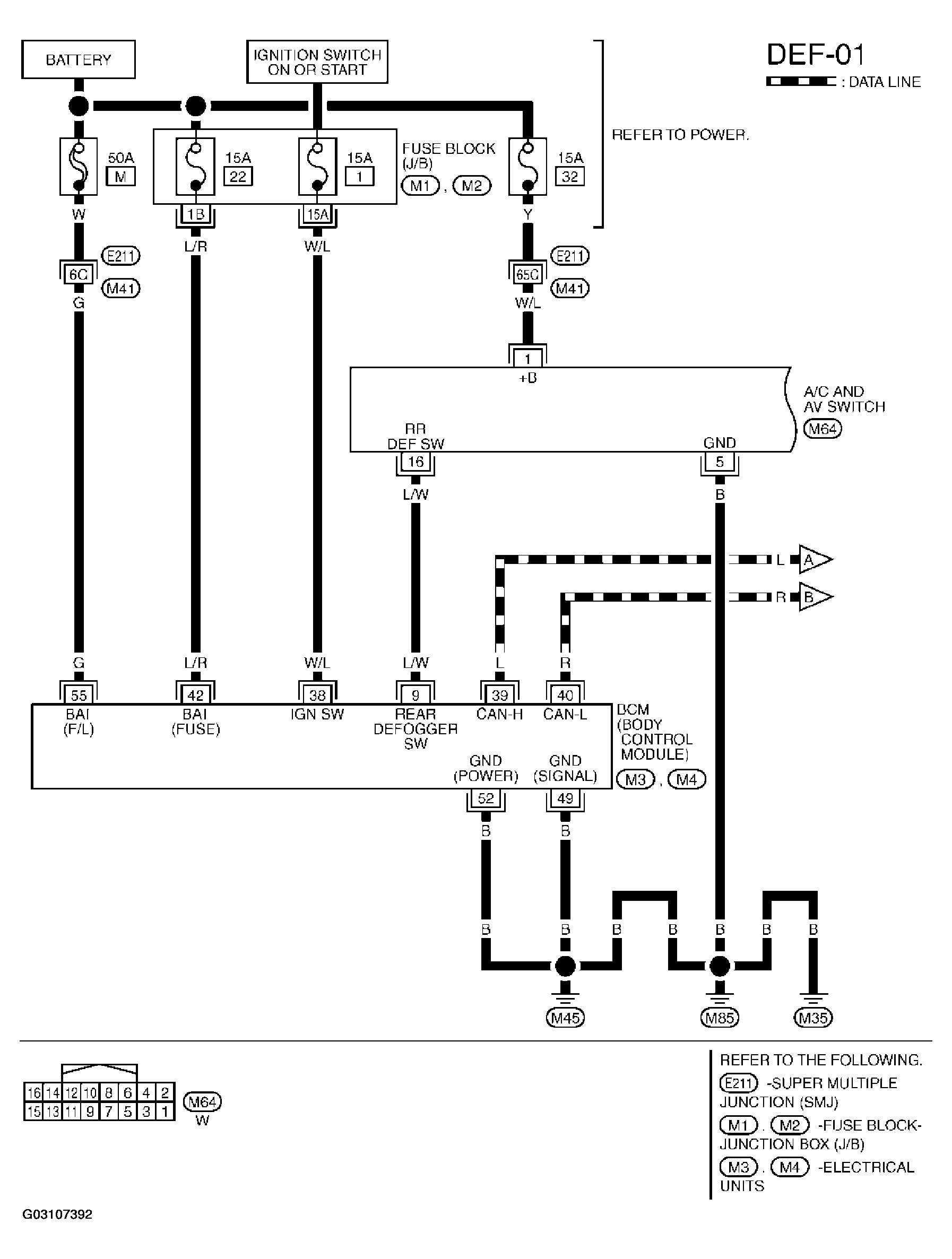

Fig 1: Wiring Diagram -DEF (1 Of 4)

G03107392

Courtesy of NISSAN MOTOR CO., U.S.A.

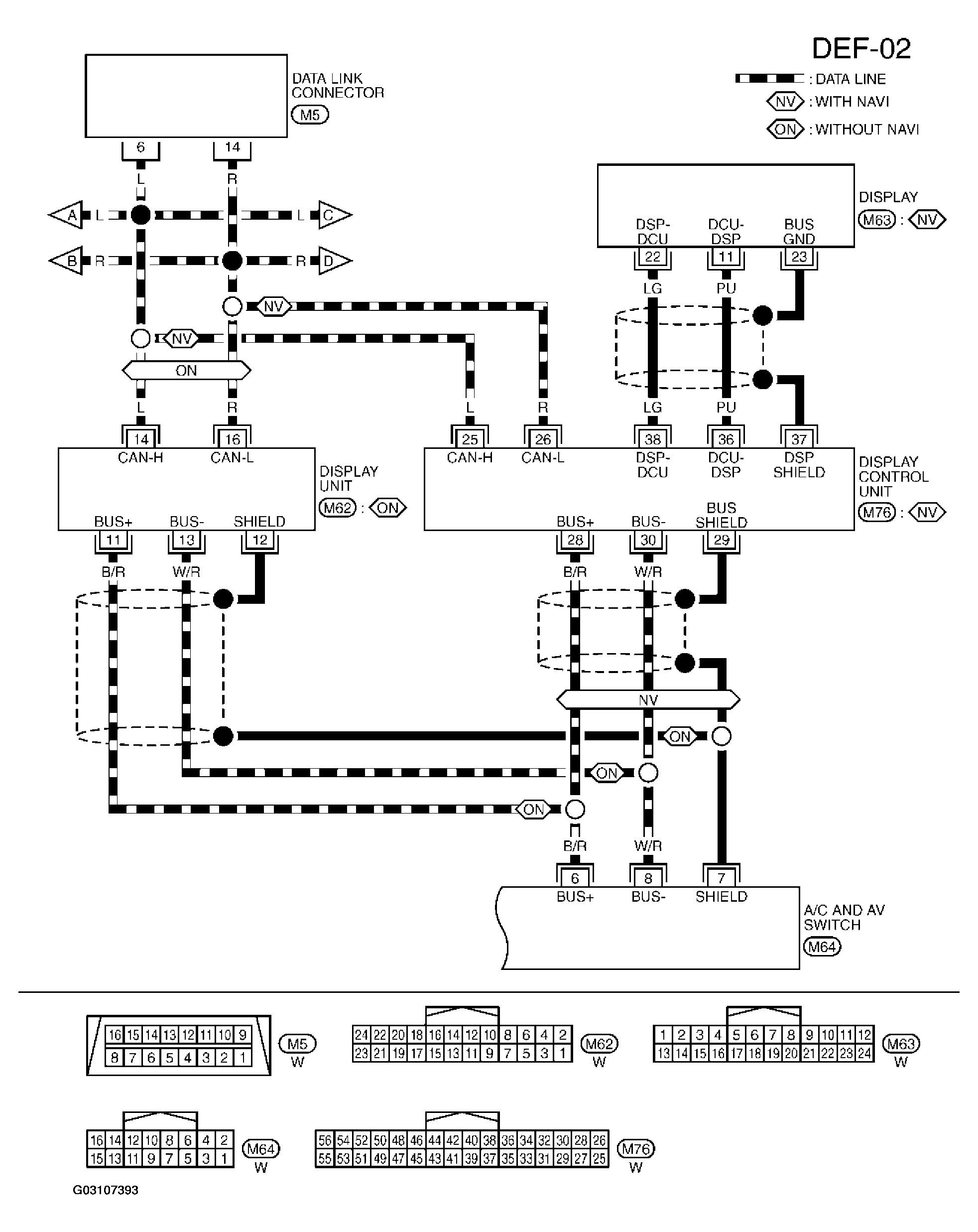

Fig 2: Wiring Diagram -DEF (2 Of 4)

G03107393

Courtesy of NISSAN MOTOR CO., U.S.A.

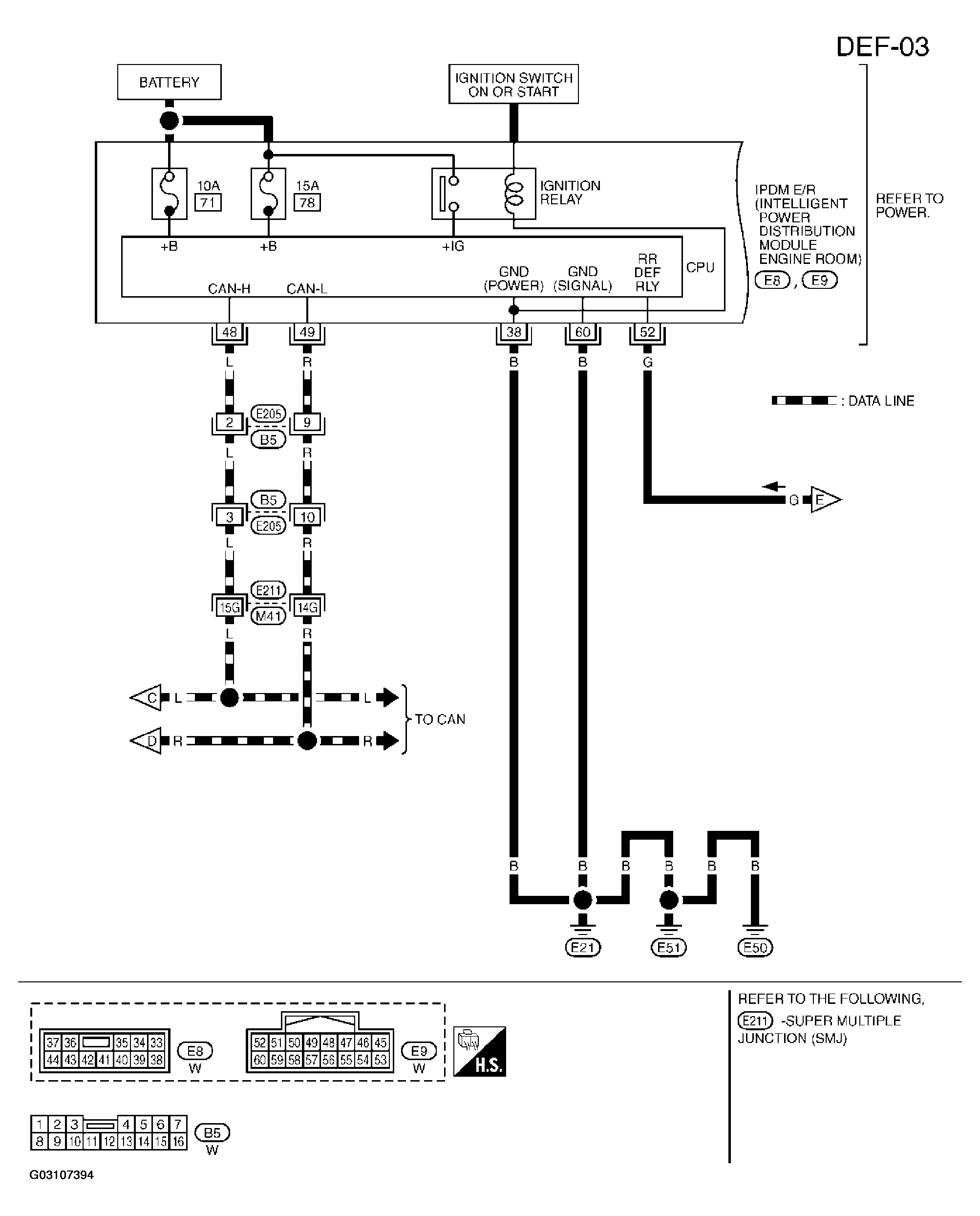

Fig 3: Wiring Diagram -DEF (3 Of 4)

G03107394

Courtesy of NISSAN MOTOR CO., U.S.A.

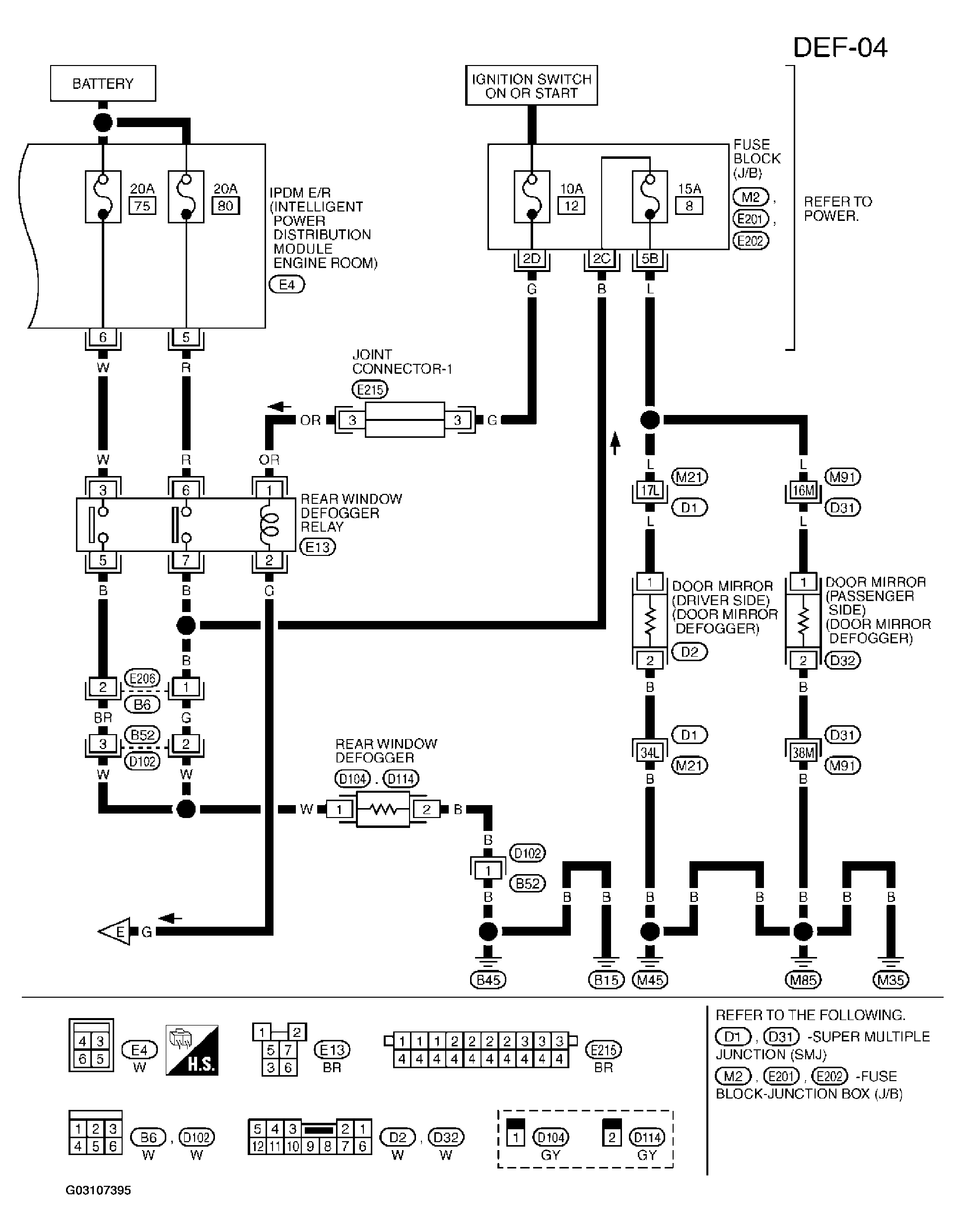

Fig 4: Wiring Diagram -DEF (4 Of 4)

G03107395

Courtesy of NISSAN MOTOR CO., U.S.A.
