Schematic (With Intelligent Key)

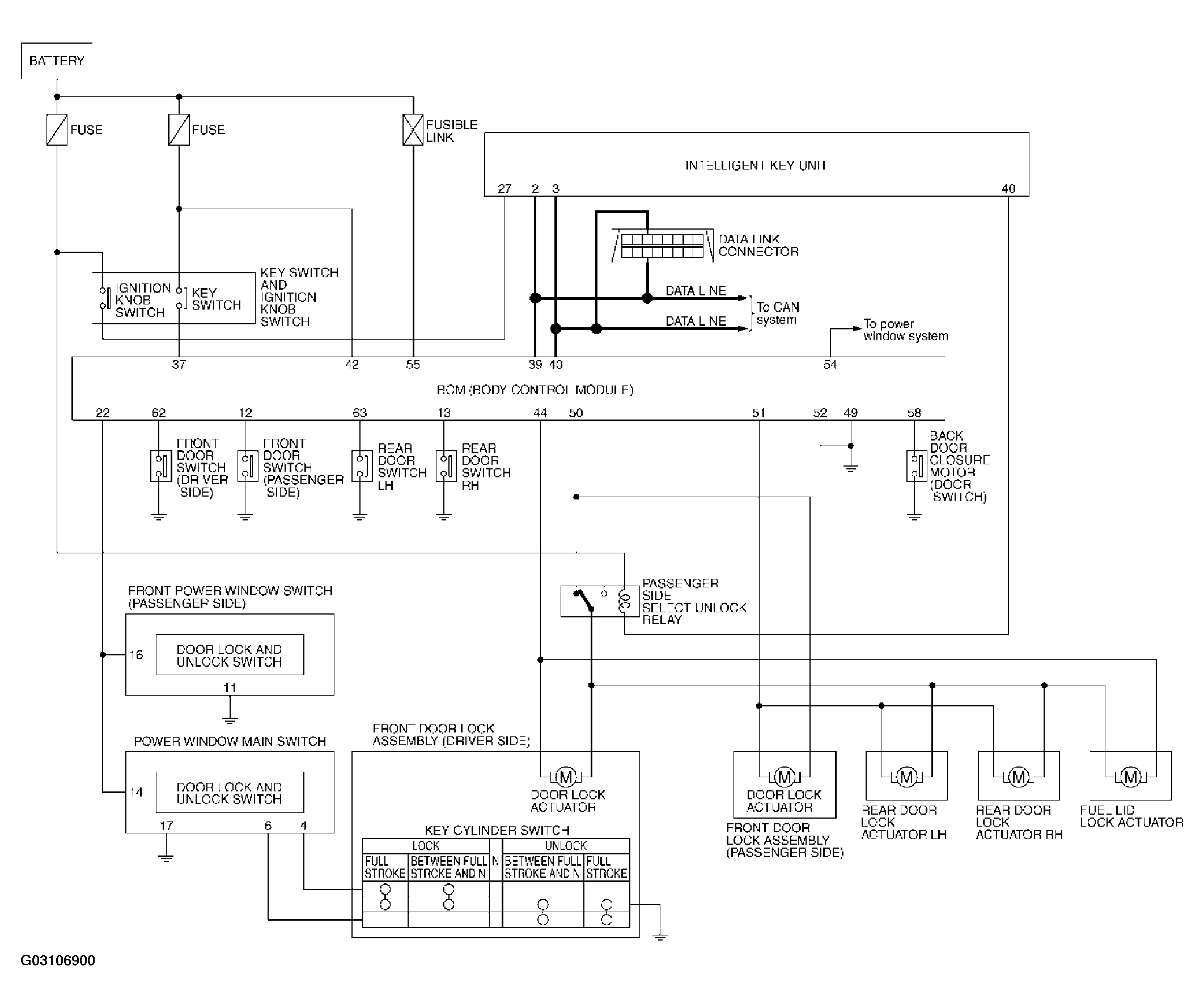

Fig 1: Power Door Lock System Schematic Diagram (With Intelligent Key)

G03106900

Courtesy of NISSAN MOTOR CO., U.S.A.
