Control Device Removal & Installation: Notes

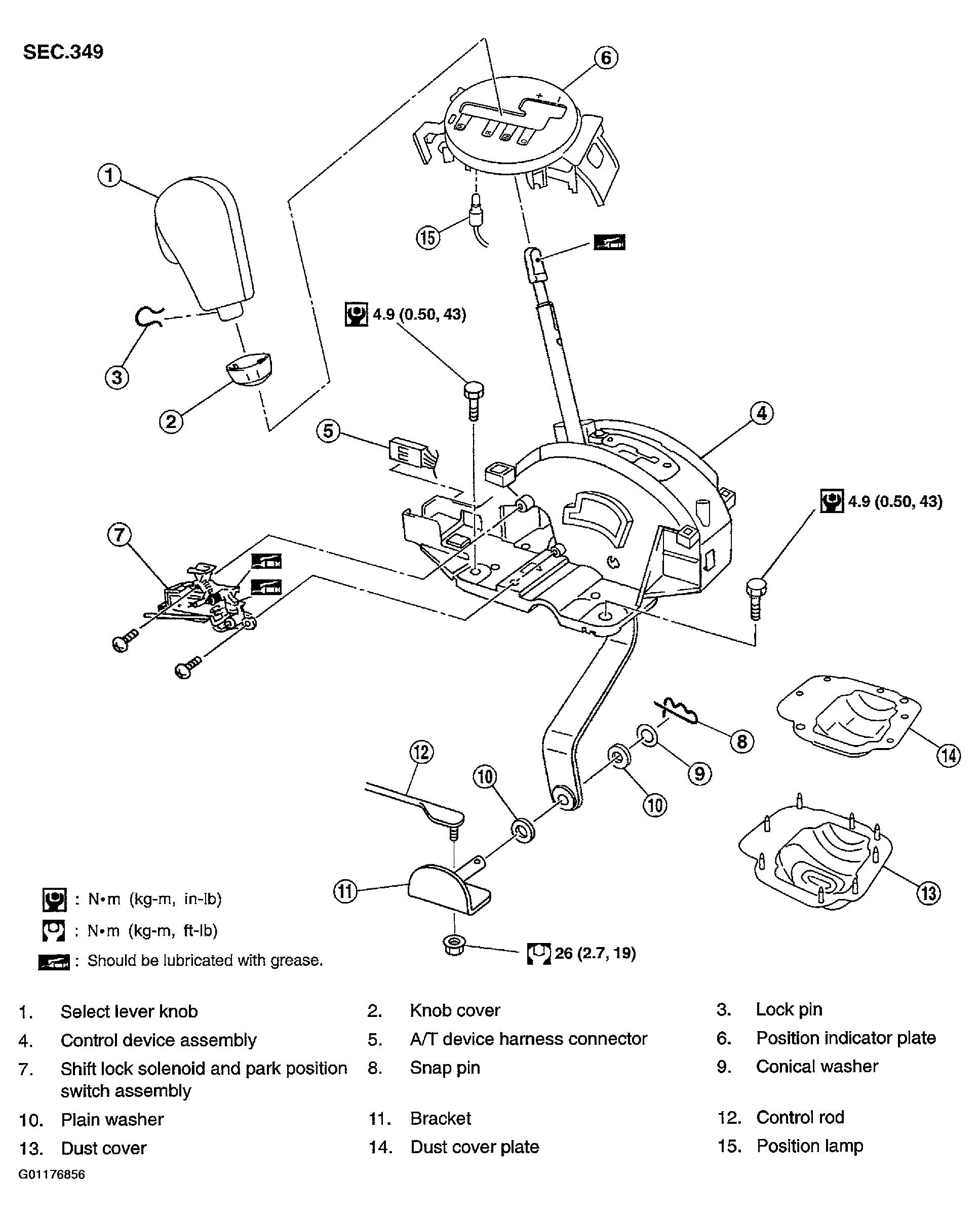

Fig 1: Exploded View Of Control Device

G01176856

Courtesy of NISSAN MOTOR CO., U.S.A.
