Consult-II Reference Value In Data Monitor Mode

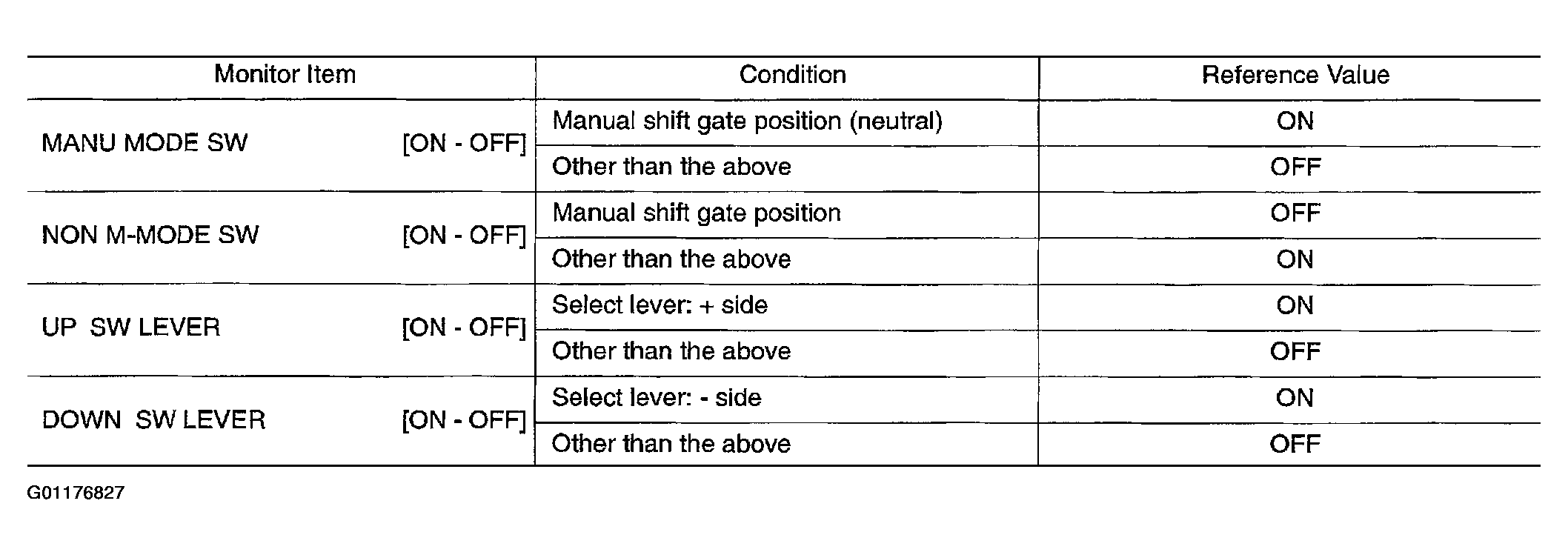

Fig 1: CONSULT-II Reference Value In Data Monitor Mode

G01176827

Courtesy of NISSAN MOTOR CO., U.S.A.
