Removal & Installation: Removal

WARNING: Read "General Precautions" before working on the fuel system. Refer to GENERAL PRECAUTIONS  .
  1. Drain fuel from fuel tank if necessary.
    • Perform work on level place.
  2. Perform steps 2 to 7 of "REMOVAL" in "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY" on main and sub fuel level sensor units. Refer to REMOVAL  .
  3. Remove the exhaust front tube, center muffler and main muffler. Refer to REMOVAL AND INSTALLATION .
  4. Remove insulator.
  5. Remove propeller shaft. Refer to REAR PROPELLER SHAFT .
  6. Remove parking brake cables. Refer to PARKING BRAKE CONTROL .
  7. Remove rear suspension assembly. Refer to REMOVAL & INSTALLATION .
  8. Remove fuel tank protector.
  9. Disconnect fuel filler hose, vent hose and EVAP hoses at fuel tank side.

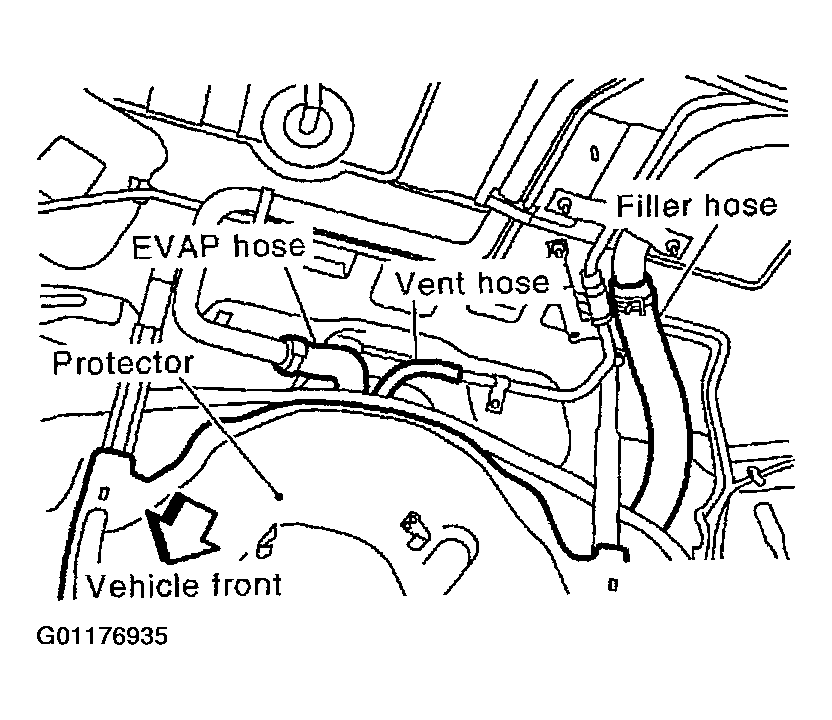

    Fig 1: Identifying Fuel Filler Hose, Vent Hose & EVAP Hoses
    G01176935Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove fuel tank mounting band bolts while supporting fuel tank.
  11. Remove the fuel tank.

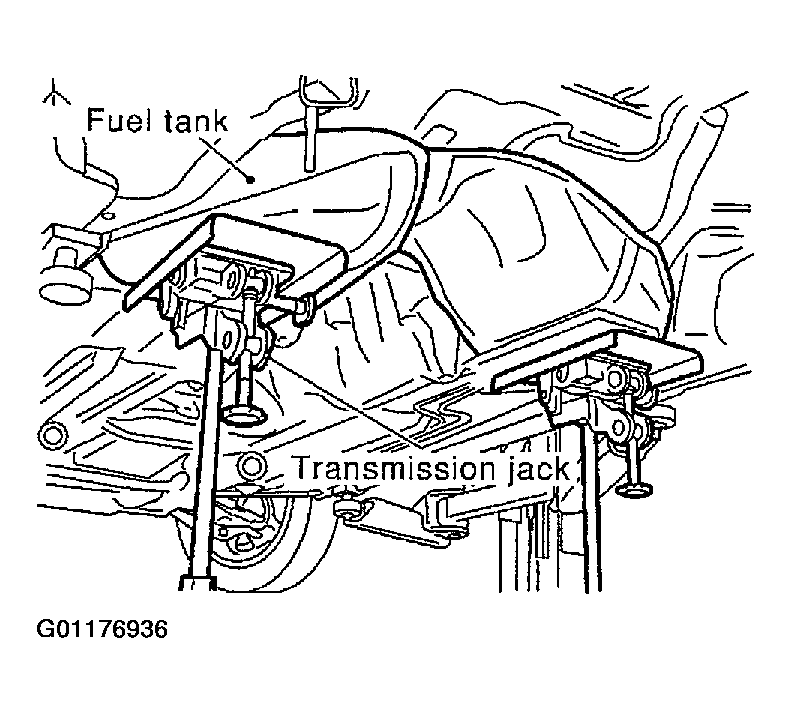

    Fig 2: Removing Fuel Tank
    G01176936Courtesy of NISSAN MOTOR CO., U.S.A.
