Repair and Diagnosis
>>
Brakes
>>
Brakes Control Systems
>>
Brake Control System
>>
Trouble Diagnosis
>>
Schematic
Trouble Diagnosis: Schematic

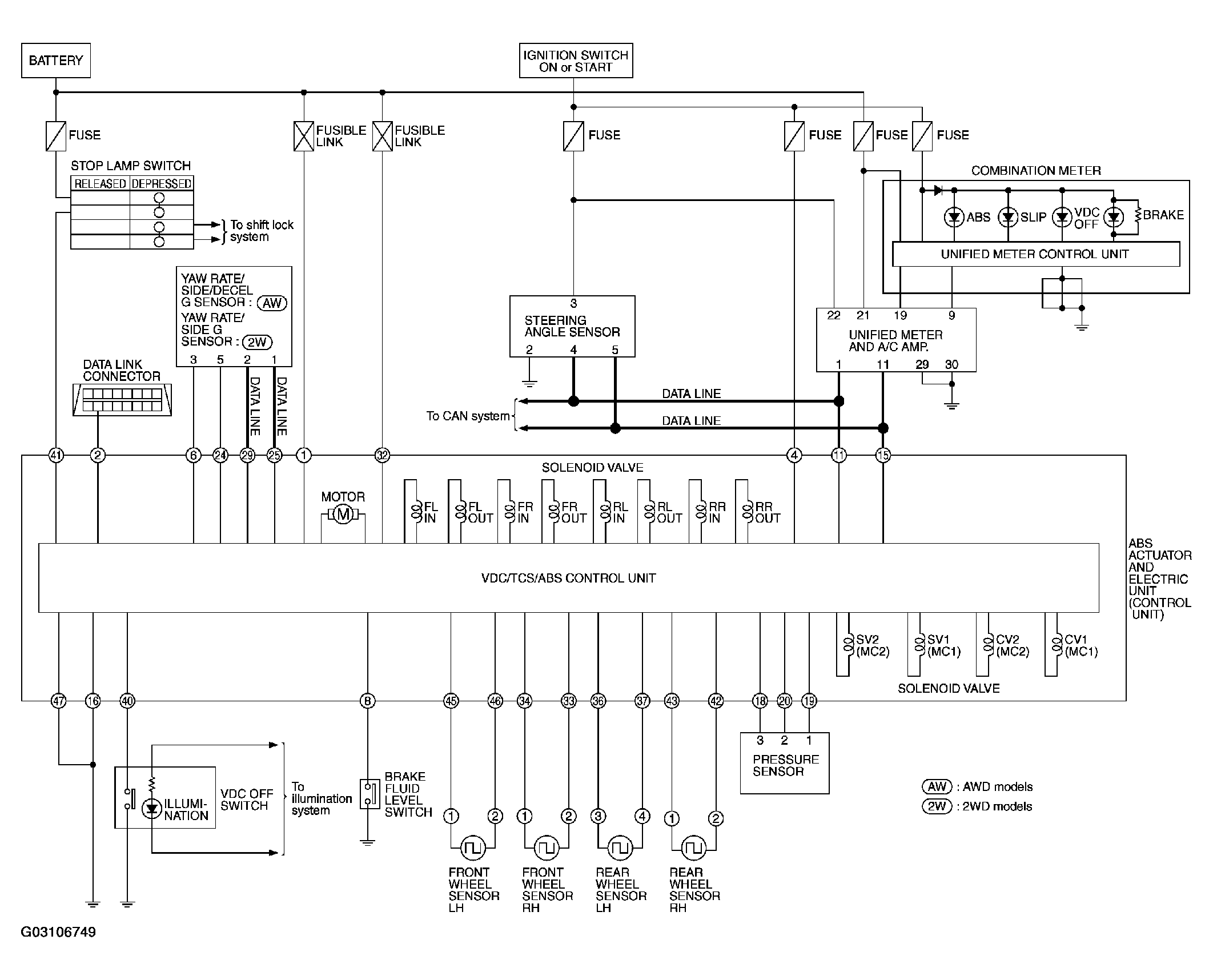

Fig 1: Brake Control System Schematic Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
