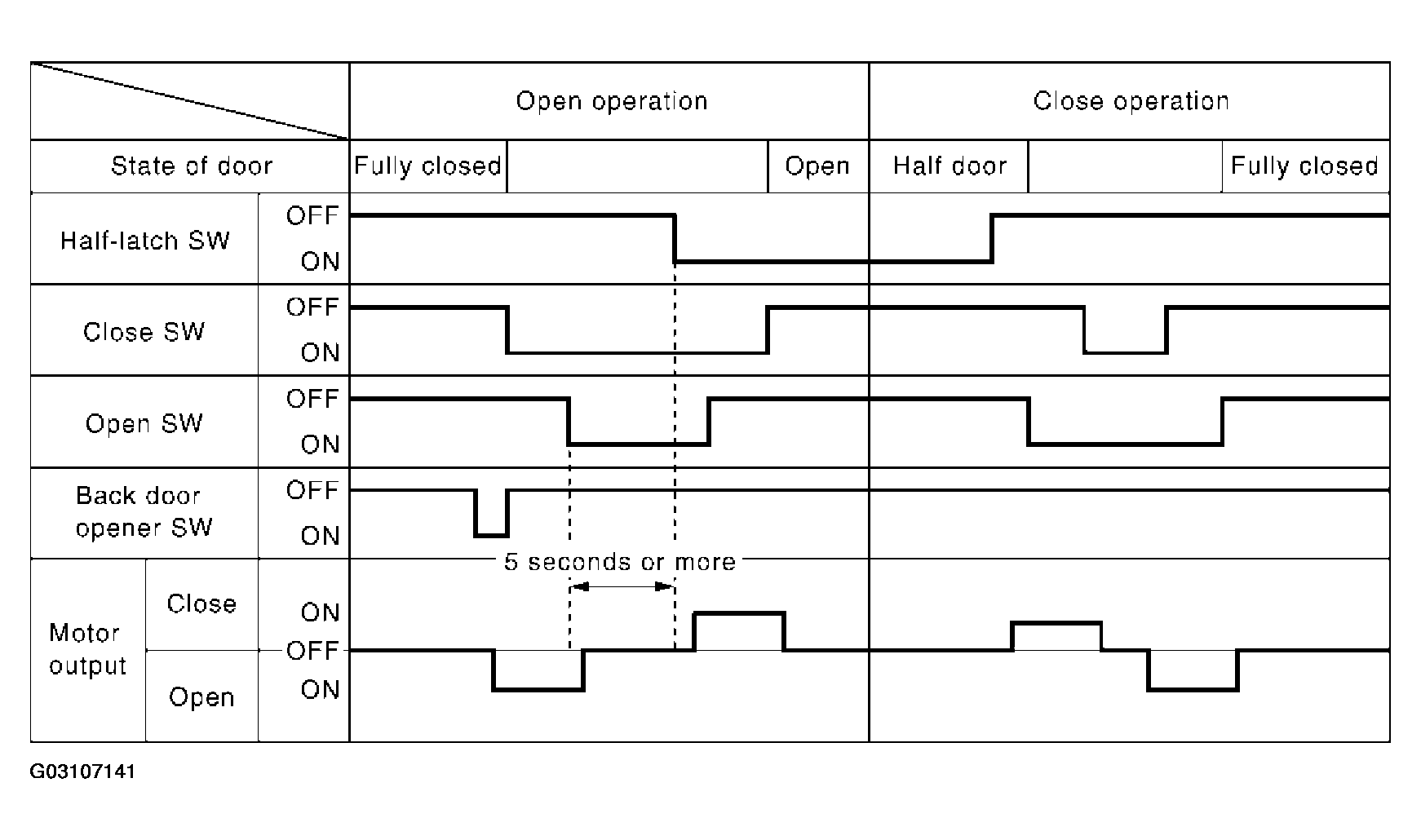

Open Operation
- When passenger side door unlock and back door shuts, back door opener switch is pushed.
- Back door closure control unit receives the signal, closure motor is operated in an open direction, and back door opens.
- Closure motor is operated in the close direction and stops at a neutral position when the following conditions consist after turning on open switch.
- When you detect the thing that back door opens by half latch switch.
- When 5 seconds past without opening back door.
Courtesy of NISSAN MOTOR CO., U.S.A.
