System Diagram
System Diagram

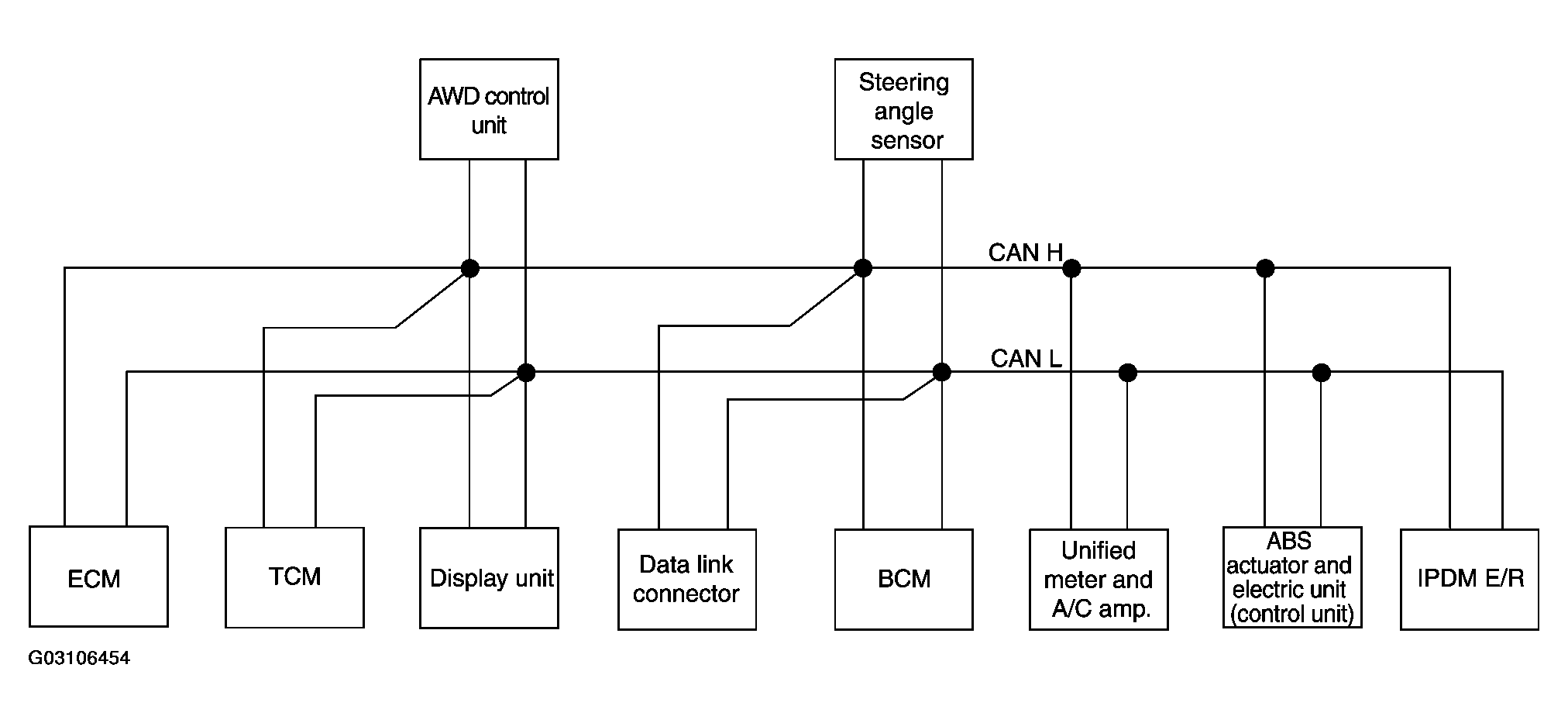

Models without automatic drive positioner
Fig 1: Identifying Can Communication Unit Without ICC (Without Automatic Drive Positioner)
Courtesy of NISSAN MOTOR CO., U.S.A.

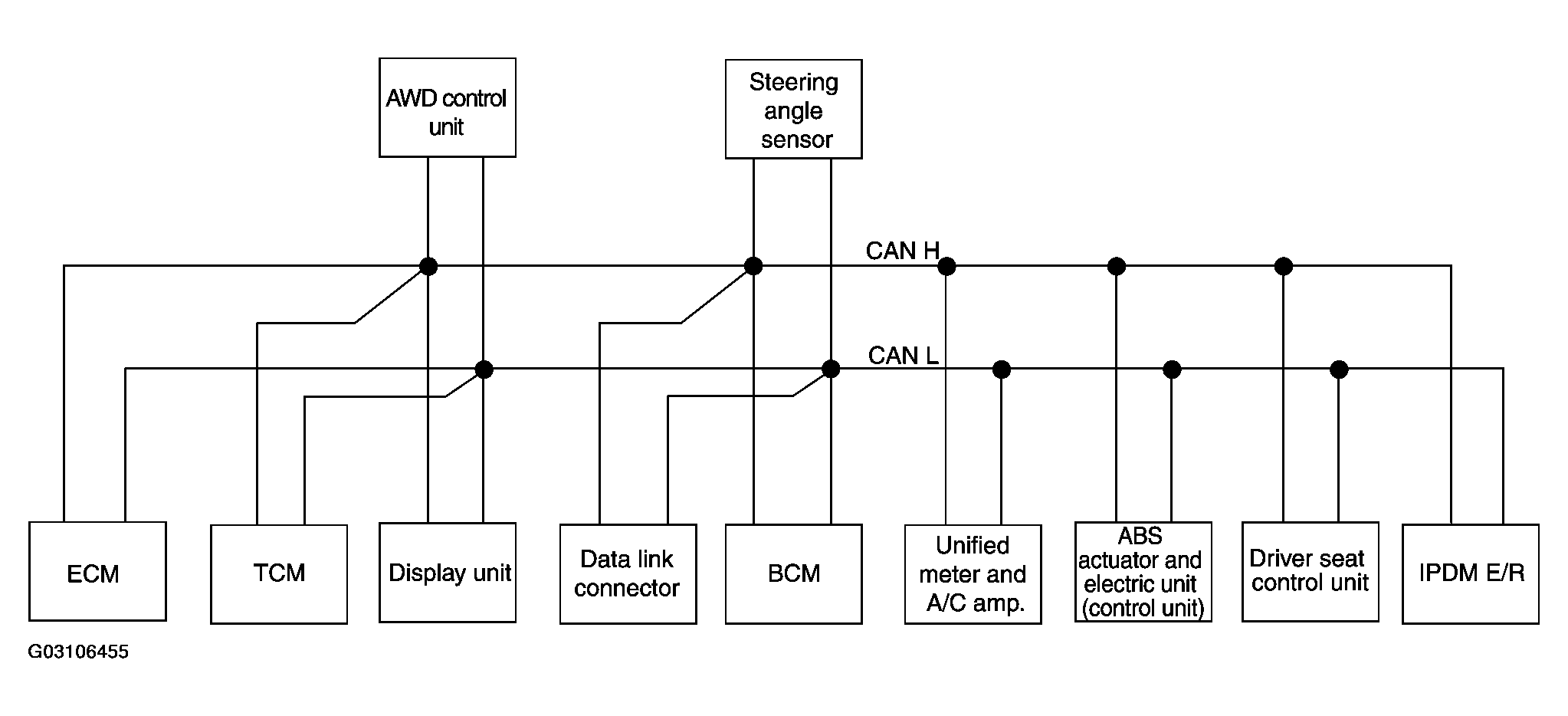

Models with automatic drive positioner
Fig 2: Identifying Can Communication Unit Without ICC (With Automatic Drive Positioner)
Courtesy of NISSAN MOTOR CO., U.S.A.
