System Diagram

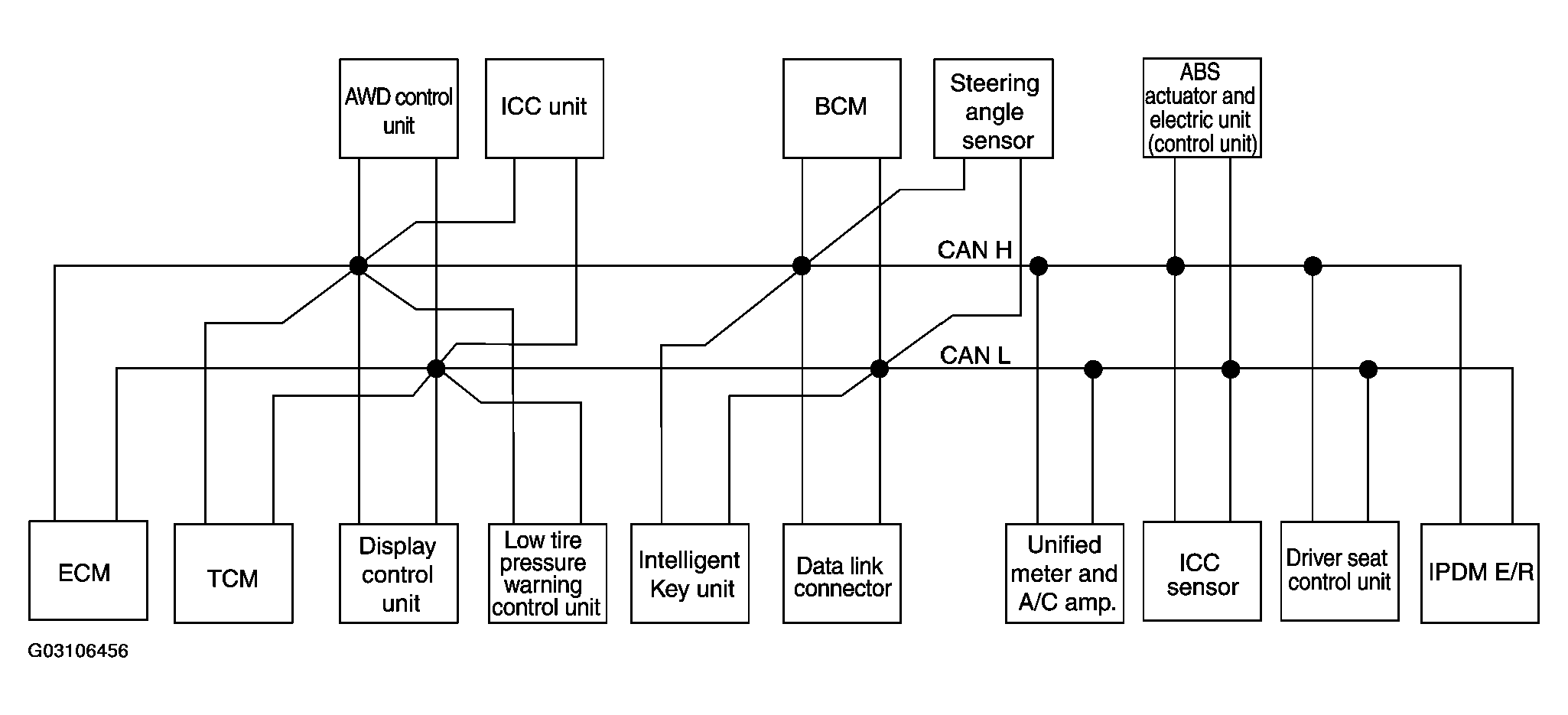

Fig 1: Identifying Can Communication Unit With ICC

G03106456

Courtesy of NISSAN MOTOR CO., U.S.A.
